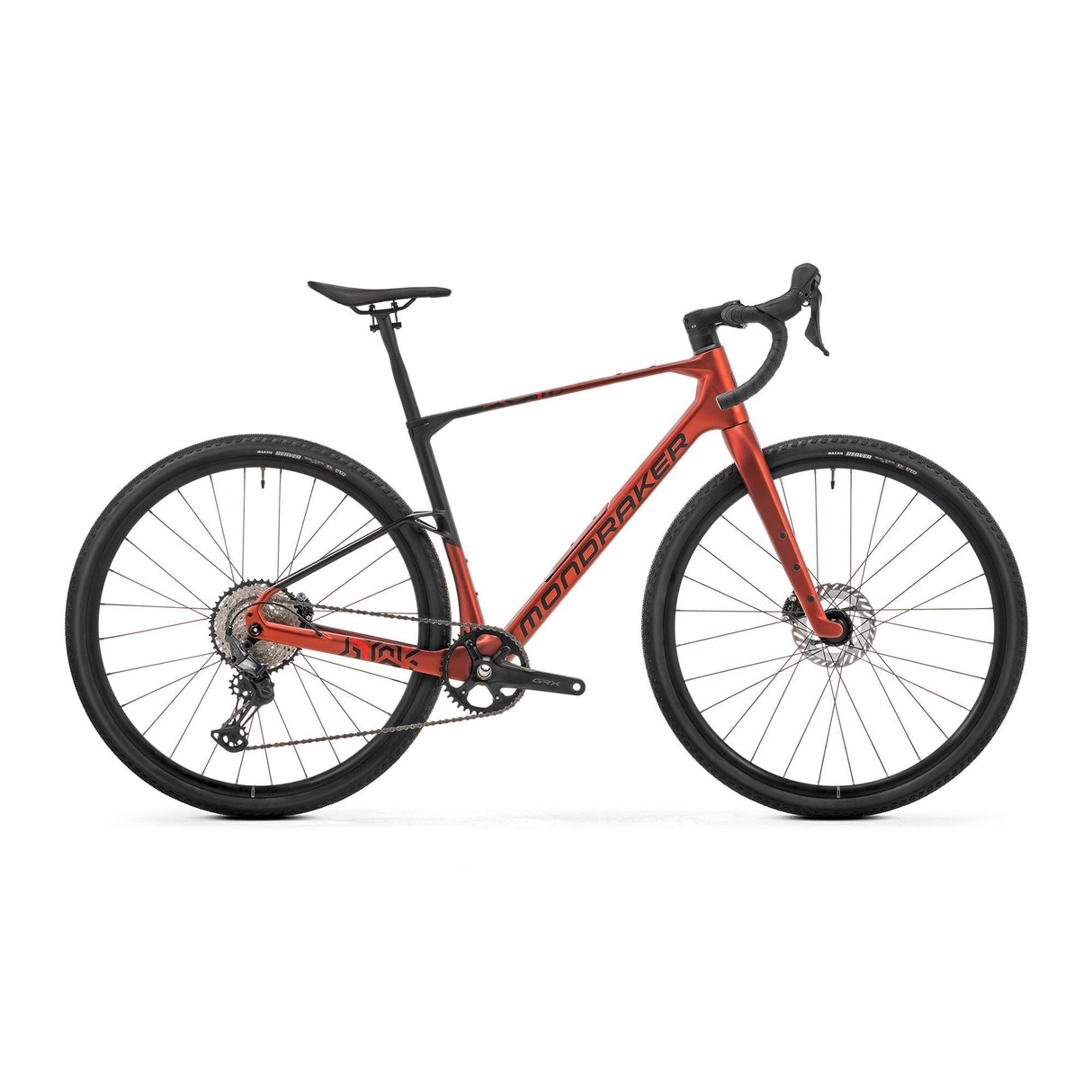

Mondraker Arid Carbon Bike


$3,29900

Color
Size

Coming soon! Backorder this item and one of our sales associates will contact you within 24 hours confirming its shipping date.

Mondraker  |  SKU: 010.25US140 | Option: Earth Red, S

Questions about this product?

What size do I need?

Get a digital fit assessment

Schedule a Bike Fit in Walnut Creek, CA.

Schedule a Bike Fit in Brooklyn, NY. Please call 718-636-5242


* Product image may vary. Refer to the description for accurate details.

Mondraker Arid Carbon Bike Info

The Mondraker Arid Carbon is built for riders who expect high-speed performance across gravel, singletrack, and everything in between. Engineered with Mondraker’s Stealth Air Carbon construction, the frame delivers a unique balance of stiffness and compliance, making it both responsive under power and forgiving over rough terrain. Every tube and junction is tuned for specific performance goals, from the stiff, efficient bottom bracket and headtube to the vertically compliant rear triangle. The result is a frame that accelerates quickly yet maintains grip and comfort when the terrain turns demanding. Just as important, it meets the same ISO standards as Mondraker’s mountain bikes, ensuring durability across extreme environments.

Designed in one of Europe’s most arid and unforgiving landscapes, the Arid is inspired by terrain that demands more from both rider and machine. That environment shaped not only the bike’s geometry but its utility. With internal frame storage introduced for the first time on a Mondraker, the ‘Carry-On’ system offers watertight, dustproof access to tools and ride essentials without the need for extra bags. Paired with up to six water bottle mounting points across the frame and fork, the Arid adapts easily to racing, adventure, or long solo missions. Mounting locations on the downtube, top tube, and fork legs give riders flexible options to configure their loadout.

The Mondracker Arid Carbon is packed with high level components but includes some concessions to make it more affordable. This version features a Shimano GRX groupset for efficient 12-speed gravel specific shifting at a great price. ONOFF components finish the build, including the handlebar, seatpost, stem, and more. The attention to detail also extends to the new UDH derailleur hanger and HHG internal cable routing for a clean aesthetic and reliable performance.

Available in five sizes from S through XL, including a new M/L option, the Arid uses Mondraker’s Forward Geometry to give more riders a tailored fit. Geometry across the range is tuned for a balanced feel that is stable on descents, nimble through technical sections, and aggressive enough for race-day efforts. With tire clearance up to 50mm, the Arid can be set up for more demanding terrain without sacrificing speed or handling. Every element of the Mondraker Arid is designed for riders who take gravel seriously but don’t want to be boxed into one style of riding.

Mondraker Arid Carbon Bike - Specifications

Frame Material:
Arid Stealth Air Carbon
Fork:
Stealth Air Carbon tapered steerer tube
Headset:
Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing
Seatpost:
Onoff S9 Carbon 0-R / 272.mm / 400mm length
Rear Derailleur:
Shimano GRX RX-822
Crankset:
Shimano GRX RX-610
Chainrings:
40t
Bottom Bracket:
Token T47 BSA sealed bearings / 85.5mm
Brake Calipers:
Shimano GRX RX-400 Hydraulic Disc
Rotors:
Shimano CL-800 Centerlock 160mm
Shifters / Levers:
Shimano GRX RX-610
Cassette:
Shimano SLX M7100 12-speed 10-45
Chain:
Shimano M7100 12-speed
Wheel - Front:
Mavic Allroad Disc / Hookless / Tubeless / 25mm IW
Wheel - Rear:
Mavic Allroad Disc / Hookless / Tubeless / 25mm IW
Stem:
Onoff Semi-Integrated / 31.8mm clamp / -7º
Handlebar:
OnOff S3 GR / 16º flare
Saddle:
Fizik Terra Argo X5 140mm
Tires:
Maxxis Reaver / Tubeless ready / 700x45
Bar Tape:
OnOff HEX Bartape
Pedals:
Not Included

*Specifications are subject to change.

Mondraker Arid Carbon Bike Geometry

Mondraker Arid Carbon Bike Geometry
Size:
S
M
ML
L
XL
B. Seat Tube (c-t)
410
450
480
510
540
C. Top Tube Length
520
550
580
600
630
D. Head Tube Length
100
125
145
175
200
E. Chain Stay Length
425
425
425
425
425
F. BB Drop
75
75
75
75
75
G. Seat Tube Angle
73
73
73
73
73
H. Head Tube Angle
70
70
70
70
70
J. Wheel Size
700c
700c
700c
700c
700c
K. Stack
548
572
591
619
642
L. Reach
363
386
411
423
446
Stem Length
60mm
70mm
70mm
80mm
90mm
Bar Width
44cm
44cm
46cm
46cm
46cm
M. Crank Length
170mm
170mm
172.5mm
172.5mm
175mm

Mondraker Arid Carbon Bike Video
