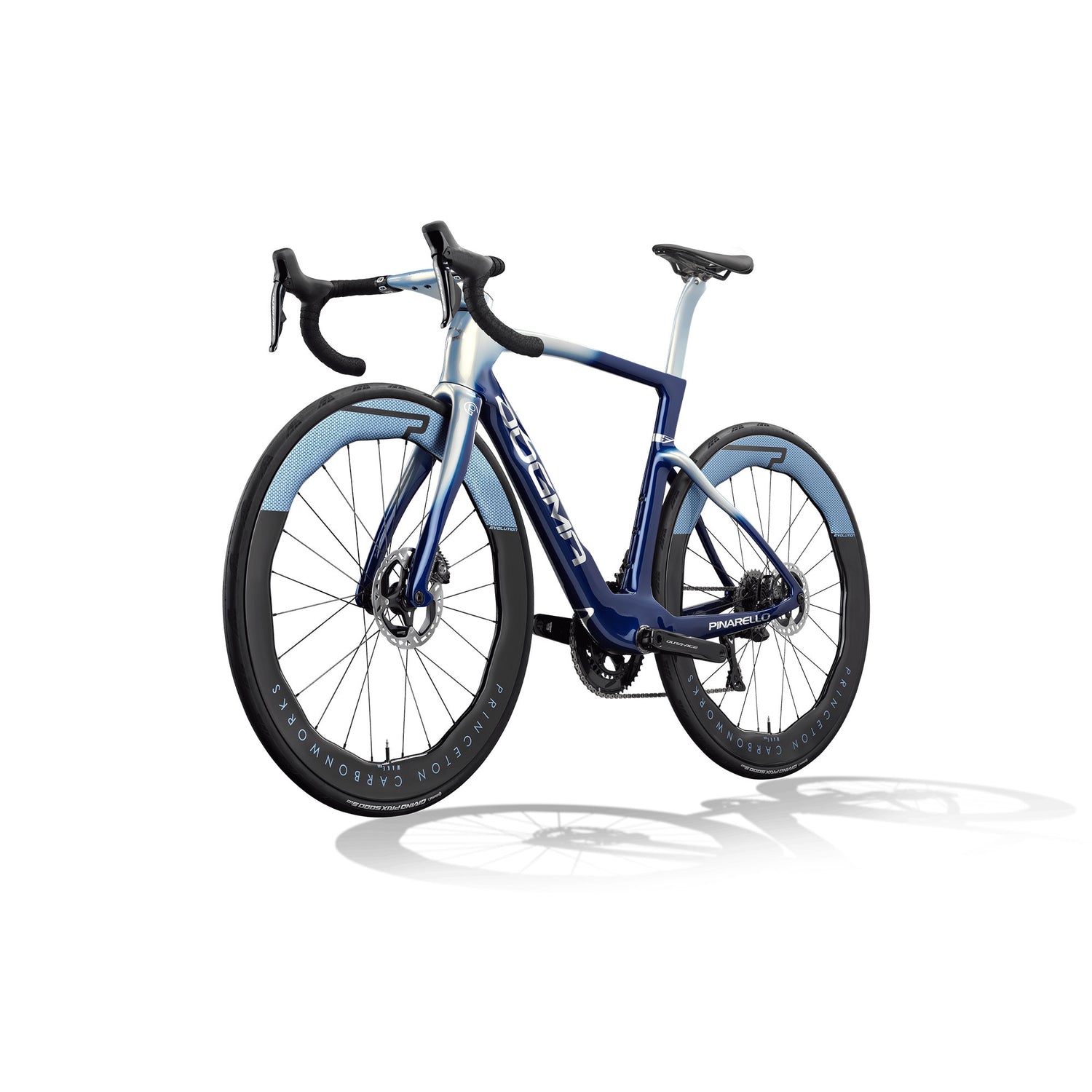

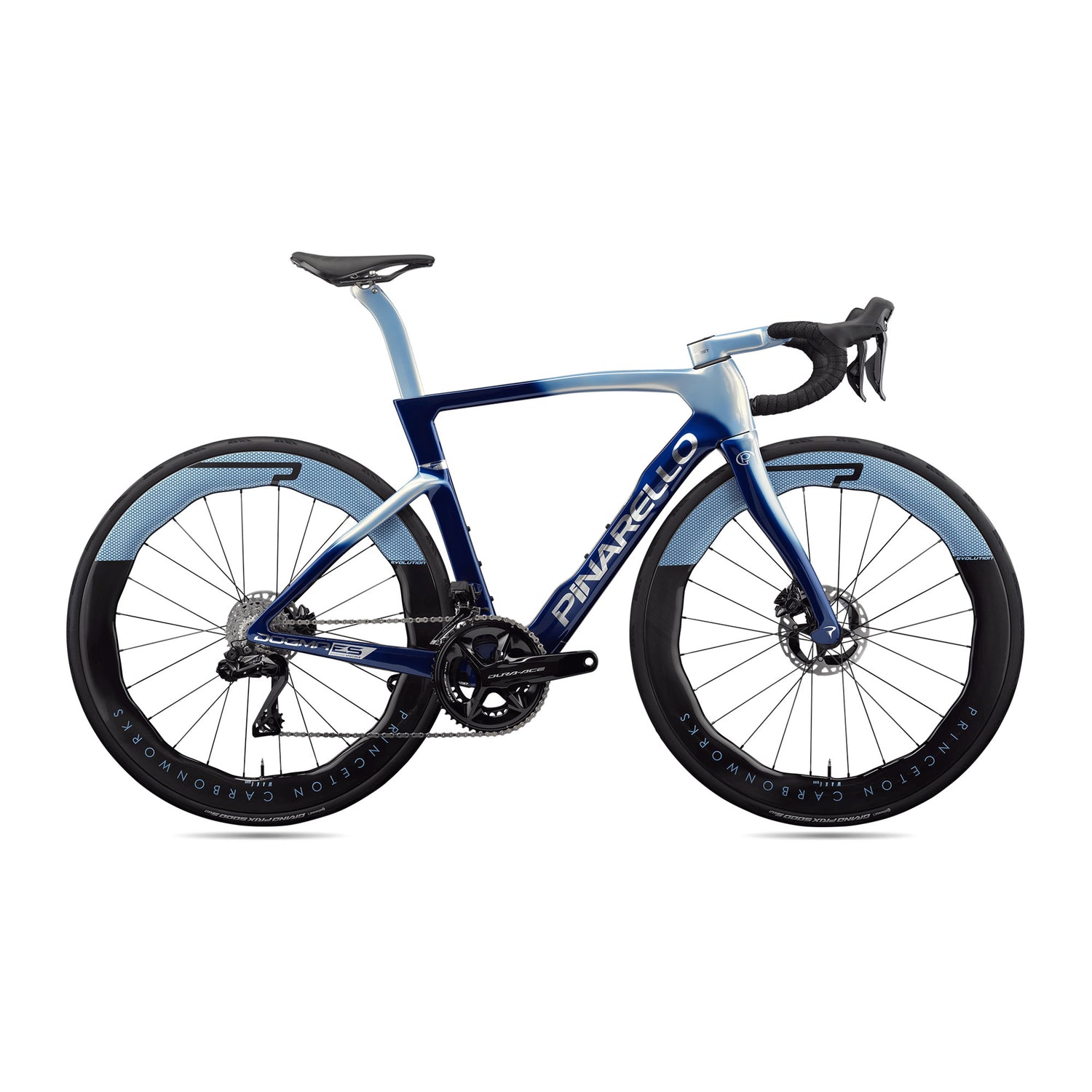

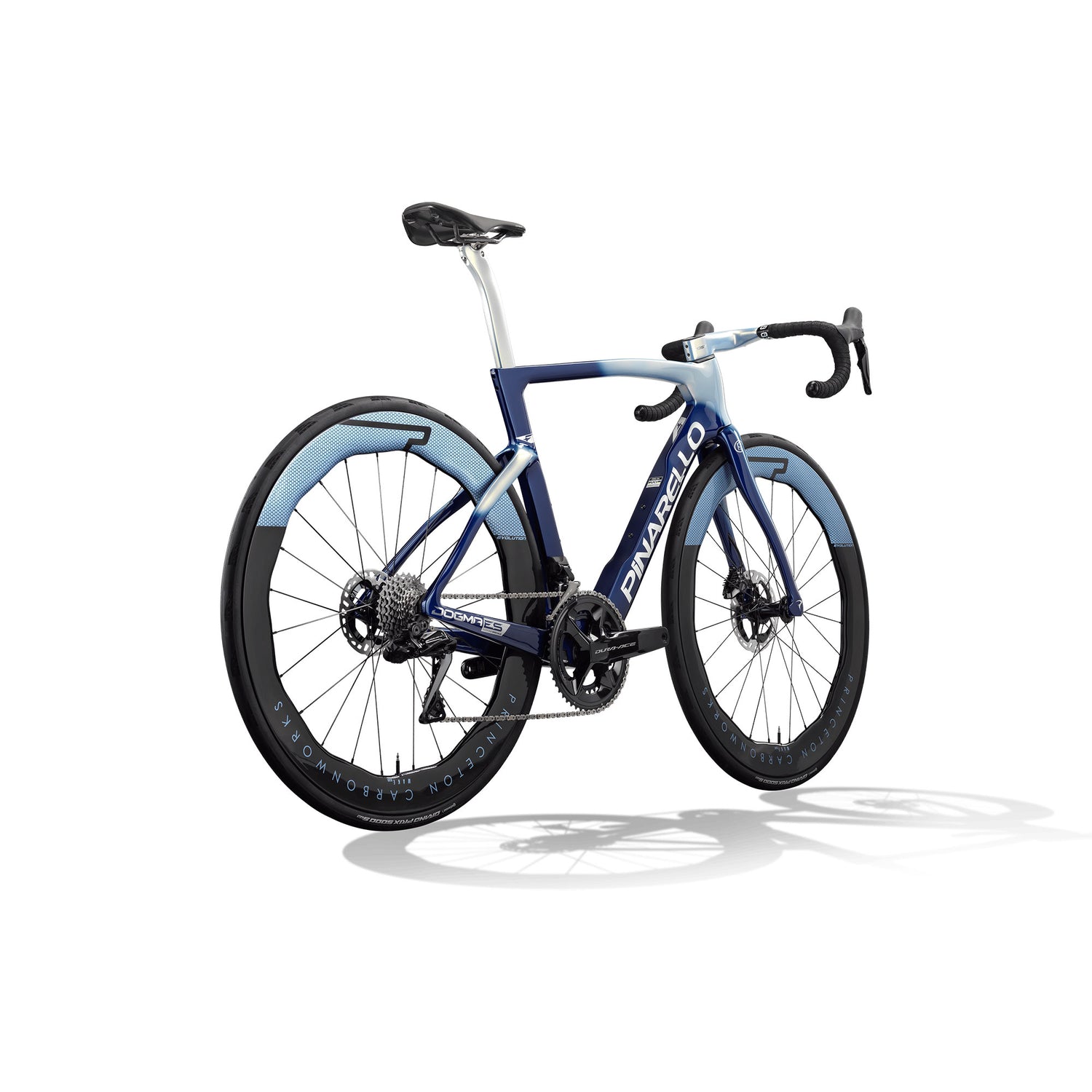

Pinarello Dogma F Edizione Speciale Dura-Ace Di2 Bike
$18,50000
Unit price
/
Unavailable
-
RA price match promise
-
Pay later with
,and
Pinarello | SKU: C1969277899-DM001
| Option:
Pickup available at RA Cycles - Brooklyn
Usually ready in 24 hours
Brooklyn, NY - Not immediately available
105 5th Ave Brooklyn, New York 11217
(718) 222-6000
* Available for in store pickup in 3-10 days based on location
Walnut Creek, CA - Not immediately available
2099 Mt Diablo Blvd Walnut Creek, California 94596
(925) 433-7099
* Available for in store pickup in 3-10 days based on location
Miami, FL - Not immediately available
1515 San Remo Ave Coral Gables, Florida 33146
(718) 222-6000
* Available for in store pickup in 3-10 days based on location
DISTRIBUTION CENTER - East - Not immediately available
468 Baltic Street Brooklyn, New York 11217
(718) 222-6000
Questions about this product?
Questions about this product?
What size do I need?
What size do I need?
Schedule a Bike Fit in Walnut Creek, CA.
Schedule a Bike Fit in Brooklyn, NY. Please call 718-636-5242
Pinarello Dogma F Edizione Speciale Dura-Ace Di2 Bike
$18,50000
Unit price
/
Unavailable
* Product image may vary. Refer to the description for accurate details.
Pinarello Dogma F Edizione Speciale Dura-Ace Di2 Bike - Specifications
Frame Material:
TorayCa M40X
Fork:
eTICR Onda Fork with ForkFlap
Headset:
Integrated
Seatpost:
Pinarello Aero with 3D printed titanium top seat clamp and bolts
Front Derailleur:
Shimano Dura-Ace Di2 R9250
Rear Derailleur:
Shimano Dura-Ace Di2 R9250
Crankset:
Shimano Dura-Ace R9200
Chainrings:
50/34
Bottom Bracket:
Shimano Dura-Ace R9200 Italian Threaded
Brake Calipers:
Shimano Dura-Ace R9270 Hydraulic Disc
Rotors:
Shimano 160mm (Front), 140mm (Rear)
Shifters / Levers:
Shimano Dura-Ace Di2 R9270
Cassette:
Shimano Dura-Ace R9200 12-speed 11-30
Chain:
Shimano M9100 12-speed
Wheel - Front:
Princeton Wake 6560 EVO
Wheel - Rear:
Princeton Wake 6560 EVO
Stem:
MOST Talon Ultra Fast
Handlebar:
MOST Talon Ultra Fast
Saddle:
MOST Lynx Ultrafast Superflow Carbon
Tires:
Continental Gran Prix 5000S TR 700x28
Bar Tape:
MOST
Pedals:
Not Included
*Specifications are subject to change.
Pinarello Dogma F Edizione Speciale Dura-Ace Di2 Bike Geometry
Size:
43
46.5
50
51.5
53
54
55
56
57.5
59.5
62
B. Seat Tube (c-t)
430
465
500
515
530
540
550
560
575
595
620
C. Top Tube Length
500
515
525
535
545
550
557
565
575
587
620
D. Head Tube Length
102
109
114
119
128
136
147
154.5
168
204
244
E. Chain Stay Length
407
407
407
407
407
408
408
409
409
409
411
F. BB Drop
67
72
72
72
72
72
72
72
72
67
67
G. Seat Tube Angle
74.4
74.4
74
73.7
73.7
73.4
73.4
73
73
72.4
72
H. Head Tube Angle
69.5
70.5
71.4
72
72.5
72.8
72.8
73.2
73.7
73.4
73.4
J. Wheel Size
700c
700c
700c
700c
700c
700c
700c
700c
700c
700c
700c
K. Stack
502
517.3
525.2
532.1
542.4
551
561.5
570.1
584.8
613.2
651.6
L. Reach
351.5
365.4
372.2
378.2
385.6
385.3
389.2
390.8
396.7
393.4
410
Stem Length
80mm
90mm
90mm
100mm
110mm
110mm
110mm
120mm
120mm
120mm
130mm
Bar Width
40cm
42cm
42cm
42cm
42cm
42cm
44cm
44cm
44cm
46cm
46cm
M. Crank Length
165mm
165mm
170mm
170mm
172.5mm
172.5mm
172.5mm
172.5mm
175mm
175mm
175mm
