Wolf Tooth B-RAD Mounting Bases

Wolf Tooth B-RAD Mounting Bases Info

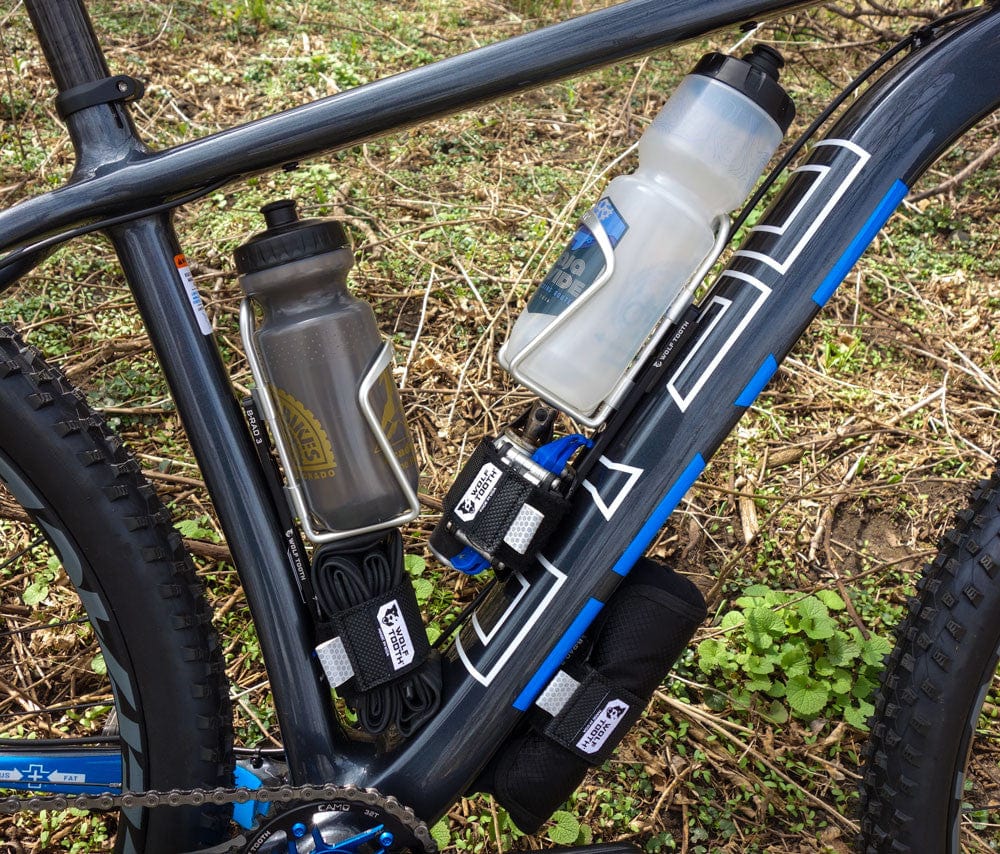

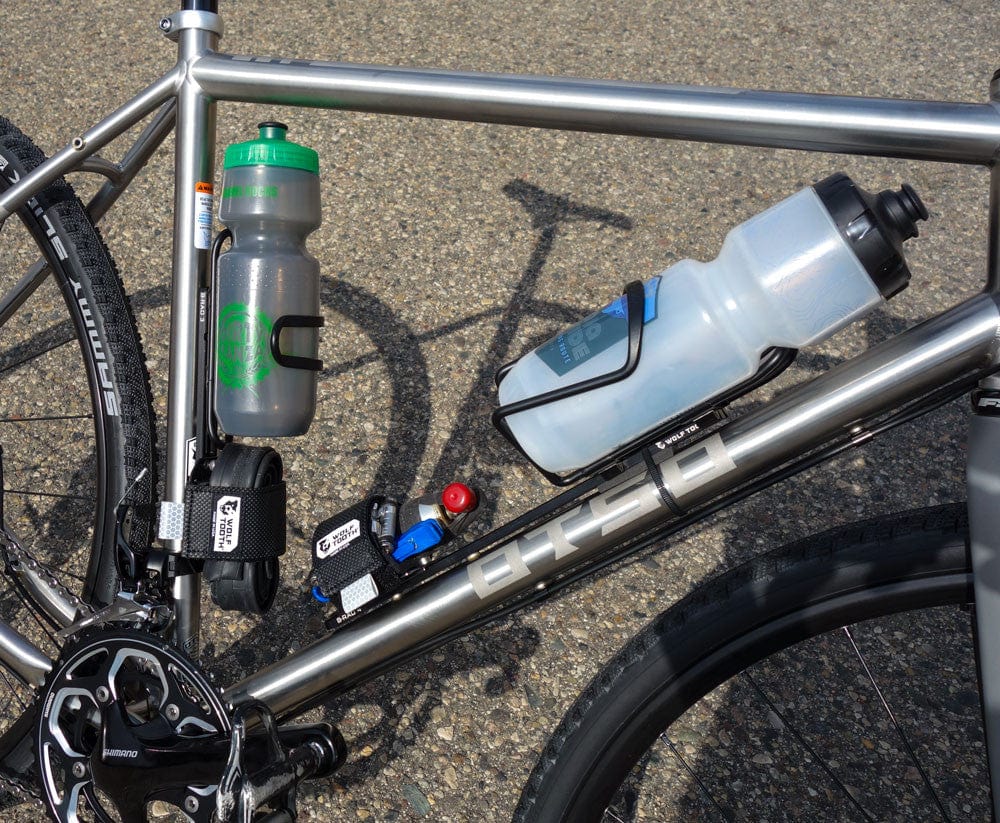

Wolf Tooth B-RAD Mounting Bases are the foundation of the B-RAD™ (Bottle Relocation & Accessory Device) system, giving riders a flexible way to optimize on-bike storage. Whether you're making room for a frame bag, clearing a rear shock, or adding extra bottles for long days in the saddle, these bases allow you to reposition and expand your mounting options using your existing bottle cage bosses.

Machined from durable 6061-T6 aluminum, B-RAD Mounting Bases are lightweight, rust-proof, and built to handle demanding trail, gravel, and bikepacking use. By creating a modular mounting platform, they allow you to customize bottle placement or attach compatible B-RAD accessories for tools, bags, and other ride essentials.

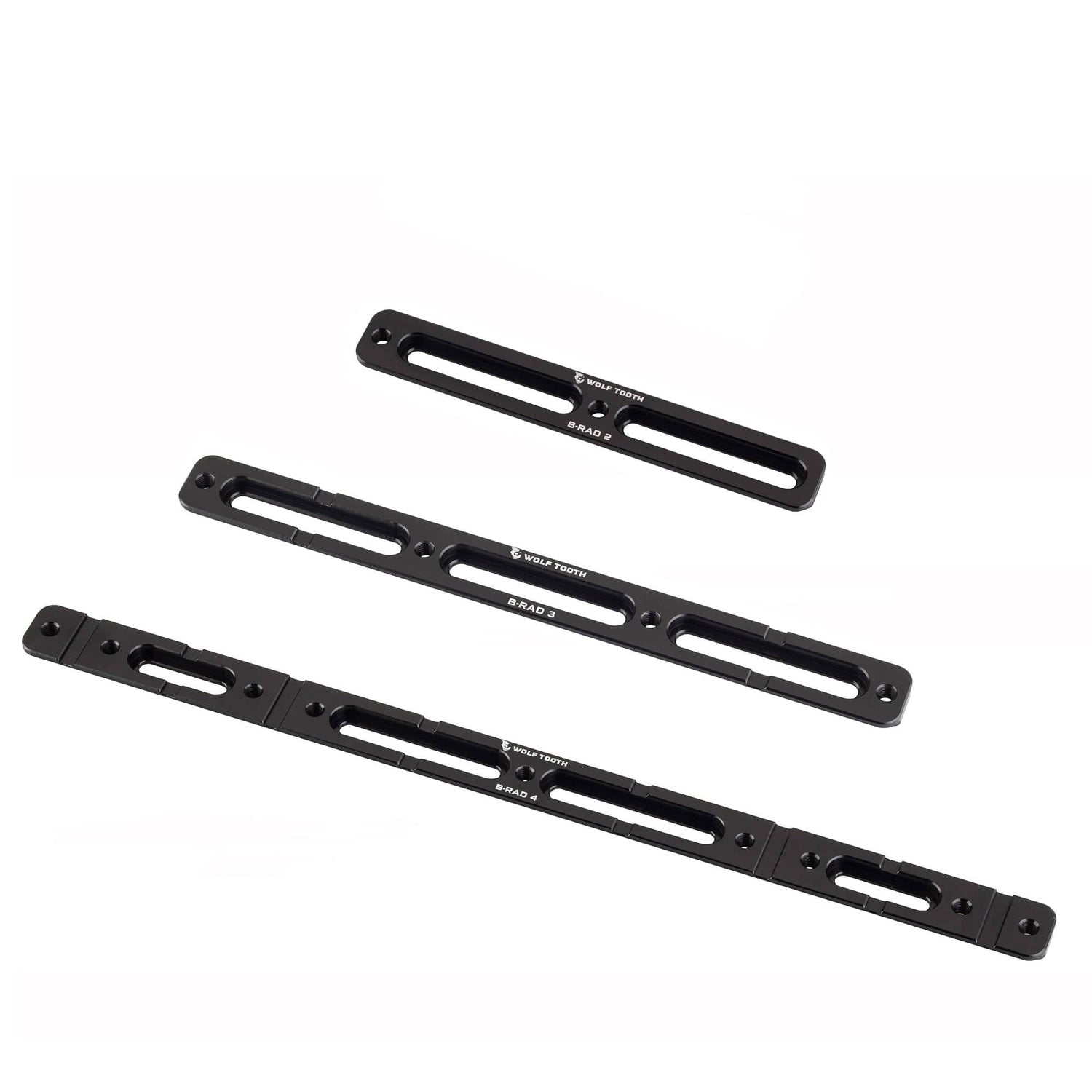

B-RAD Mounting Base Options

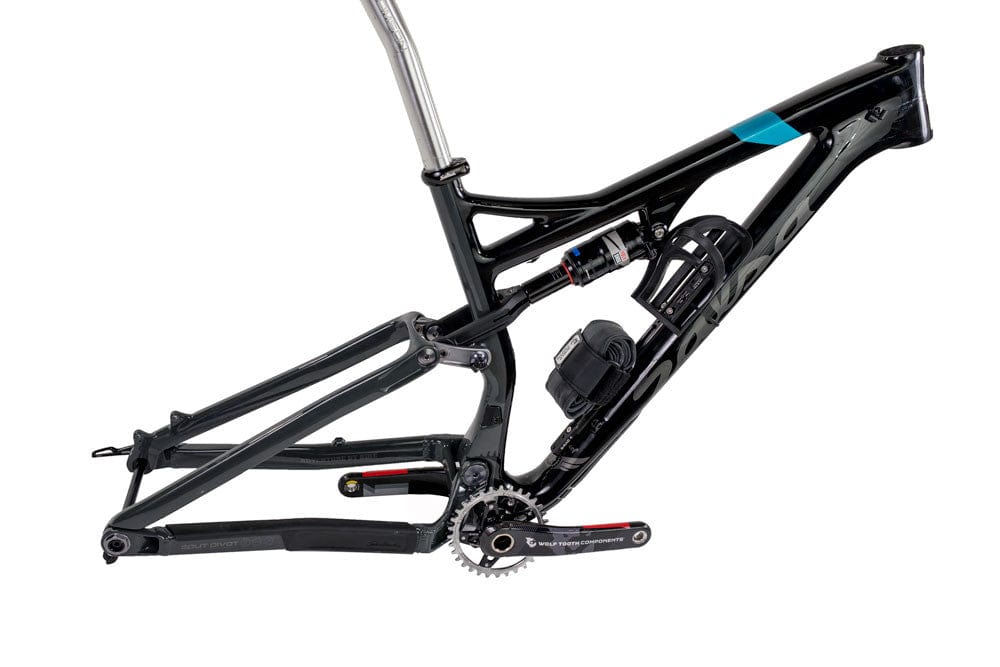

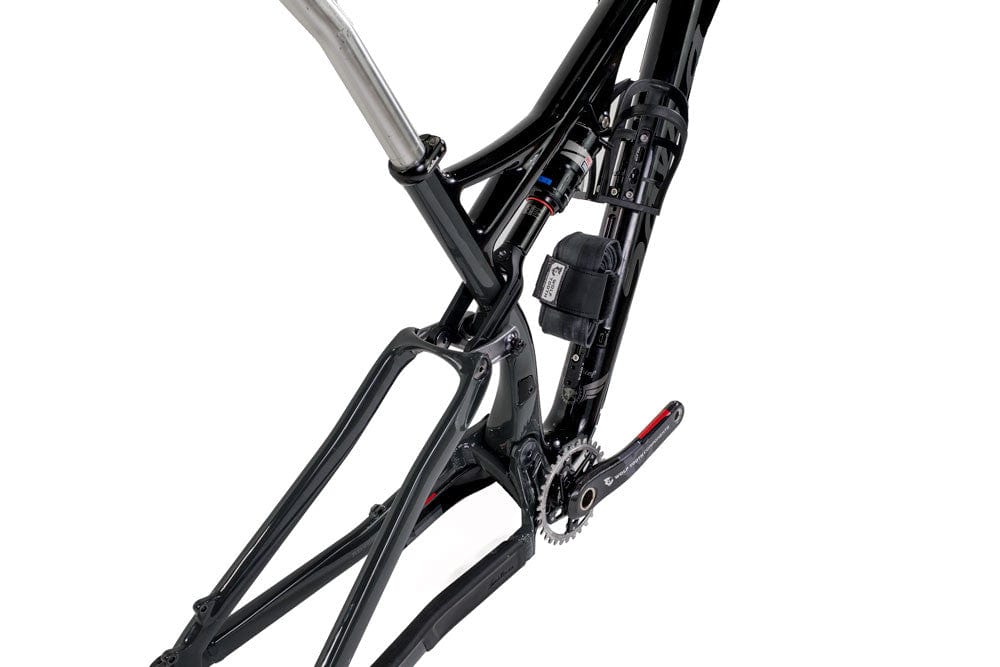

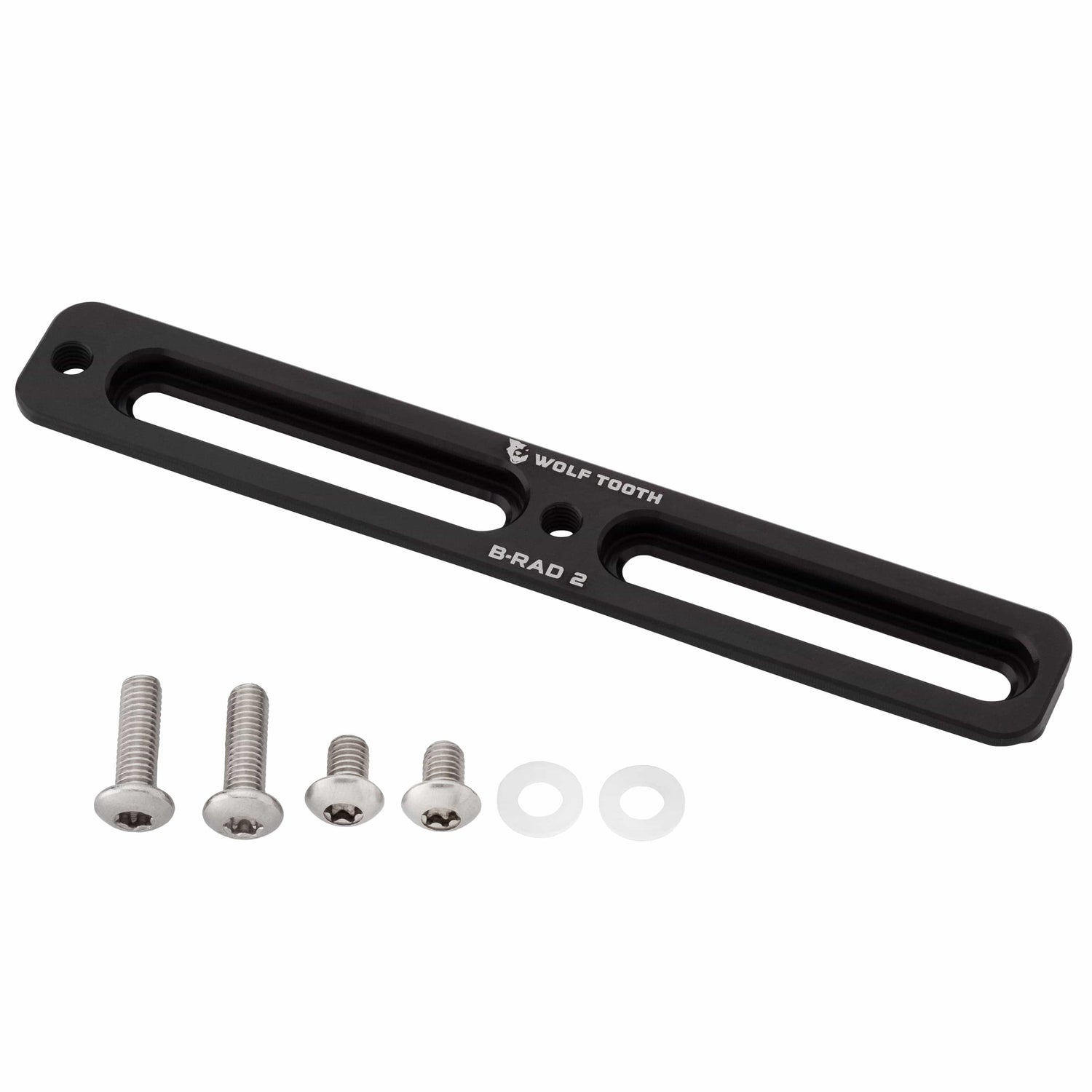

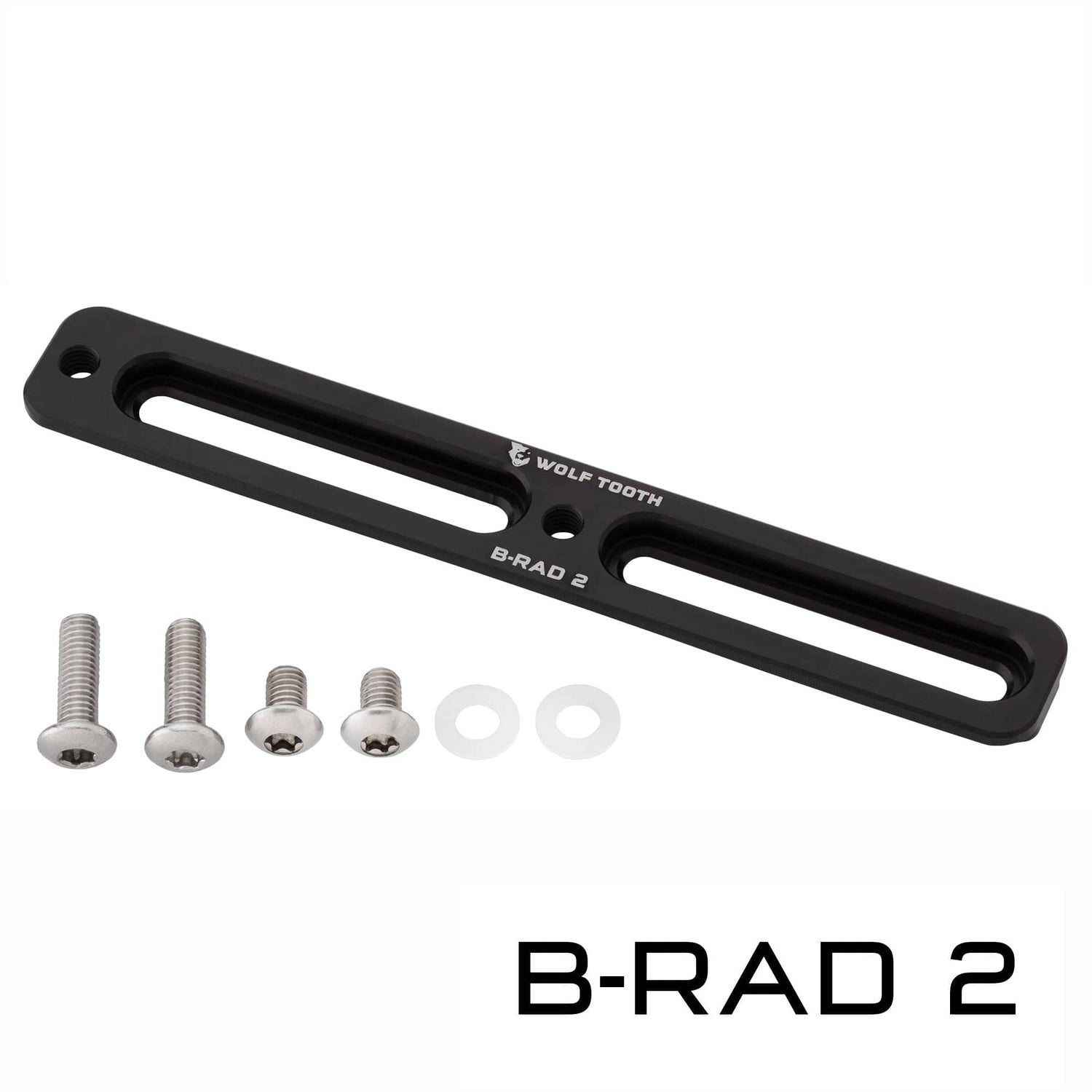

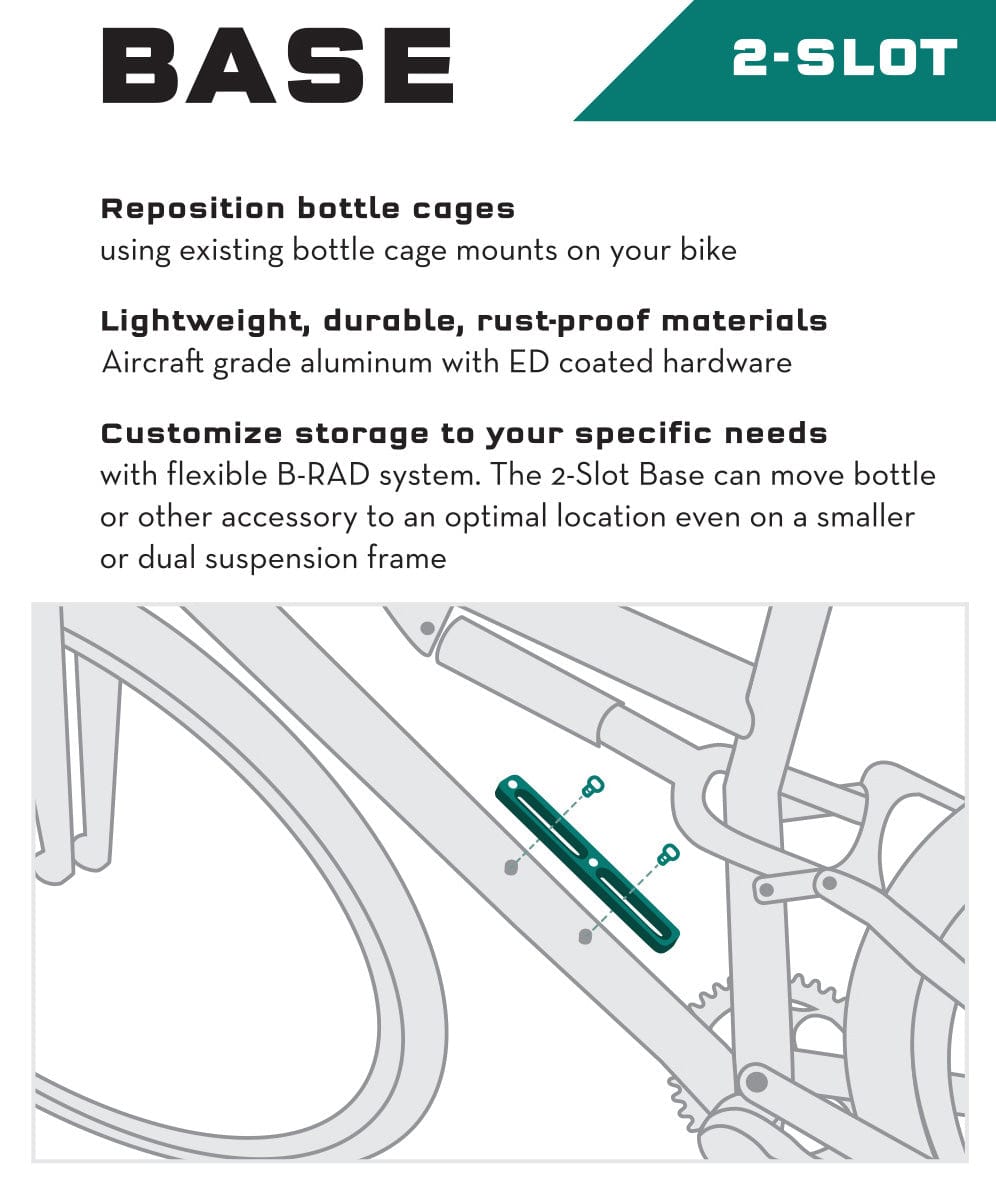

• B-RAD 2: Two-slot base that repositions a bottle or accessory up to 54mm. Ideal for smaller or dual-suspension frames.

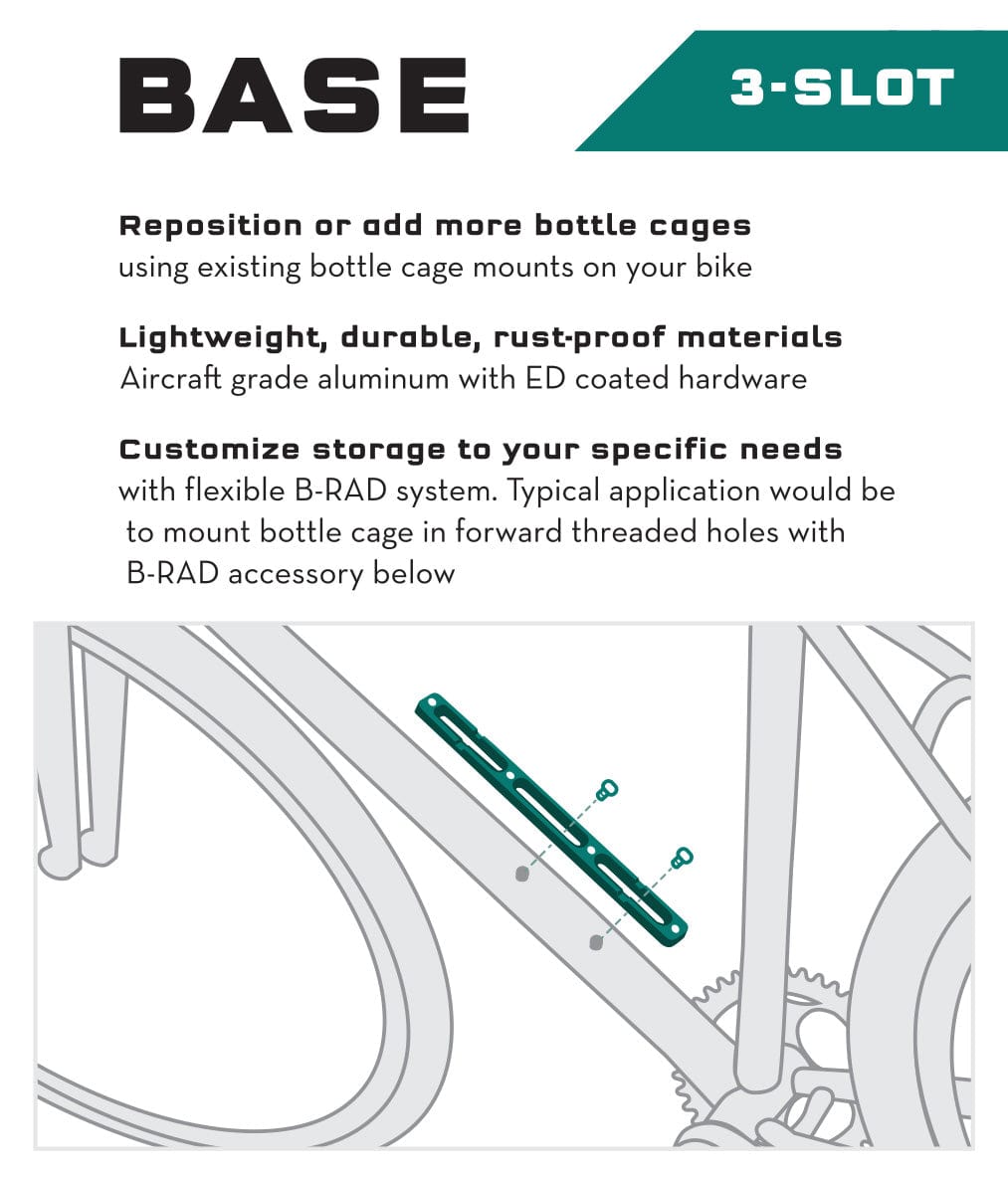

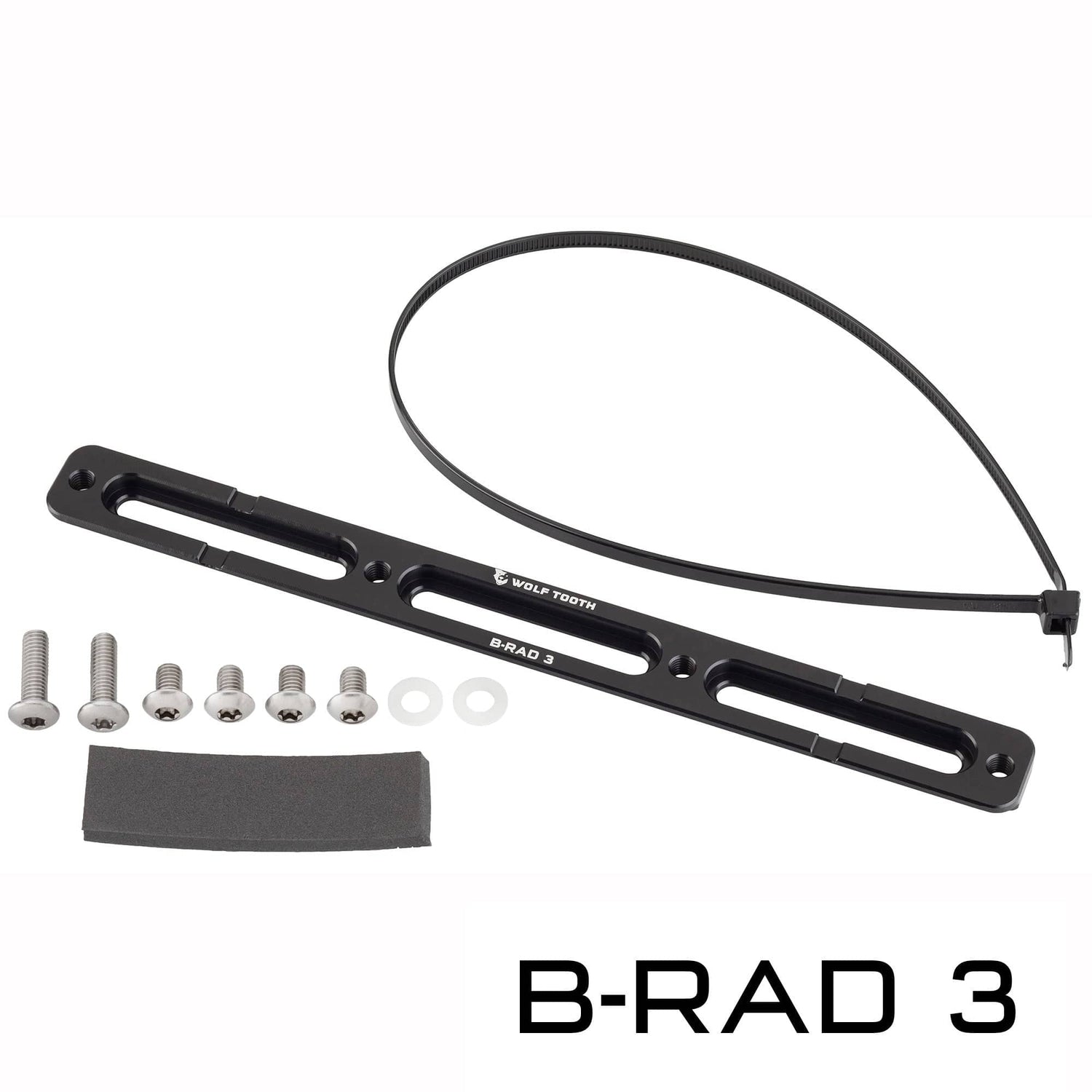

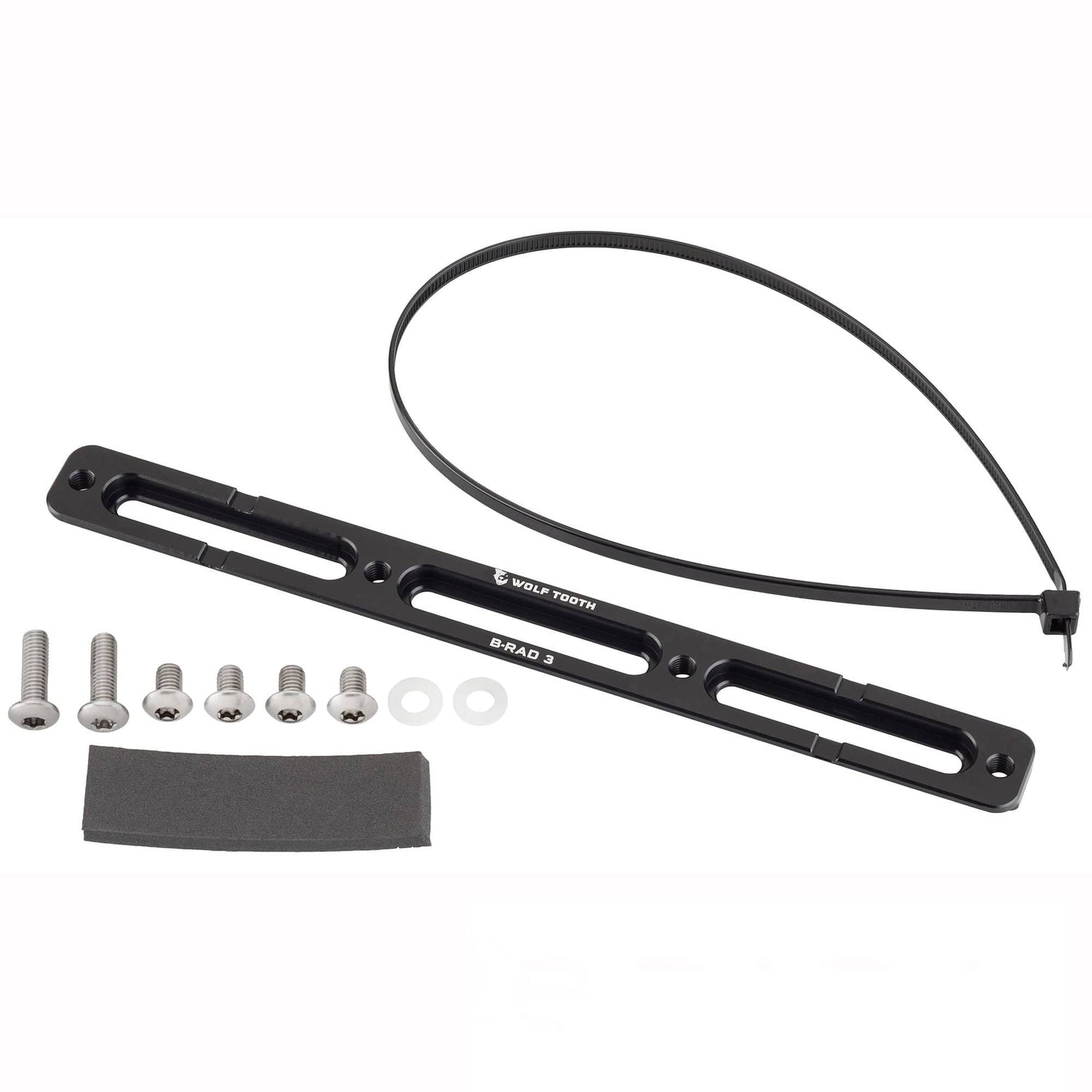

• B-RAD 3: Three-slot base with four threaded holes, offering up to 118mm of adjustment. Includes foam pad and recommended zip tie for secure mounting. Works well with triple mounts on frames and forks.

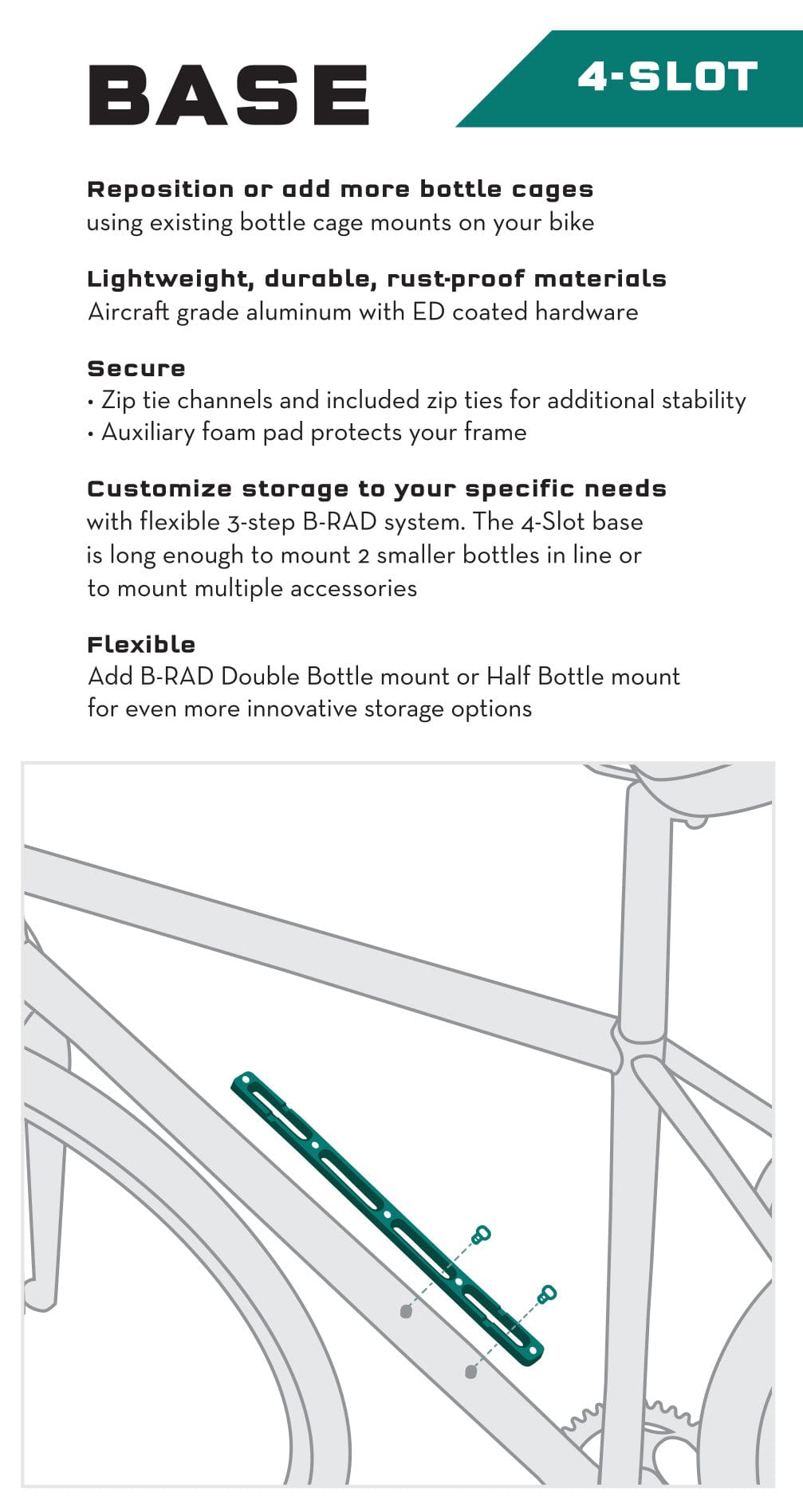

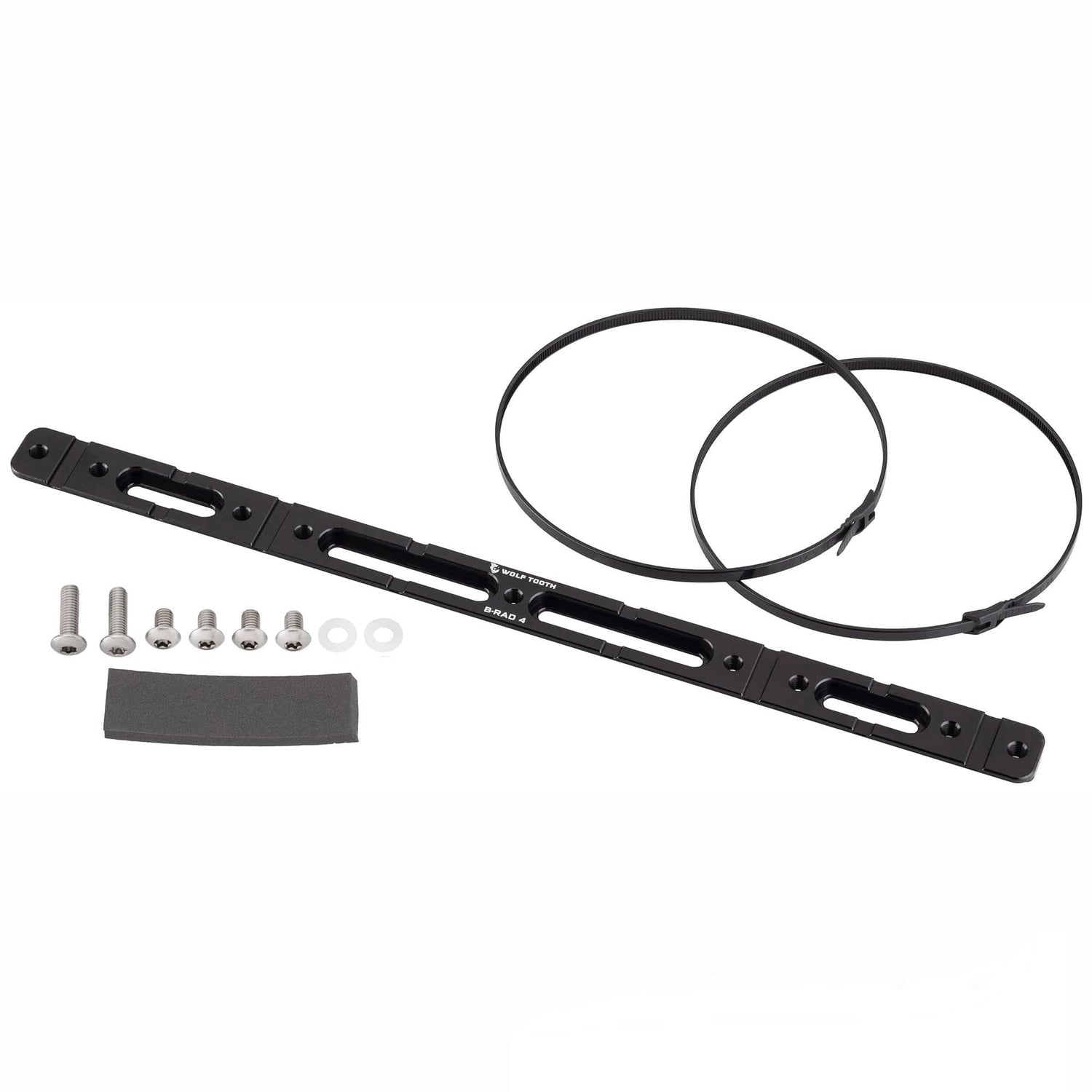

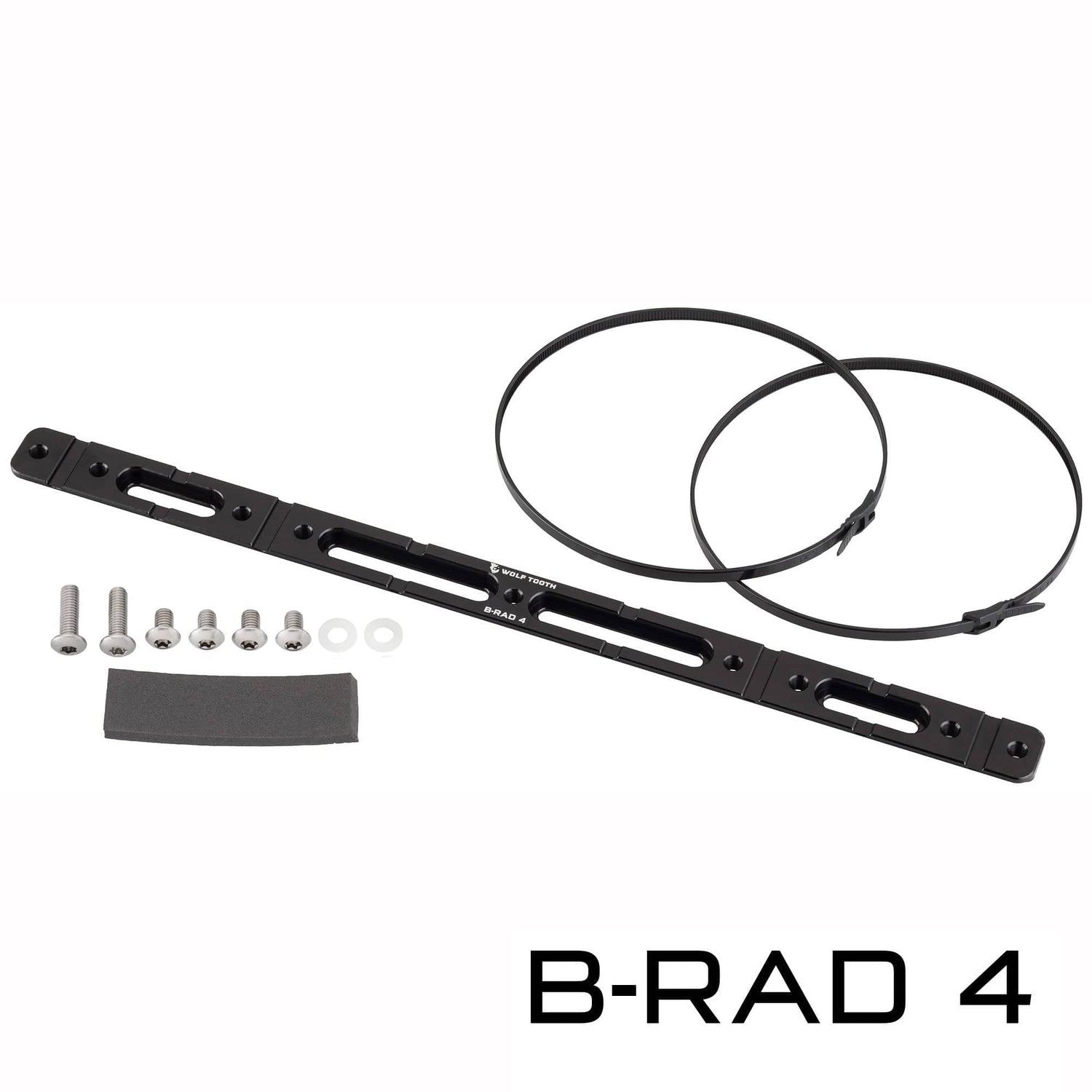

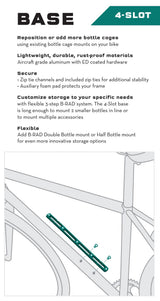

• B-RAD 4: Four-slot base with nine threaded holes for maximum flexibility. Can move a bottle up to 201mm or mount two small bottles inline. Includes foam pad and zip ties.

Compatibility & Installation

• Mount Standard: Requires at least two standard threaded bottle cage mounts (64mm spacing)
• Hardware: T25 Torx bolts included
• Tools Needed: T25 Torx wrench
• Torque Spec: 3–4 Nm
• Max Load: 1700g per base
• Note: B-RAD 3 and 4 should use included foam pad and zip tie for secure mounting
• Clearance Tip: Additional spacers (such as a Space Out Kit) may be required to clear front derailleur clamps

Wolf Tooth B-RAD Mounting Bases Specs at a Glance

• Weight: B-RAD 2 – 27g | B-RAD 3 – 41g | B-RAD 4 – 75g
• Material: 6061-T6 aluminum bracket with EVA foam pad
• Thickness: 6mm
• Manufacturing: Made in the USA

Design Benefits

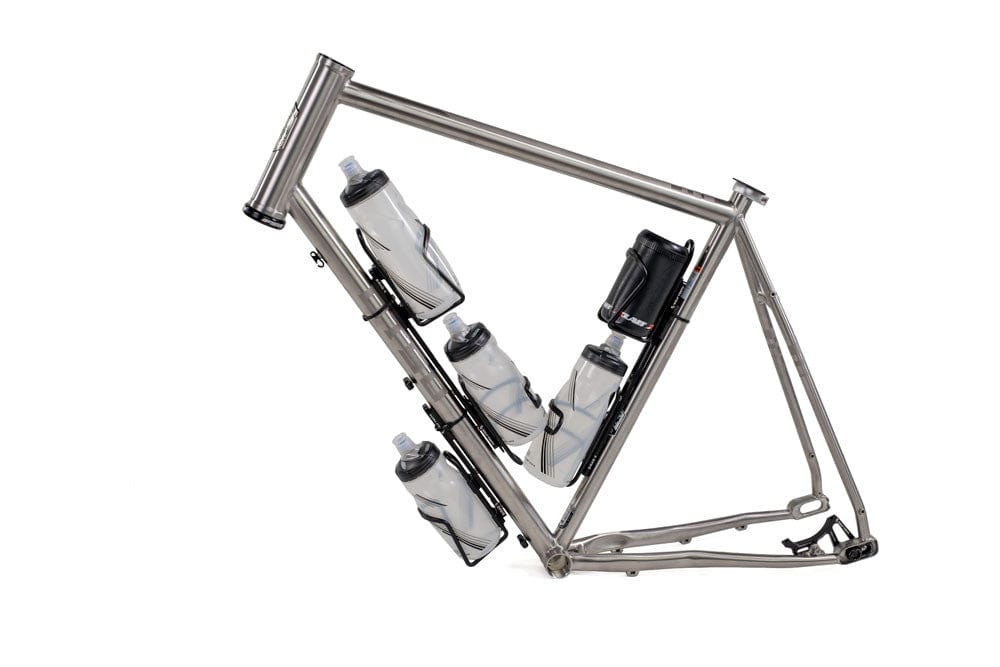

1. Reposition Bottles: Move cages to clear shocks, bags, or tight frame geometry.
2. Expand Storage: Create mounting space for additional bottles or B-RAD accessories.
3. Modular System: Integrates with B-RAD mounts and accessory-specific attachments.
4. Lightweight & Durable: Strong aluminum construction built for real-world riding.

Final Take

The Wolf Tooth B-RAD Mounting Bases are a practical, performance-focused solution for modern bikes with limited space. Whether you're building a race-ready gravel machine or setting up for a multi-day bikepacking trip, B-RAD gives you the flexibility to dial in storage exactly where you need it.
