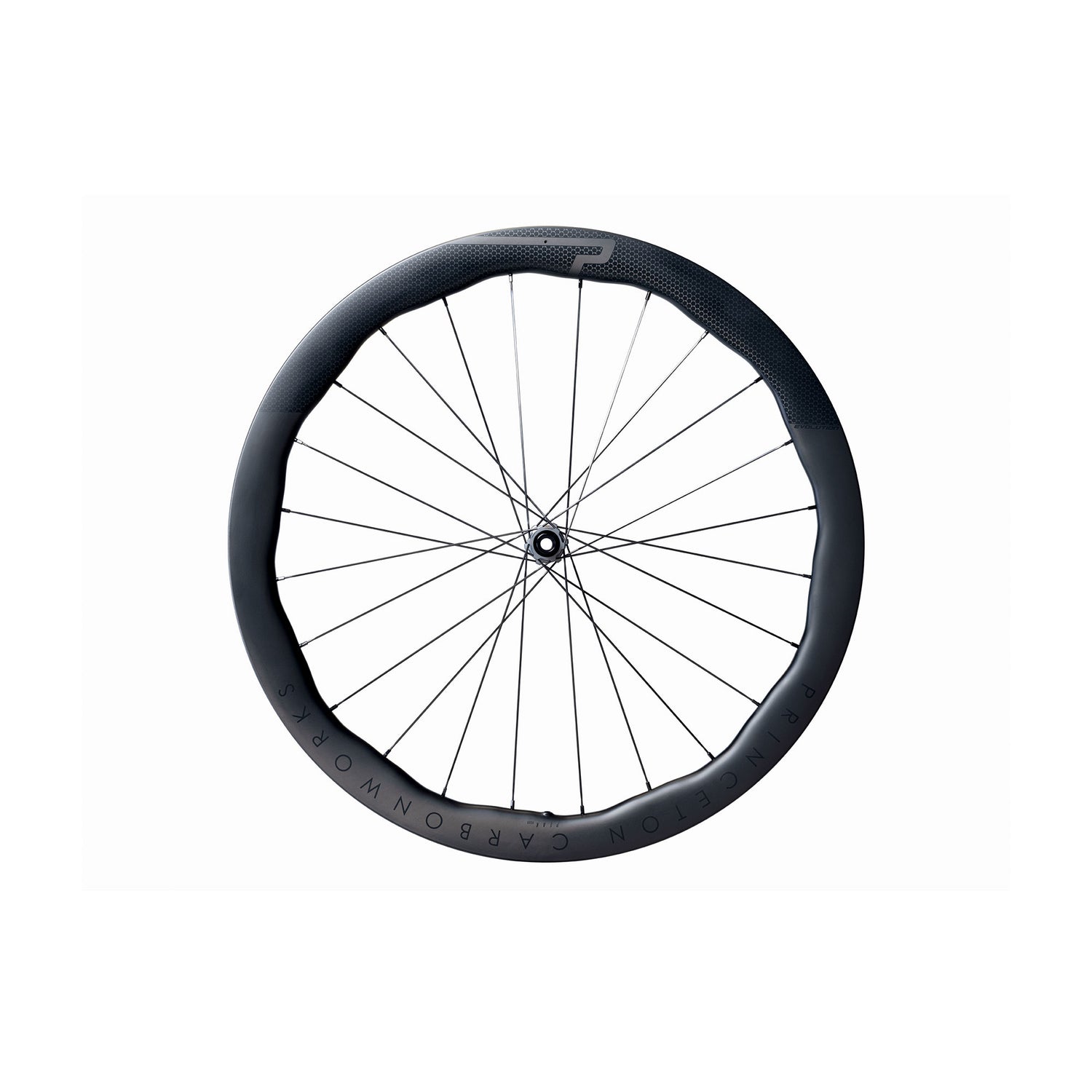

Princeton Peak 4550 EVO Disc Brake Wheel DT Swiss 180 Front

The Princeton CarbonWorks Peak 4550 EVO Disc Brake Wheel with DT Swiss 180 hub is a front wheel built around one of the most technically distinctive rim designs in road cycling. Princeton CarbonWorks doesn't make conventional constant-depth wheels. Every rim in their lineup uses an undulating profile — a deliberately engineered wave shape that varies in depth around the circumference — and the Peak 4550 is where that philosophy meets the demands of riders who need a wheel that climbs, sprints, and handles crosswinds with equal confidence. This is the front disc brake wheel, built on the DT Swiss 180 hub and finished in Matte Black.

The "4550" in the name is the design shorthand: the rim alternates between 45mm and 50mm in depth as it travels around the wheel. Princeton's research and development into this undulating profile found that the variation in depth disrupts airflow differently than a constant-depth rim, reducing drag while simultaneously dampening sensitivity to crosswinds. The result is a wheel that behaves more predictably in variable conditions than its 45-50mm depth might suggest. Beyond aerodynamics, the Evolution generation brings a widened 21mm internal rim width and a reduced rim weight of 420g — a meaningful improvement over the previous generation that makes the Peak 4550 more capable across the range of tire widths modern road and endurance riders are running.

Princeton's patented Radially Staggered Lacing takes advantage of the undulating profile in a structurally significant way. By matching alternating deep and shallow rim sections to alternating spoke sides — routing the higher-tension disc-side spokes to the deeper rim sections — the design flattens spoke angles and balances tension across both flanks of the wheel. Stiffer, more uniform wheel behavior is the result. The rim itself uses a hooked, hole-less tubeless-ready tire bed that requires no rim tape and imposes no tire pressure restrictions — a deliberate contrast to competing hookless designs, which Princeton argues carry real risks around tire compatibility and maximum pressure limits. Sapim CX-Ray bladed spokes with Sapim SecureLock alloy nipples complete a build designed for long-term reliability and consistent performance.

At the hub, the DT Swiss 180 is one of the lightest and most refined road hubs available. Machined to tight tolerances and built around DT Swiss' Ratchet EXP engagement system with a 36-tooth ratchet, the 180 hub delivers quick, reliable engagement with extremely low rolling resistance. The front hub is disc-brake specific, with a Center Lock rotor interface.

Design Benefits

1. Undulating rim profile targets aero performance and crosswind stability simultaneously. Constant-depth rims have a fixed aerodynamic character — deep is fast in clean air but unpredictable in crosswinds. The Peak 4550's depth variation disrupts the uniform airflow pattern, reducing drag at race-relevant speeds while making the wheel more manageable in variable conditions. Princeton describes the result as a wheel that is "aerodynamic and impervious to crosswinds."
2. Radially Staggered Lacing converts rim geometry into structural advantage. Princeton's patented lacing pattern uses the undulating rim profile purposefully: deeper rim sections anchor the higher-tension spokes, flattening bracing angles and equalizing tension across both sides. The stiffness and balance improvements aren't incidental — they're engineered into the geometry of the wheel itself.
3. Hooked, hole-less tubeless tire bed eliminates setup complications. The non-drilled rim bed is inherently stiffer than a drilled design, and the hooked bead interface allows any compatible tubeless or clincher tire to be mounted without tape, without pressure caps, and without the compatibility concerns that accompany hookless rims. Princeton's position: hooked is safer and faster for road use.
4. DT Swiss 180 hub delivers top-tier precision with minimal weight. The 180 is DT Swiss' lightest road hub, built around the Ratchet EXP system for reliable 36-tooth engagement. At the front, the hub contributes meaningfully to overall wheel weight without sacrificing the bearing precision or durability that DT Swiss is known for.
5. Sapim CX-Ray spokes provide an optimal tension-to-weight balance. CX-Ray bladed spokes are the gold standard for high-performance wheel building — stiff under load, aerodynamically shaped, and built to tolerances that support consistent spoke tension over the life of the wheel. The SecureLock nipples resist loosening under vibration and load.

Final Take

The Princeton CarbonWorks Peak 4550 EVO is a front wheel for riders who understand that the details in wheel design — rim geometry, lacing pattern, tire bed construction — translate into measurable differences on the road. This isn't a wheel built to a spec sheet; it's a wheel built around a set of engineering convictions that Princeton CarbonWorks has refined across multiple generations of product. Paired with a rear wheel of comparable quality, it delivers the handling sharpness on climbs and descents, the aero efficiency on flats, and the stability in crosswinds that the Peak 4550 is designed to provide. At $2,000 for the front wheel, this is premium territory — and the build quality and technology justify the position.
