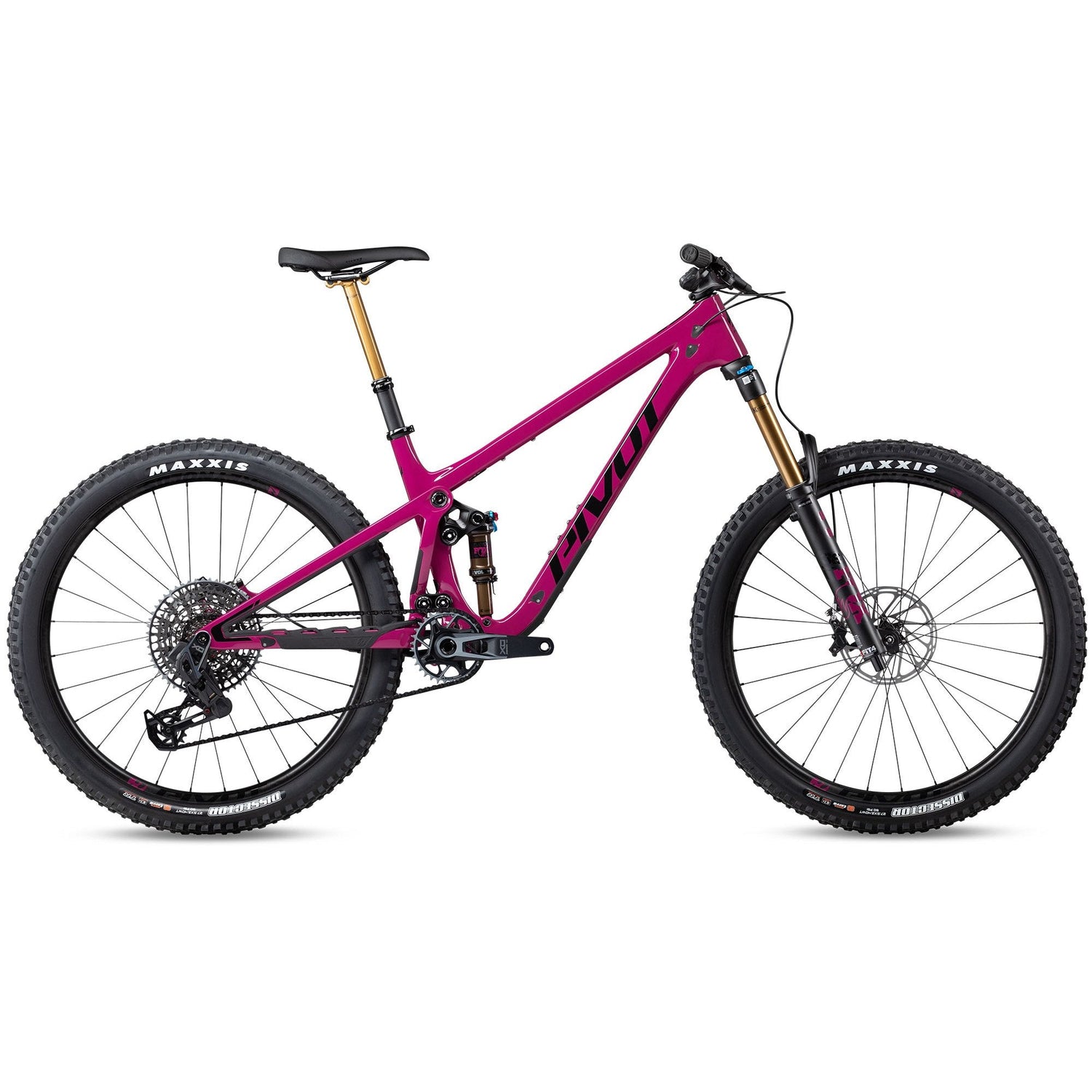

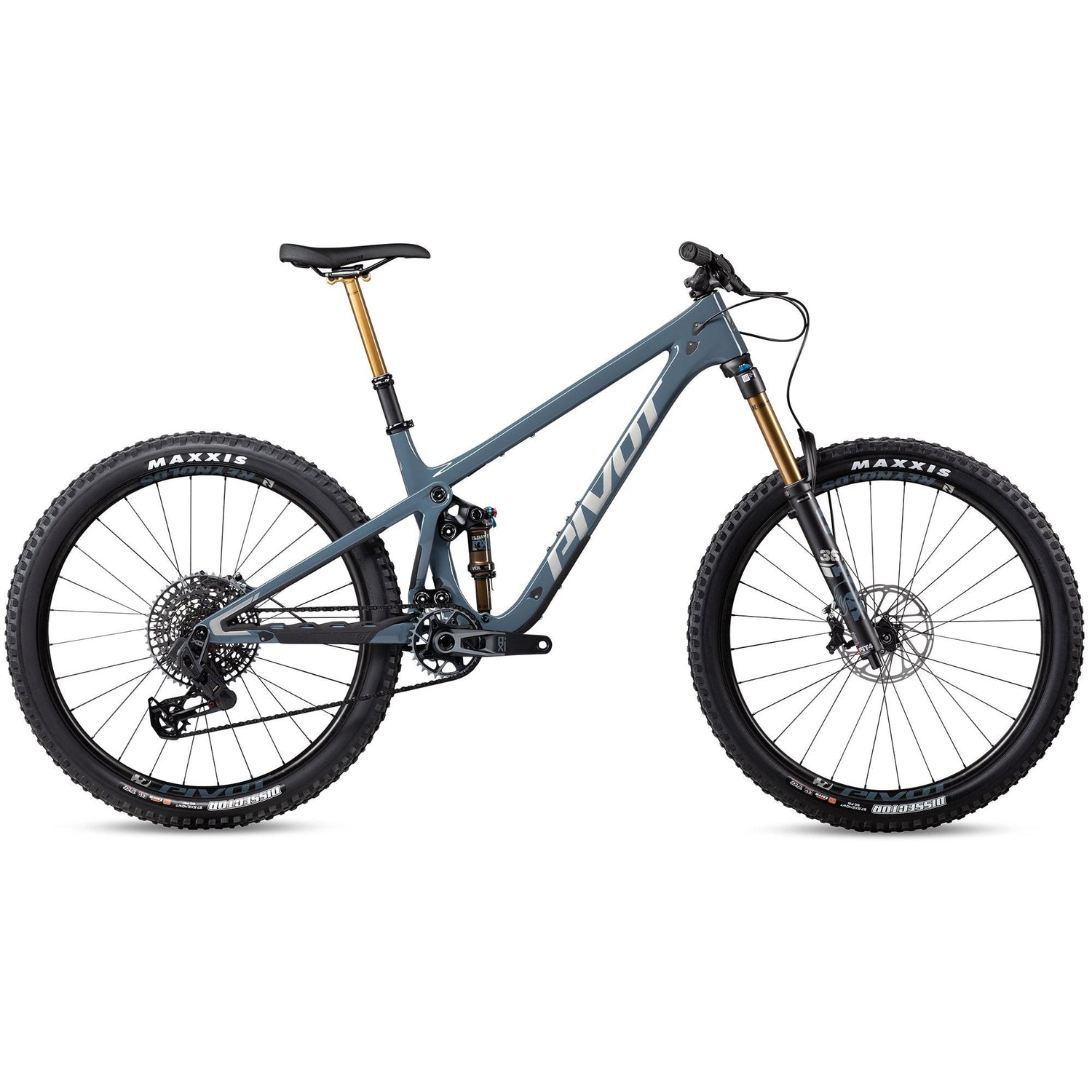

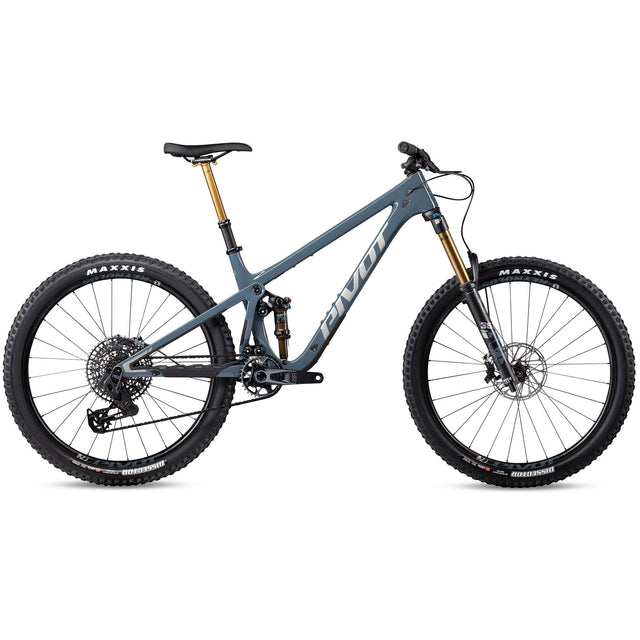

Pivot Shadowcat Pro X0 Eagle Transmission w/Carbon Wheel Upgrade

The Pivot Shadowcat Pro X0 Eagle Transmission Bike with Carbon Wheel Upgrade is a 27.5" trail bike built around a single obsession: being as light and fast as possible while still having the suspension and geometry to handle real trail terrain. Pivot's Hollow Core Carbon frame for the Shadowcat tips the scale lighter than their already-lean Trail 429 frame — only 45 grams heavier than the Mach 4SL XC race frame, an extraordinary figure for a 140mm travel bike. The result is a machine that feels electric off the line, snaps through corners like it's on rails, and pedals with the efficiency of bikes giving up significant travel.

Pivot built the Shadowcat around 27.5" wheels deliberately. Smaller diameter means quicker acceleration, faster steering response, and a lower standover that lets riders move more freely over the bike. Paired with 430mm chainstays consistent across all four sizes, the handling is tight, snappy, and responsive in a way a 29" wheeled bike simply can't replicate. The geometry is modern — a 65.8° head tube angle for composed descending, a 76° seat tube angle that puts you over the pedals efficiently on climbs, and progressive reach numbers that scale cleanly through the size run. The Shadowcat's ride character isn't quiet and composed; it's quick and alive, inviting riders to find lines and features that a heavier, sloppier bike would roll straight past.

The dw-link rear suspension runs 140mm of travel on a Fox Factory Float DPS shock. Dave Weagle's four-bar linkage separates braking forces from suspension motion, so the bike doesn't dive or kick under load the way simpler single-pivot designs can. What that means practically: the Shadowcat's dw-link allows 140mm to pedal with more snap and efficiency than most 120mm designs, while still delivering the traction and small-bump compliance needed on rough, choppy trail. The fork is a Fox Factory 36 with FIT4 damper running 160mm of travel and a 44mm offset — a meaningful 20mm more travel at the front than the rear, which keeps the bike's head angle consistent and the handling composed on steep, choppy descents.

The drivetrain is SRAM X0 Eagle Transmission, the same wireless 12-speed system as the Switchblade Pro — cable-free, sealed against mud and water, with an AXS Pod Controller that shifts cleanly under load without housing stretch or cable tension adjustments. SRAM X0 Eagle DUB 32T crank, 10-52T cassette, and the X0 Flattop chain round out the drivetrain. Braking is handled by SRAM G2 RSC 4-piston calipers — SRAM's trail-specific 4-piston, lighter than the Code RSC and well-matched to the Shadowcat's weight-conscious build philosophy, with 180mm CenterLock rotors on both ends.

The carbon wheel upgrade specifies Reynolds Blacklabel Trail Pro carbon wheels on Industry Nine hubs. Reynolds' Blacklabel Trail Pro is a carbon trail rim built with a 32mm internal width, optimized for 27.5x2.4" tires. Industry Nine hubs are known for their exceptionally fast engagement and field-serviceable design — the front runs a 15x110mm Boost axle, the rear a 12x148mm Boost spacing. This pairing keeps the unsprung rotational weight low while adding real-world responsiveness you feel immediately on trail. Maxxis Dissector 27.5x2.4 tires front and rear round out the contact patch, offering predictable cornering grip on mixed-condition terrain.

Design Benefits

1. Hollow Core Carbon frame delivers XC-class weight at trail-bike travel. The Shadowcat frame weighs lighter than Pivot's Trail 429 and within 45 grams of the Mach 4SL XC race frame. At 140mm of rear travel, that weight figure changes the entire character of the bike — acceleration is immediate, climbing is efficient, and every trail feature feels more playful when the bike isn't fighting gravity on the way up.
2. 27.5" wheels and 430mm chainstays make the handling sharp and precise. Smaller diameter wheels accelerate faster, steer quicker, and allow for a lower center of gravity than 29" equivalents. Consistent 430mm chainstays across the size run keep the front-center to rear-center balance tight for snappy cornering. This is a bike that rewards active, creative riding.
3. dw-link makes 140mm pedal like 120mm. Dave Weagle's four-bar linkage isolates braking forces from suspension movement, reducing pedal kickback and bob. The Shadowcat's suspension tune lets you pedal out of corners and up technical climbs without fighting the suspension — the bike accelerates cleanly and efficiently regardless of terrain.
4. Reynolds Blacklabel Trail Pro wheels with Industry Nine hubs keep rotational weight low. Carbon trail rims with fast-engagement Industry Nine hubs upgrade acceleration and trail feel over a standard alloy build. Industry Nine hubs are fully serviceable in the field, and the fast engagement translates to immediate power transfer when you drive out of corners.
5. SRAM X0 Eagle Transmission handles shifting conditions that would rattle a mechanical system. Wireless, sealed, cable-free — the X0 Transmission shifts consistently under load and doesn't degrade as drivetrain components wear in. The 10-52T range covers everything from grinding technical climbs to flat-out descents.

Final Take

The Pivot Shadowcat Pro with X0 Eagle Transmission and Reynolds carbon wheels is the right bike for riders who want to go fast on trail without being weighed down by it. It's not trying to be an enduro bike — it's a 140mm trail ripper that climbs with XC efficiency and descends with the confidence of a geometry that respects the rider. At $9,699, the combination of Hollow Core Carbon, full Fox Factory suspension, SRAM's wireless top-tier drivetrain, and Reynolds carbon wheels makes this one of the strongest value propositions in the trail bike segment. If 27.5" wheels and a featherlight frame sound like your kind of riding, the Shadowcat is hard to argue with.
