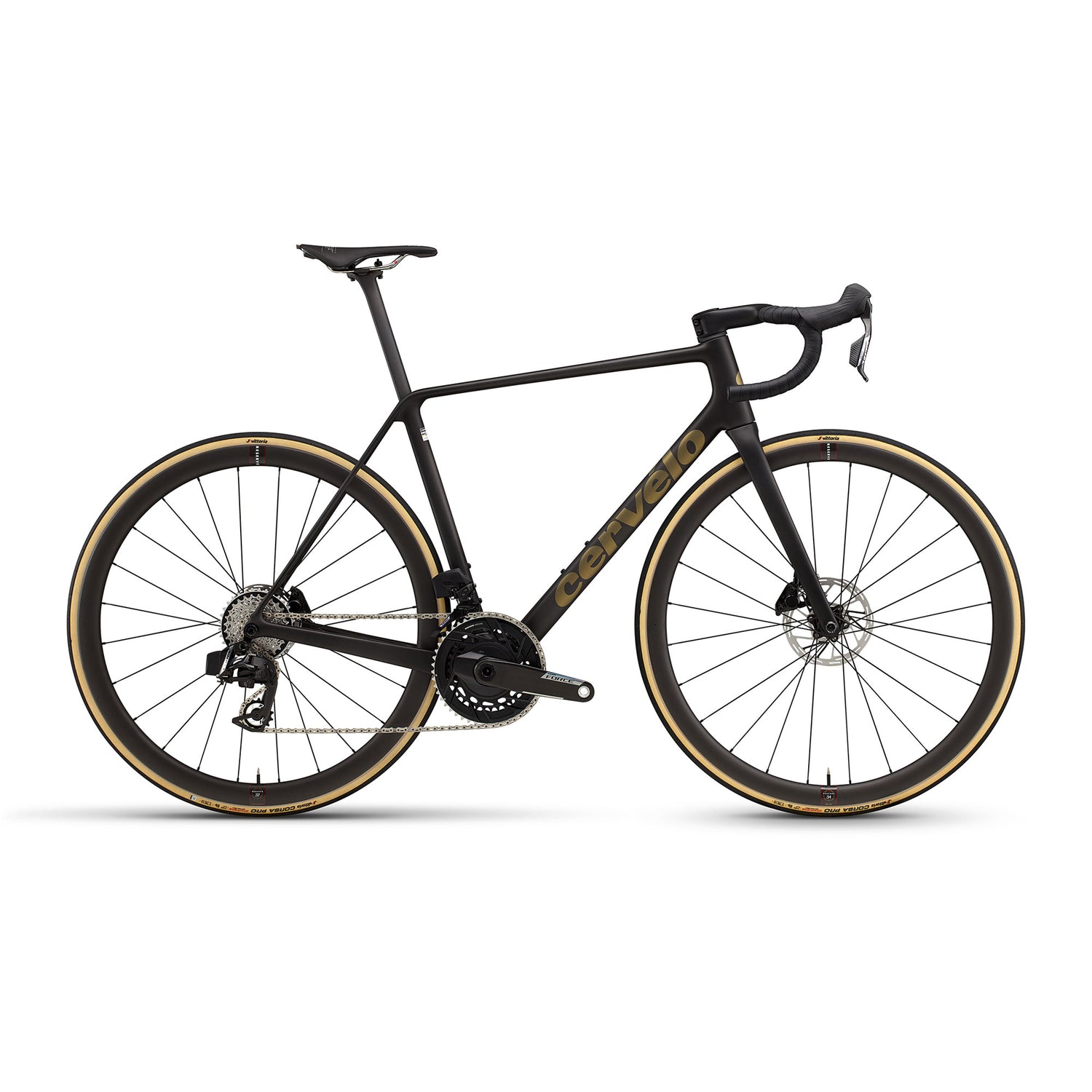

Cervelo R5 Force AXS Bike

$10,250⁰⁰

RA price match promise
Pay later with , and

Coming soon! Backorder this item and one of our sales associates will contact you within 24 hours confirming its shipping date.

Cervelo | SKU: 0L0R5HFX1C48 | Option: Five Black / Bronze, 48cm

This product is HSA / FSA eligible

In-store pickup only for this product.

Pickup available at RA Cycles - Brooklyn

Normalmente pronto em 24 horas

Questions about this product?

What size do I need?

Get a digital fit assessment

Schedule a Bike Fit in Walnut Creek, CA.

Schedule a Bike Fit in Brooklyn, NY. Please call 718-636-5242

* Product image may vary. Refer to the description for accurate details.

Cervelo R5 Force AXS Bike Info

The Cervelo R5 Force AXS Bike is Cervelo's pure climbing race bike — the machine Jonas Vingegaard rode to back-to-back Tour de France victories in 2022 and 2023. That pro pedigree isn't incidental to the product. The R5 was shaped by Visma-Lease a Bike's demands for a bike that climbs as efficiently as possible: 651 grams for the frame in size 56, 298 grams for the fork, and a ride character that's consistently described as direct, lively, and genuinely effortless on long mountain efforts. The Force AXS build puts the R5 platform within reach of more riders without changing what the chassis does or how it feels.

Cervelo builds the R5 frame using FEA-optimized carbon layup, with each ply individually placed and oriented to match the specific load paths of a climbing race bike. The frame uses Squoval Max tubing — a hybrid between square and oval cross-sections that improves the stiffness-to-weight ratio and vertical compliance compared to round or purely square profiles. The bottom bracket shell is BBright: Cervelo's asymmetric 79mm press-fit shell with an 11mm offset on the non-drive side that positions the bearing closer to the crank for improved stiffness without affecting pedal stance width. The seatstay junction was refined specifically for increased vertical compliance, and the D-shaped SP33 seatpost runs with meaningful exposed length to take further edge off rough tarmac without flex in the pedaling plane. Total frame and fork weight comes in at 949 grams in size 56.

SRAM Force eTap AXS handles shifting wirelessly across 12 speeds with a 48/35 chainring combination and a 10-33T cassette. Fully wireless, fully electronic — no cables to route through the integrated cockpit, no mechanical indexing to drift. Reserve 34|37 carbon wheels run a 34mm front and 37mm rear rim depth, with a 1,300g wheelset weight and center-lock disc hubs. The asymmetric rim depth is a considered choice for a climbing bike: the deeper rear contributes aerodynamically on flats and descents while the shallower front stays manageable in crosswinds on exposed mountain roads. Vittoria Corsa Pro Speed TLR in 700x26c run tubeless on that rim.

Design Benefits

The Frame Is the Story. At 651 grams in size 56, the R5 frame sits among the lightest production carbon road frames available. Cervelo achieves that number through FEA-driven carbon ply placement — each layer oriented for the specific load it carries rather than applied uniformly — combined with Squoval Max tube profiles that squeeze more stiffness and compliance from less material than round sections allow. The result is a chassis that transfers pedaling power with near-zero flex and returns that energy on climbs where cadence and wattage are at their peak. This is the same frame Visma-Lease a Bike races at the Tour de France. The groupset spec changes between builds; the frame doesn't.
BBright Solves a Real Engineering Problem. Most road bikes use a symmetric bottom bracket shell. BBright shifts the non-drive side bearing 11mm outboard, positioning it closer to the crank axle and dramatically increasing the lateral stiffness of the drivetrain interface. Pedaling efficiency improves — especially under the sustained high-torque efforts climbing demands — without widening the Q-factor or changing how the bike fits. It's one of several engineering decisions on the R5 that prioritize measurable performance gains over manufacturing simplicity.
Force eTap AXS Is Excellent Wireless Electronic Shifting. SRAM Force eTap AXS uses the same wireless system architecture as Red AXS — the same shift logic, the same AXS app integration, the same brake lever feel. Force is heavier by a few hundred grams across the full build and finished to a slightly lower specification. On a frame where the chassis and wheels carry the performance story, that trade-off makes sense. The $4,000+ difference between this build and the Red AXS spec buys a finer groupset, not a better-riding bike. The R5 Force AXS is not a compromised version of the R5 — it's a thoughtfully priced one.
Reserve 34|37 Wheels Are Purpose-Built for This Application. The asymmetric rim depths — 34mm front, 37mm rear — reflect how aerodynamics and handling interact differently at each end of the bike. The rear wheel sits in a more aerodynamically favorable position and benefits from additional depth. The front wheel affects steering precision and crosswind sensitivity, where a shallower rim is more manageable. At 1,300 grams for the pair, tubeless-ready with XDR freehubs and center-lock disc mounts, the Reserve 34|37 is a performance wheelset matched to the ambitions of the frame.

Final Take

The R5 is a specific bike for a specific purpose: climbing, racing, and riding fast on roads where weight and pedaling efficiency determine the outcome. It doesn't pretend to be an endurance bike or an all-road machine — the 34mm maximum tire clearance and pro-fit geometry tell you exactly what it's designed for. Within that purpose, it's as good as road bike engineering gets. The Force AXS build is the right starting point: wireless electronic shifting, a genuinely strong wheelset, and the same carbon frame that wins major races. If you're ready to ride a bike built around what it means to climb well, the Cervelo R5 Force AXS is the answer.

Cervelo R5 Force AXS Bike - Specifications

Frame Material:

Carbon

Fork:

Cervelo All-Carbon

Headset:

FSA SL IS2 1-1/4, 45-deg x 45-deg / 1-1/2, 36-deg x 45-deg

Seatpost:

Cervelo SP33 Carbon

Front Derailleur:

SRAM Force AXS E1

Rear Derailleur:

SRAM Force AXS E1

Crankset:

SRAM Force AXS E1 w/Power Meter

Chainrings:

48/35

Bottom Bracket:

SRAM DUB for BBright

Brake Calipers:

SRAM Force AXS E1 Hydraulic Disc

Rotors:

SRAM Paceline Centerlock

Shifters / Levers:

SRAM Force AXS E1

Cassette:

SRAM Force E1 12-speed 10-33

Chain:

SRAM Force E1 12-speed

Wheel - Front:

Reserve 34TA / DT Swiss 240 Hub / Tubeless Compatible / 12x100mm

Wheel - Rear:

Reserve 37TA / DT Swiss 240 Hub / Tubeless Compatible / 12x142mm

Stem:

Cervelo HB18 Carbon Integrated Bar/Stem

Handlebar:

Cervelo HB18 Carbon Integrated Bar/Stem

Saddle:

Prologo Nago R4 PAS Tirox Lightweight

Tires:

Vittoria Corsa Pro Speed TLR G2.0 700x26

Pedals:

Not Included

Accessories:

Cervelo Front Computer/Accessory Mount 887 / Cervelo Rear Accessory Mount

*Specifications are subject to change.

Cervelo R5 Force AXS Bike Geometry

Size:

C. Top Tube Length

506

526

545

565

581

595

D. Head Tube Length

89.6

109.3

132

156

182.8

203.7

E. Chain Stay Length

410

F. BB Drop

76.5

71.5

G. Seat Tube Angle

74.5

73.5

H. Head Tube Angle

I. Stand Over Height

699.7

731

757.4

779.1

803.4

822.2

J. Wheel Size

700c

K. Stack

496.1

520.2

544.6

567.5

590.7

610.7

L. Reach

368.7

376.5

383.3

391.1

400.3

408.3

Stem Length

80mm

90mm

100mm

110mm

120mm

Bar Width

36cm

38cm

40cm

M. Crank Length

165mm

170mm

172.5mm

The RA Perspective

The R5 doesn't need much selling — Vingegaard has done that on two Tour de France podiums. What we can add is some context about the Force AXS build specifically, and what it's like to actually ride this bike.

SRAM Force eTap AXS is genuinely excellent wireless electronic shifting. It's not a downgrade from Red in terms of functionality — the wireless system is identical, the shift logic is the same, and the brake feel is comparable. Force is heavier across the full groupset build, and the finish isn't as premium. But for a bike where the frame and wheels carry the most weight in the ride experience, that trade-off makes sense. We'd recommend the Force build to riders who want the R5 frame and platform and don't need the last 200 grams of weight savings. The chassis is the same. It climbs the same.

The Reserve 34|37 wheelset is worth noting separately. Asymmetric rim depth is a thoughtful choice for a climbing bike — 34mm up front keeps steering precise and crosswind-manageable on mountain descents; 37mm in the rear picks up aerodynamic benefit on flats without hurting the handling character. At 1,300 grams for the pair tubeless-ready, they're competitive in this weight class and well-matched to the frame.

The geometry is aggressive and pro-oriented. If you're coming from an endurance or all-road bike, the R5 will feel compact and forward — that's by design, not error. We'd strongly recommend a professional fit before finalizing size. Riders who buy this bike, fit it properly, and give it a few rides in the mountains consistently tell us it's the best-handling, best-climbing bike they've owned. That's what a purpose-built race bike built around this much engineering should feel like.
