5DEV R-SPEC Specialized Brose eCranks

5DEV R-SPEC Specialized Brose eCranks Info

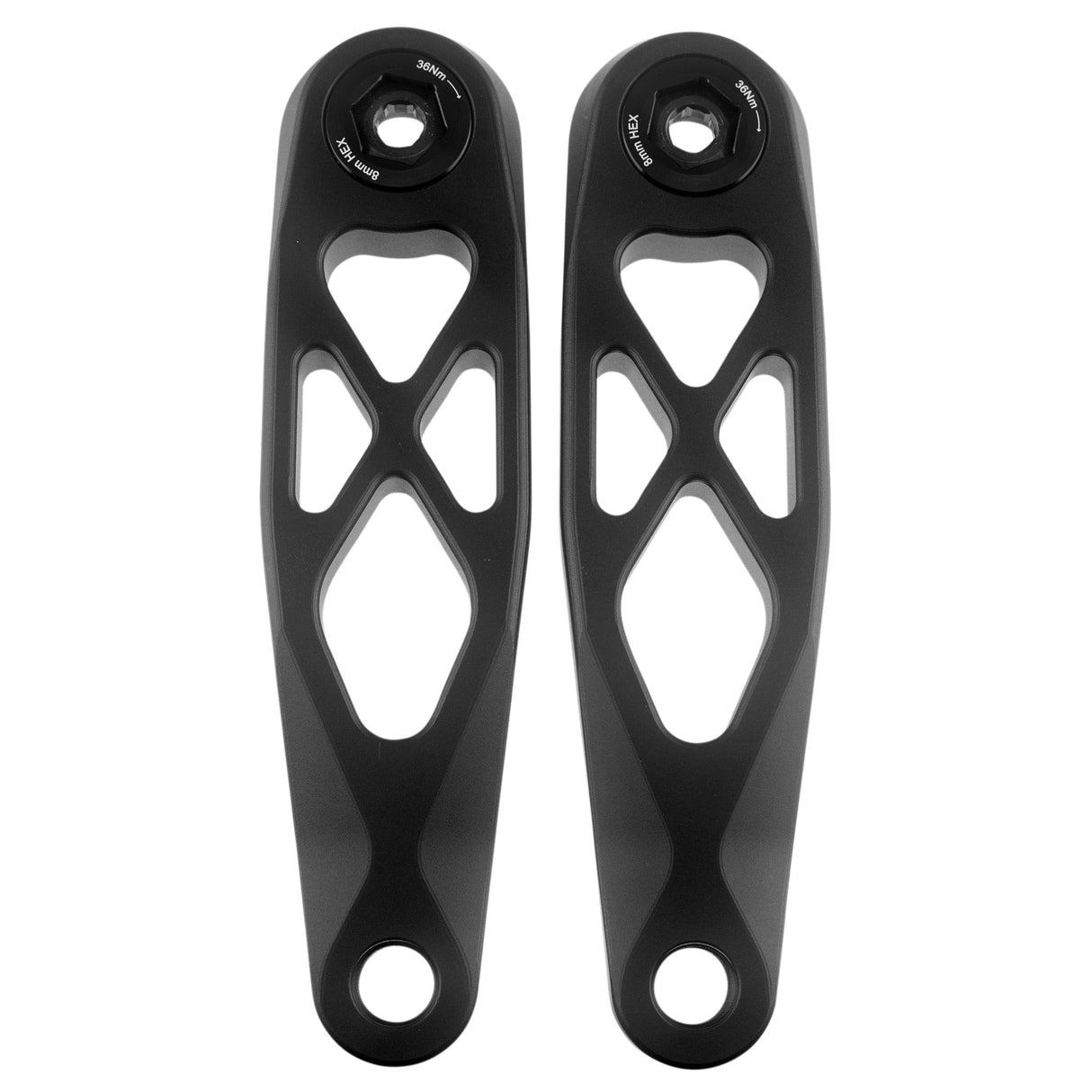

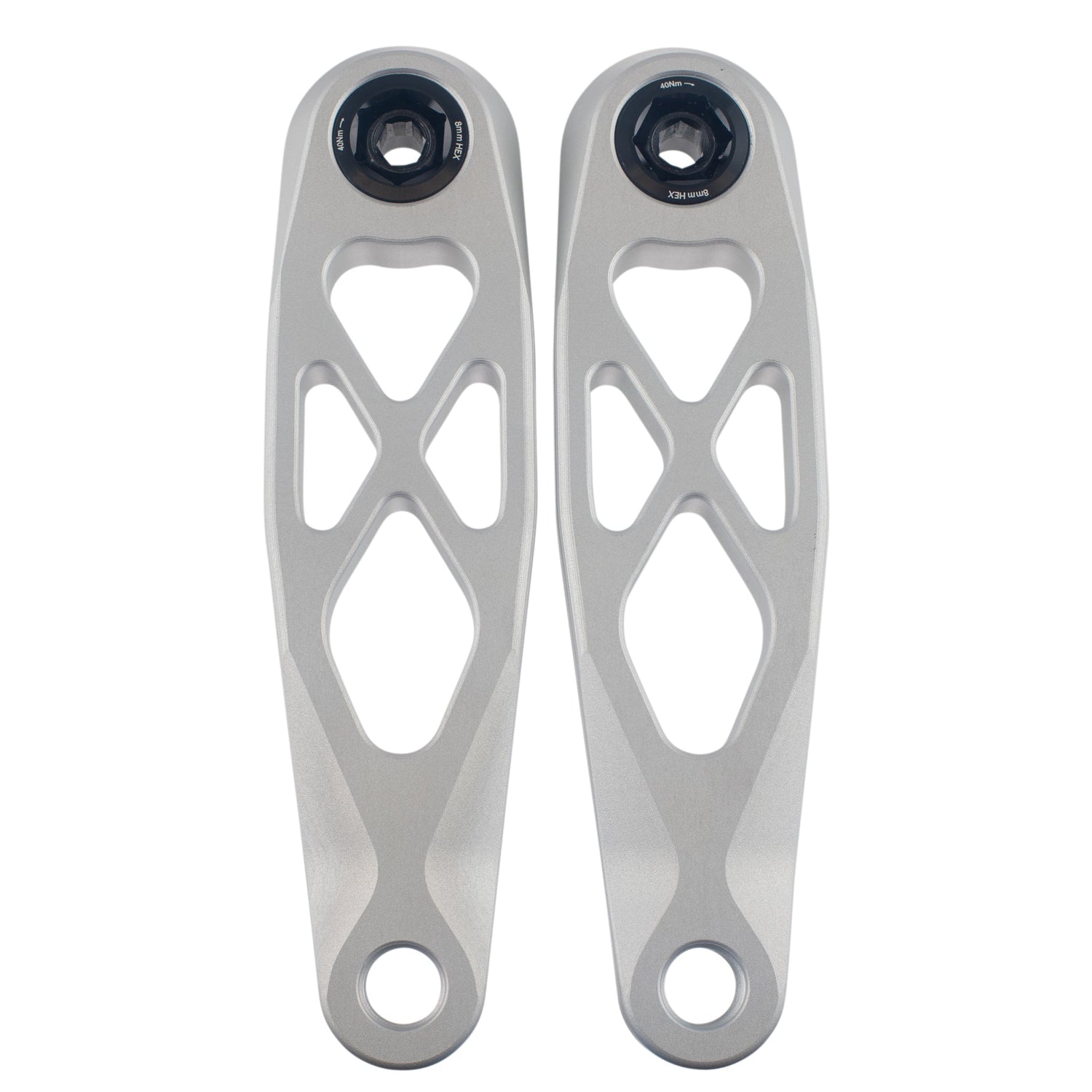

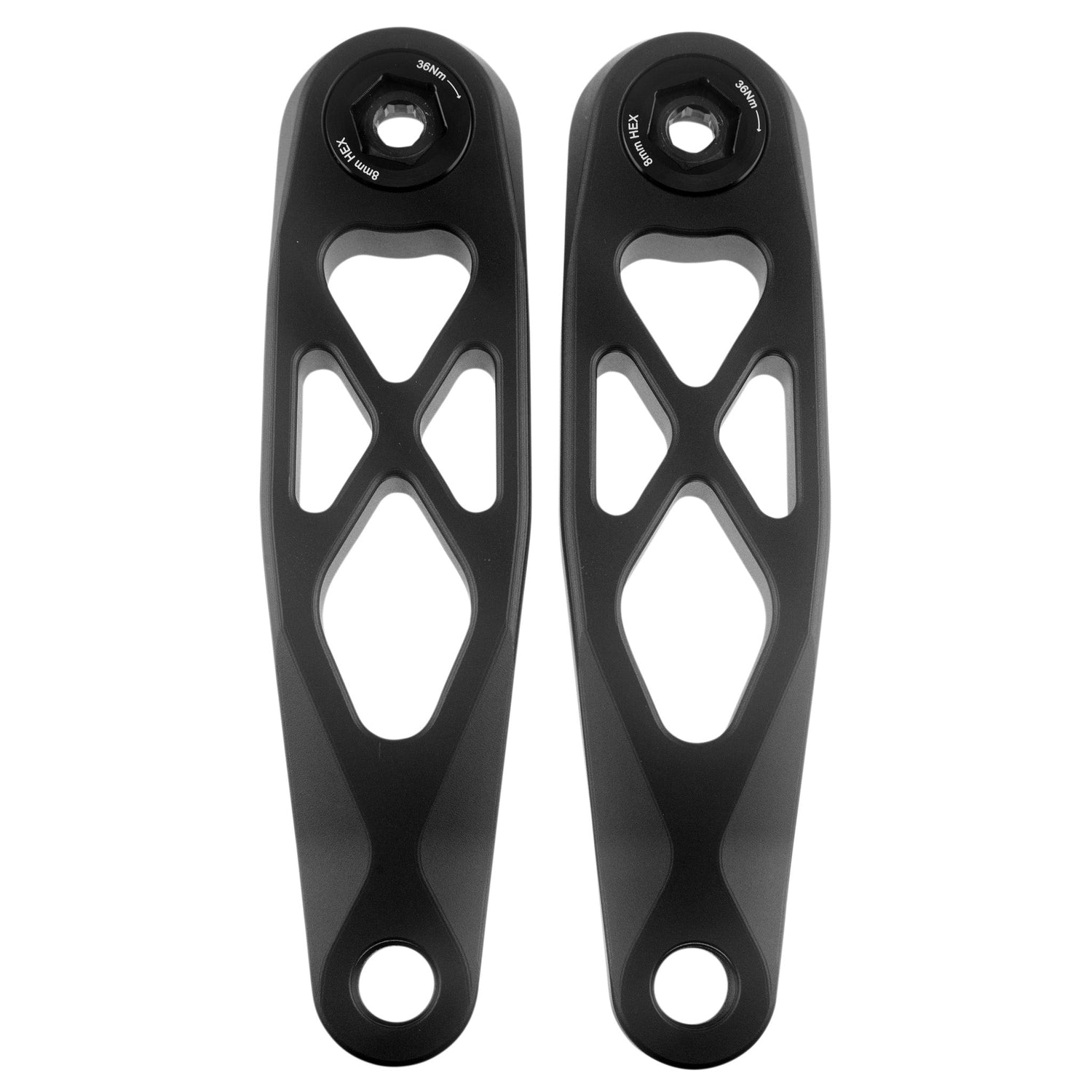

5DEV R-SPEC Specialized Brose eCranks are purpose-built for aggressive e-MTB riders running early-generation Specialized Levo and Kenevo platforms with Brose motors. Machined with 5DEV’s exclusive crank profile, these cranks are designed to reduce crank strikes when climbing through technical, rock-heavy terrain—helping you keep momentum where it matters most.

Each crank is CNC-machined from 7075-T651 aerospace-grade aluminum billet for exceptional stiffness and impact resistance under high torque loads. The refined arm shape improves ground clearance without compromising strength, making these cranks a confident upgrade for riders who push their e-bikes into demanding terrain.

A 182mm Q-factor (when installed on Specialized Levo/Kenevo) provides stability and control, while 155mm and 160mm length options allow riders to fine-tune pedal clearance and fit. The IS spline drive interface ensures a solid connection to compatible Brose motors. Installation is quick and service-friendly thanks to a robust 8mm alloy steel crank bolt and an integrated billet aluminum self-extractor.

Important Compatibility Note: These cranks are not compatible with Specialized SL eBikes or the 2025 Specialized Levo.

R-SPEC Specialized Brose eCranks Specs at a Glance

• Motor Compatibility: Brose (Specialized Levo & Kenevo, early generations)
• Material: 7075-T651 aerospace aluminum billet
• Drive Interface: IS spline
• Q-Factor: 182mm (Levo / Kenevo installation)
• Lengths: 155mm or 160mm
• Weight: 495g (155mm) including hardware
• Crank Bolt: Alloy steel, 8mm hex (40 Nm)
• Self-Extractor: Billet aluminum, 16mm hex (2 Nm)

Design Benefits

1. Improved Ground Clearance: Optimized arm profile reduces crank strikes.
2. Billet Strength: Aerospace-grade aluminum handles e-MTB torque and impacts.
3. Stable Ride Feel: Wide Q-factor supports control on technical climbs.
4. Easy Service: Integrated self-extractor simplifies removal and maintenance.

Final Take

The 5DEV R-SPEC Specialized Brose eCranks are a serious upgrade for riders on early-generation Levo and Kenevo e-MTBs who demand durability, clearance, and precision. If you’re riding technical terrain and want cranks built to take real abuse, these billet eCranks deliver confidence where it counts.
