5DEV R-SPEC Shimano Steps EP8 eCrank

5DEV R-SPEC Shimano Steps EP8 eCrank Info

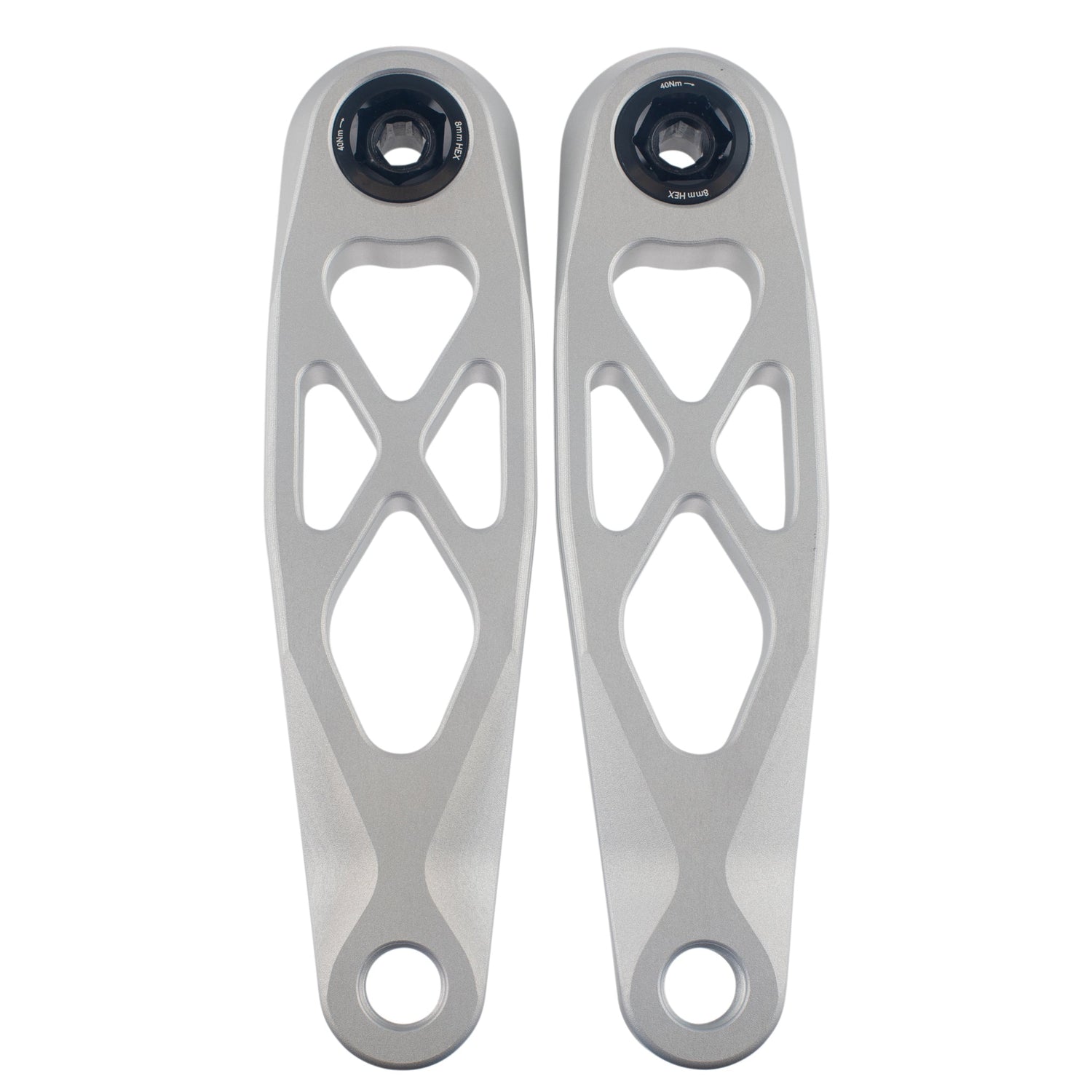

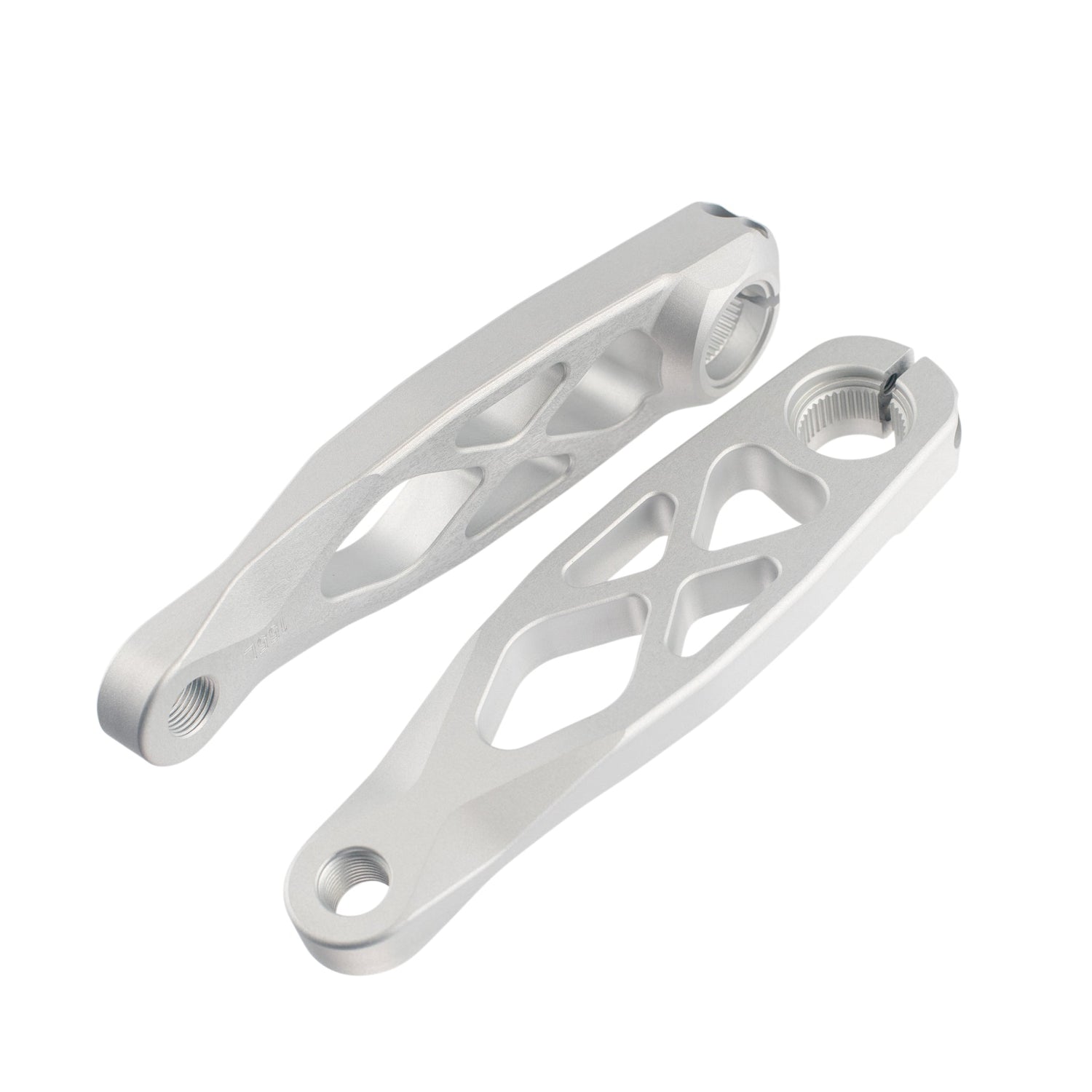

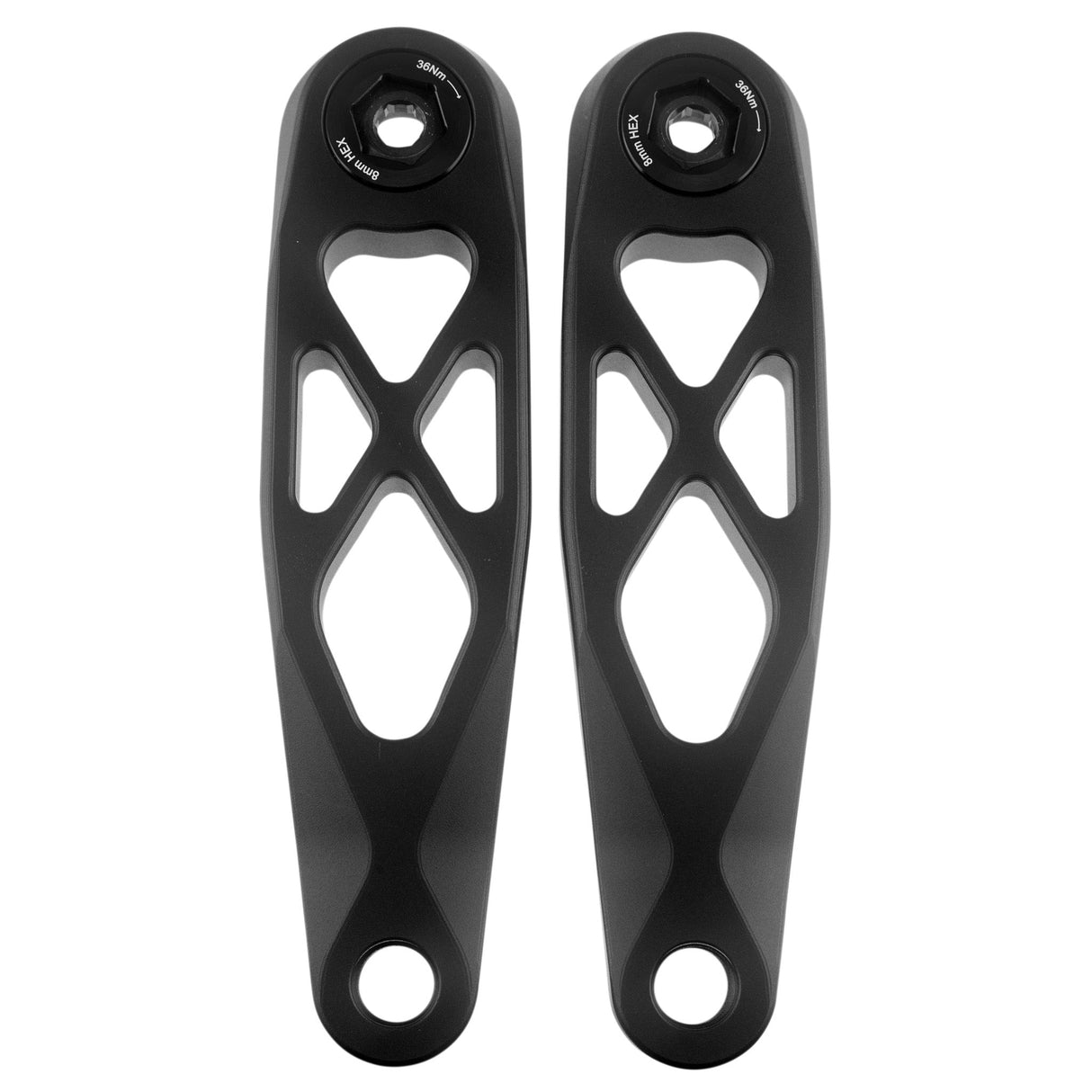

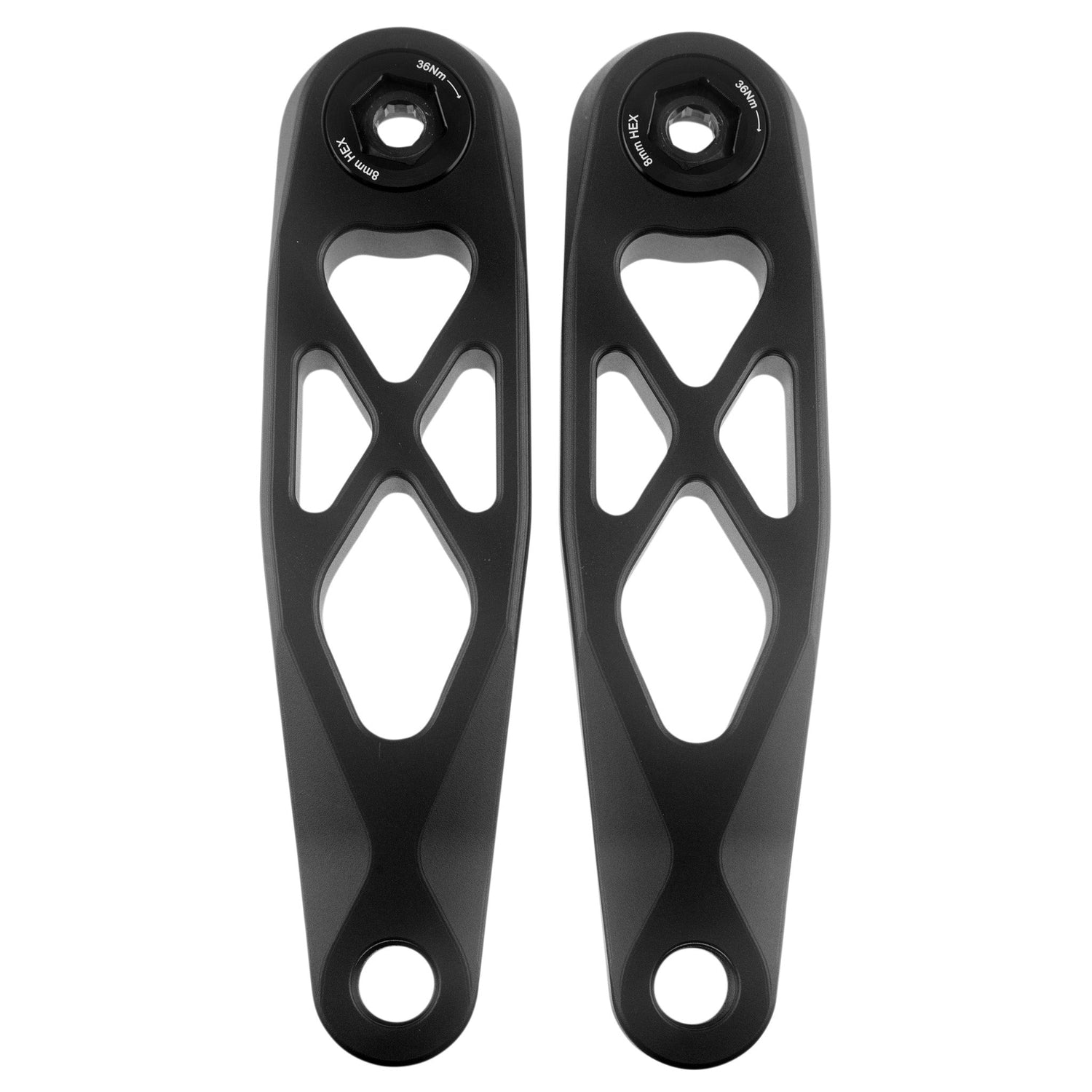

5DEV R-SPEC Shimano Steps EP8 eCrank arms are purpose-built for aggressive eMTB riding, where durability, clearance, and precise power delivery matter most. CNC-machined from billet aluminum in San Diego, California, these cranks bring the same design philosophy and machining quality found across the 5DEV lineup to Shimano’s EP8 and EP801 drive systems.

The R-SPEC eCranks are offered in shorter lengths to reduce pedal strikes and improve control through technical terrain. Shorter crank arms help riders maintain momentum over rocks and roots, improve cadence in steep climbs, and keep pedals clear in tight trail sections—all without sacrificing stiffness or strength under high motor-assisted loads.

Machined from 7075-T651 aluminum billet, the cranks deliver a rigid, confidence-inspiring feel while standing up to the repeated impacts and torque unique to modern eMTB riding. Designed specifically for Shimano Steps EP8 and EP801 spline interfaces, installation is straightforward when handled by an experienced eBike mechanic.

5DEV R-SPEC Shimano Steps EP8 eCrank Specs at a Glance

• Drive Compatibility: Shimano Steps EP8 and EP801
• Available Lengths: 155 mm, 160 mm
• Q-Factor: 182 mm (when installed on Shimano EP8)
• Material: CNC-machined 7075-T651 aluminum billet
• Weight: 440 g
• Manufacturing: Machined in San Diego, California, USA

Design Benefits

1. Reduced Pedal Strikes: Shorter crank lengths improve clearance in rocky and technical terrain.
2. Improved Climbing Control: Optimized cadence and smoother power delivery on steep, uneven climbs.
3. Billet Construction: High-strength aluminum provides excellent stiffness and long-term durability under eMTB loads.
4. EP8-Specific Interface: Designed to integrate cleanly with Shimano Steps EP8 and EP801 motors.

Installation Notes

Professional installation by an experienced eBike mechanic is strongly recommended. M6 x 1.0 bolts must be tightened to 14 N·m and installed with blue Loctite applied to each bolt and end cap. Bolt torque should be checked after the first ride to ensure proper retention.

Final Take

The 5DEV R-SPEC Shimano Steps EP8 eCrank is a smart upgrade for riders pushing their eMTB harder into technical terrain. With shorter lengths, precise machining, and proven billet construction, these cranks prioritize control, clearance, and reliability—exactly what aggressive EP8 riders demand.
