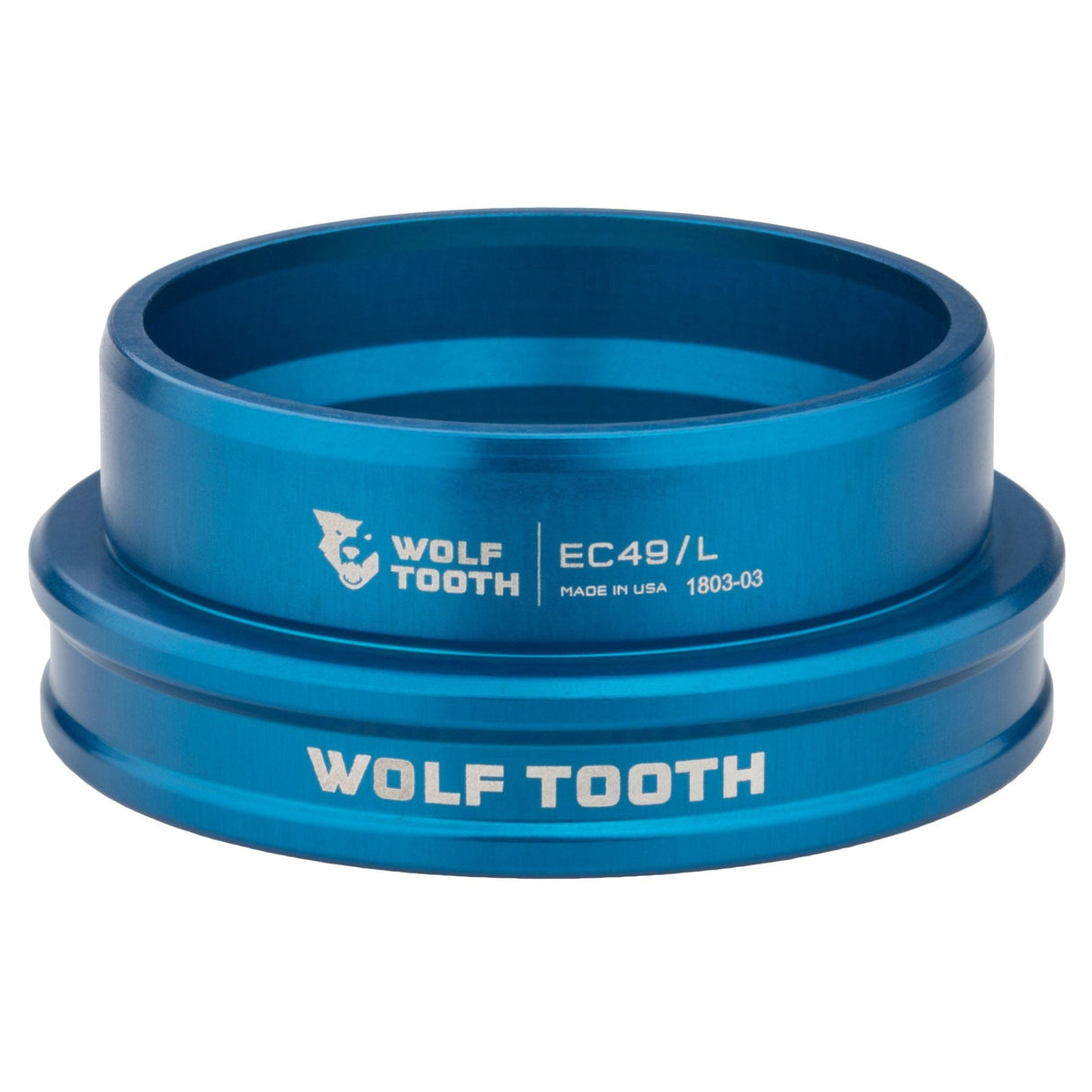

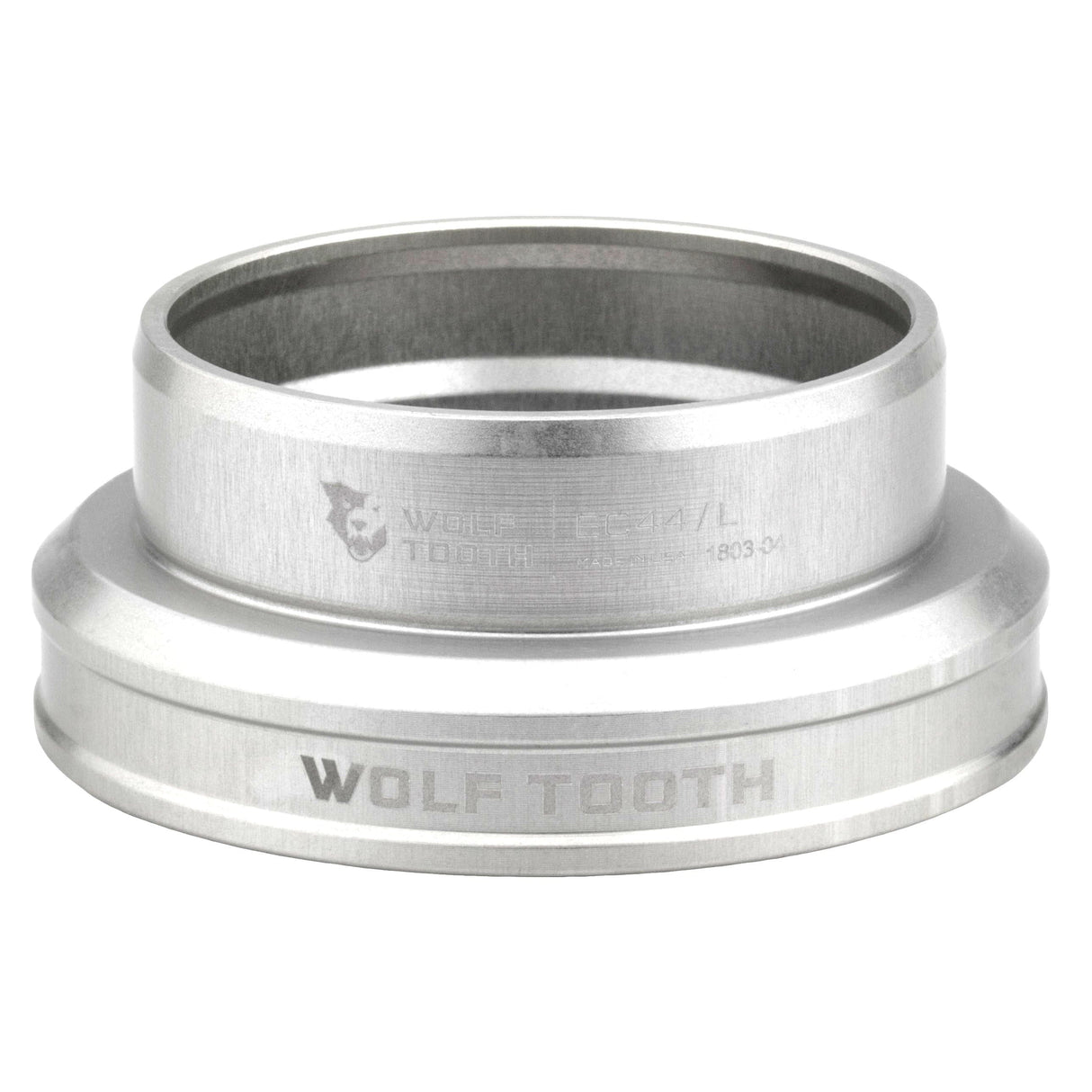

Wolf Tooth Performance EC Headsets - External Cup

Wolf Tooth Performance EC Headsets - External Cup Info

Wolf Tooth Performance EC Headsets – External Cup are built for riders who want long-term durability, precise steering, and a clean, customizable finish. Machined in the USA from aircraft-grade 6061 aluminum, these headsets deliver the same attention to detail Wolf Tooth is known for, with a focus on reliability in real-world riding conditions.

The Performance EC headset uses black oxide–coated chromium steel bearings and features three layers of custom sealing to protect against water, dirt, and grit. This sealing system significantly extends bearing life, making it an excellent choice for bikes that see frequent foul-weather riding, trail abuse, or year-round use. Despite the robust construction, the headset remains lightweight and responsive, preserving precise front-end feel.

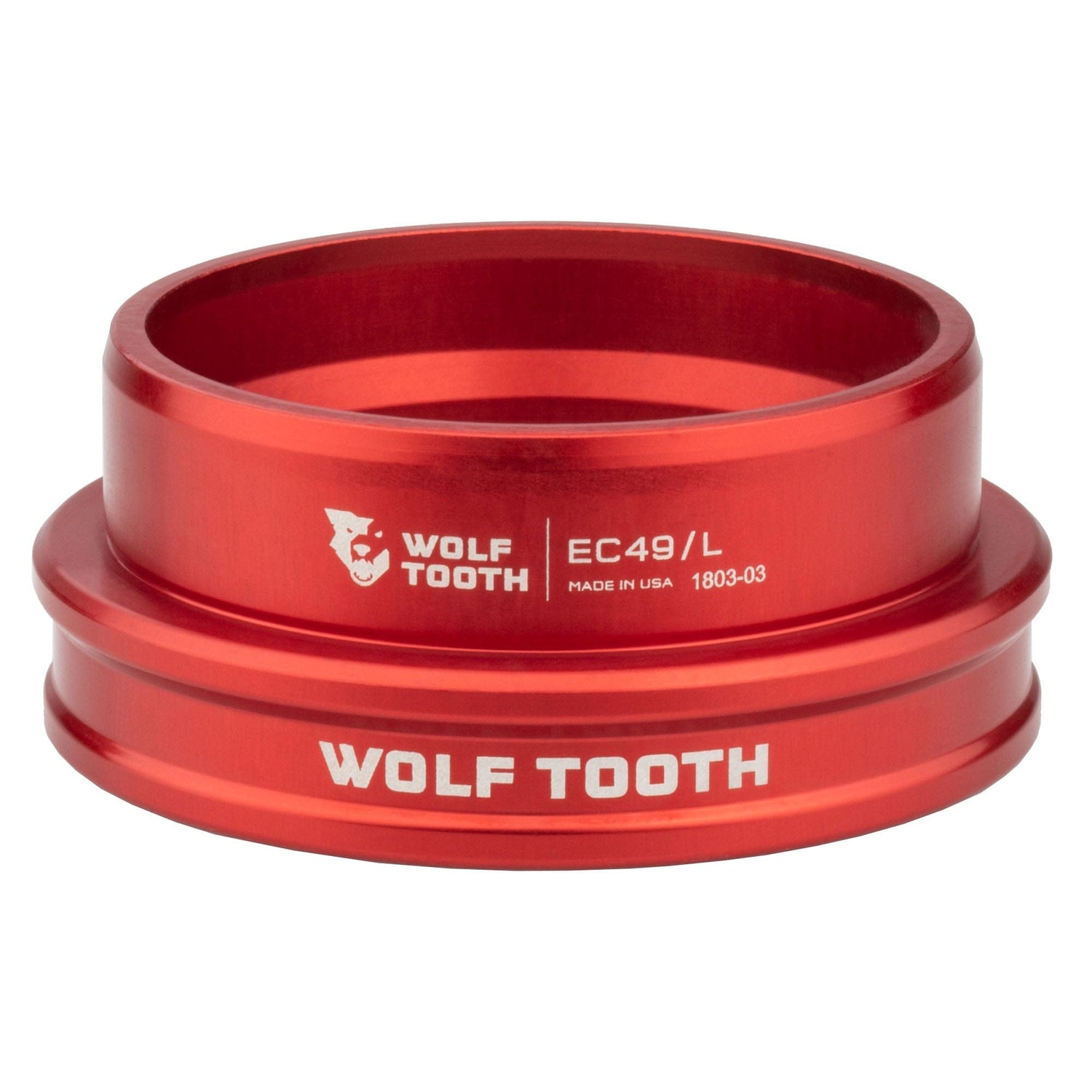

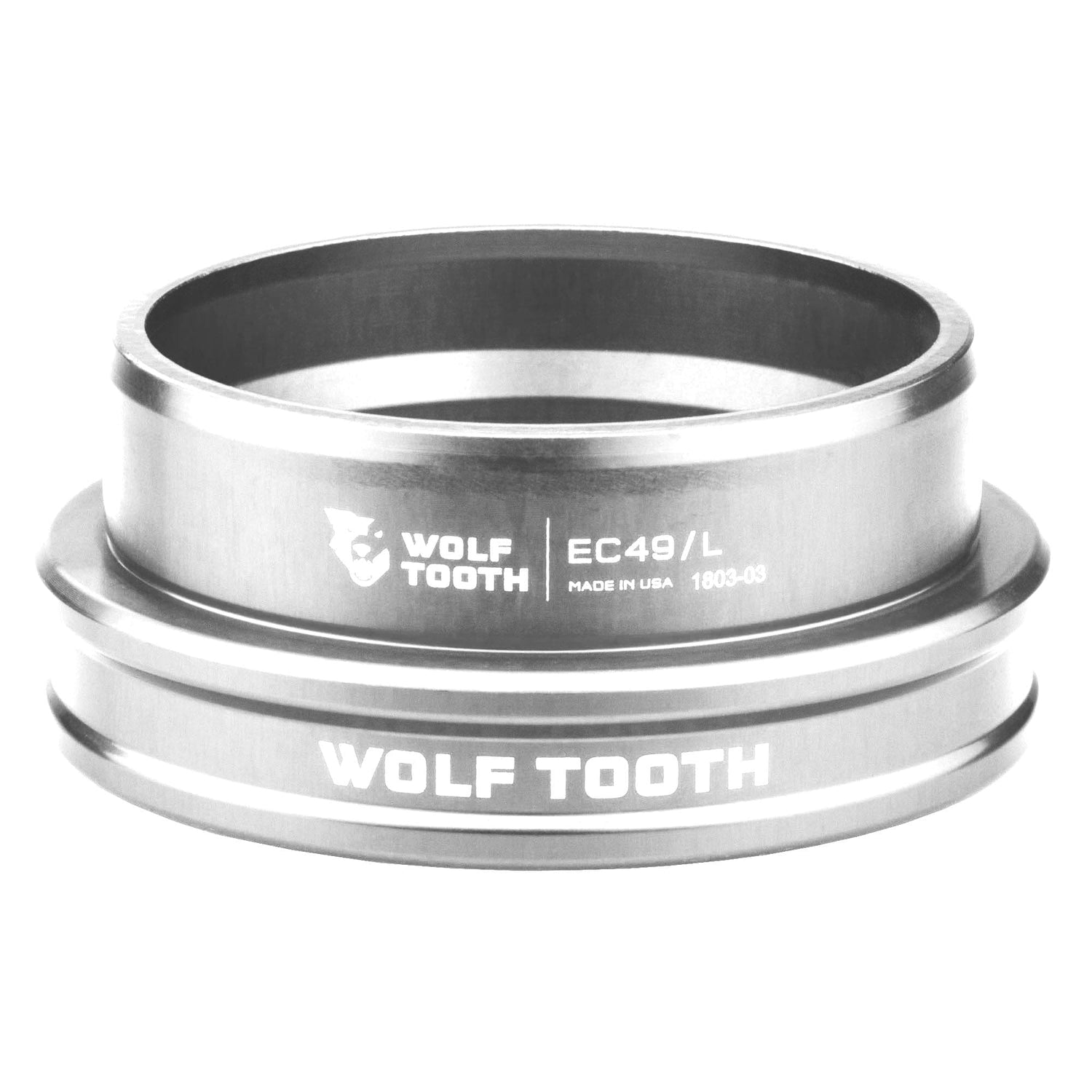

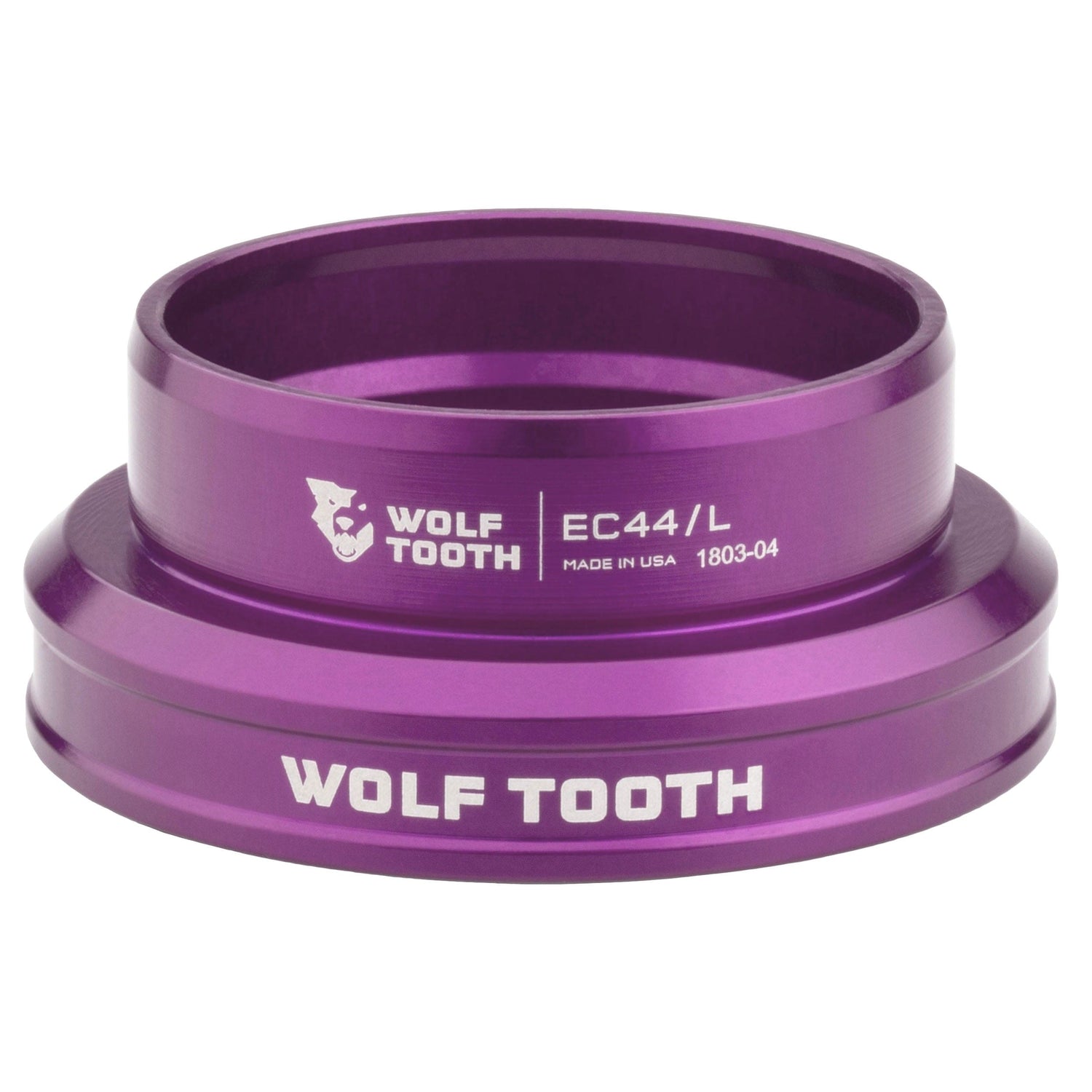

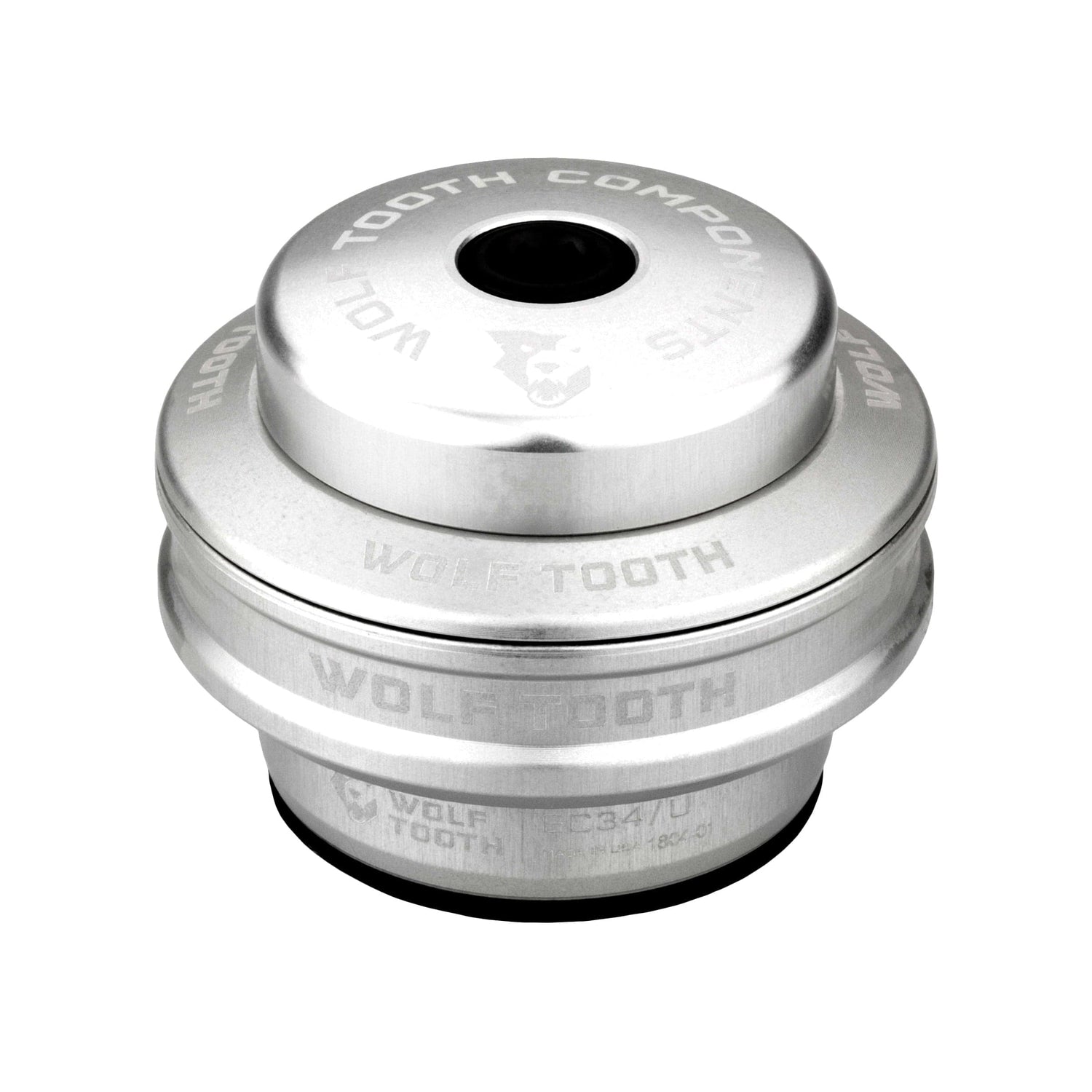

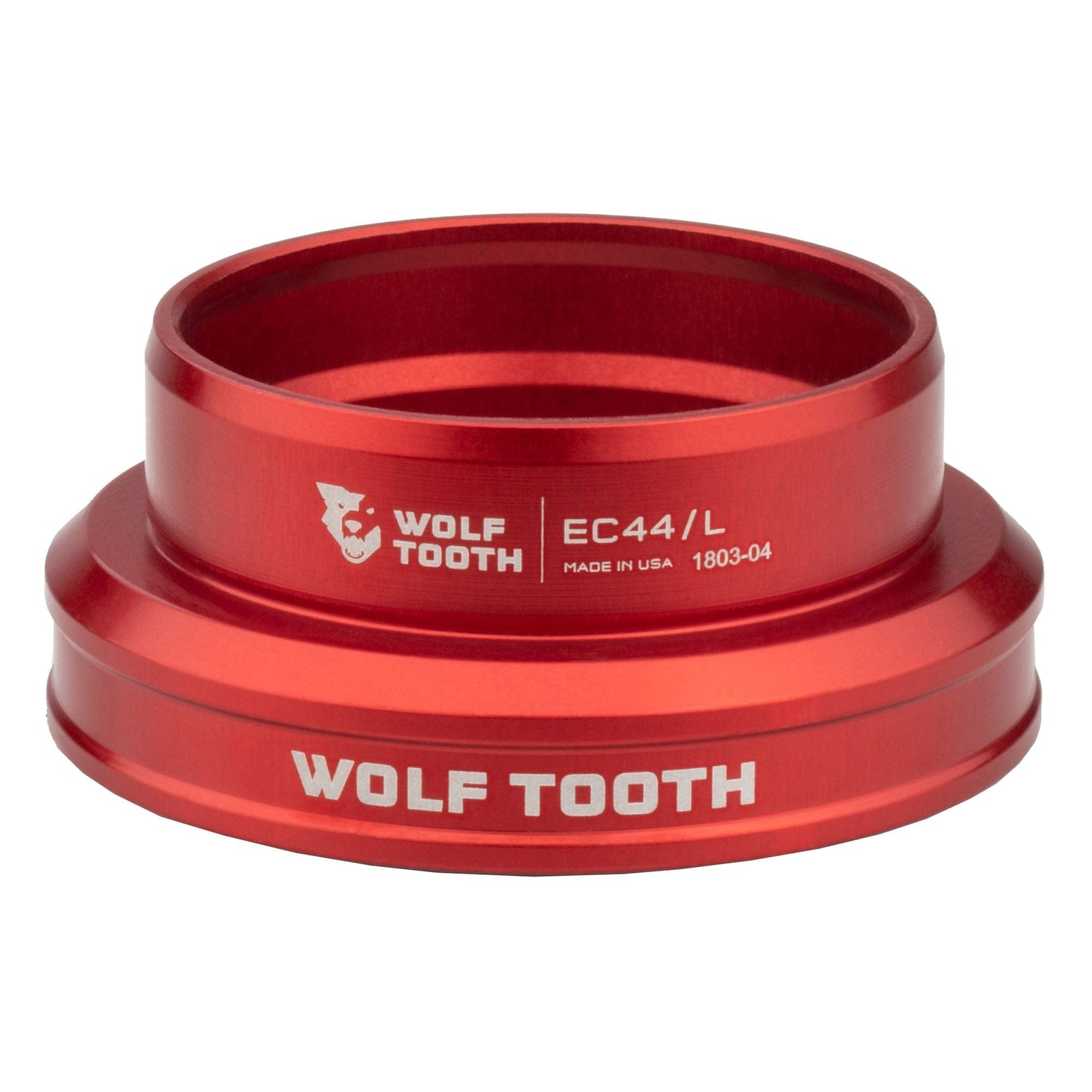

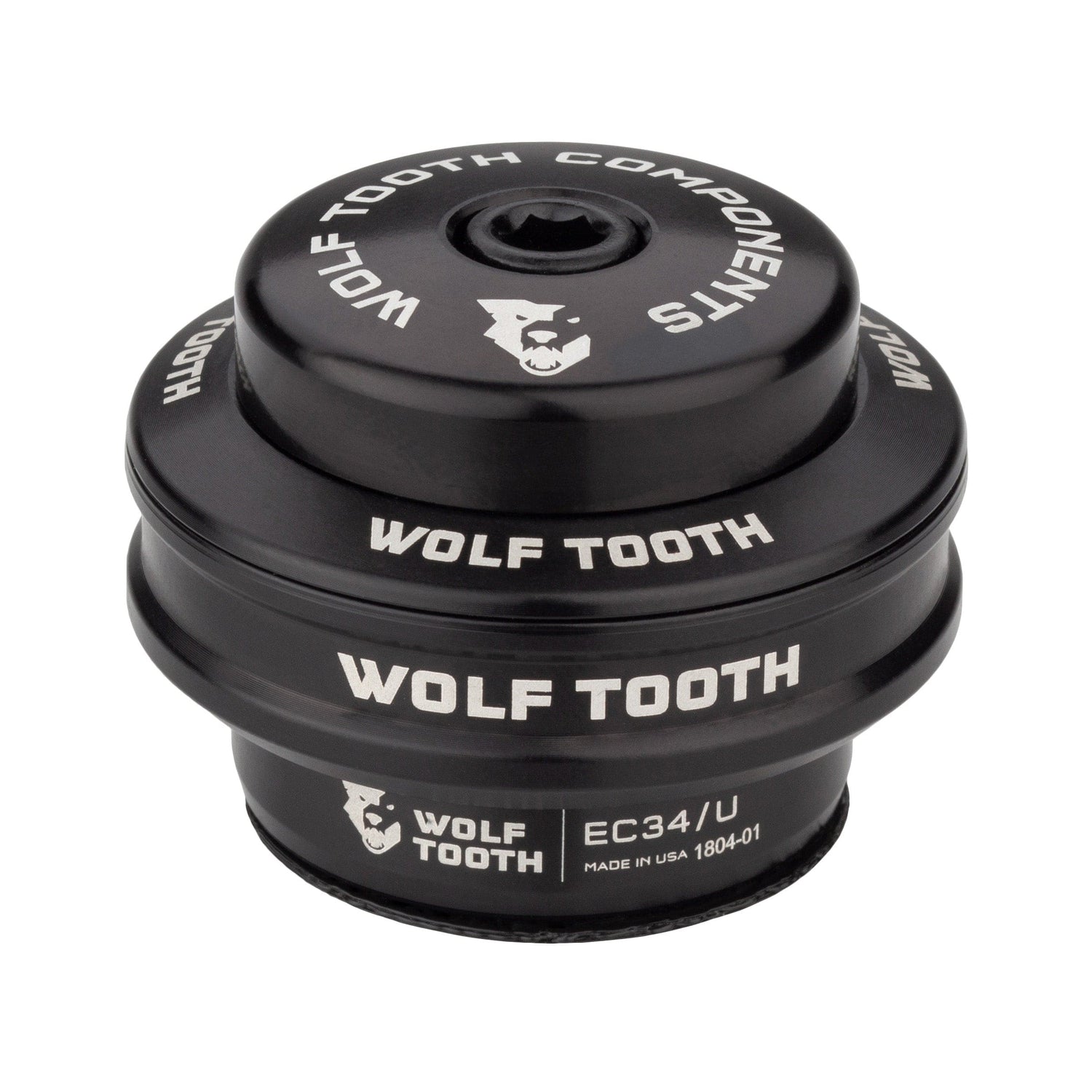

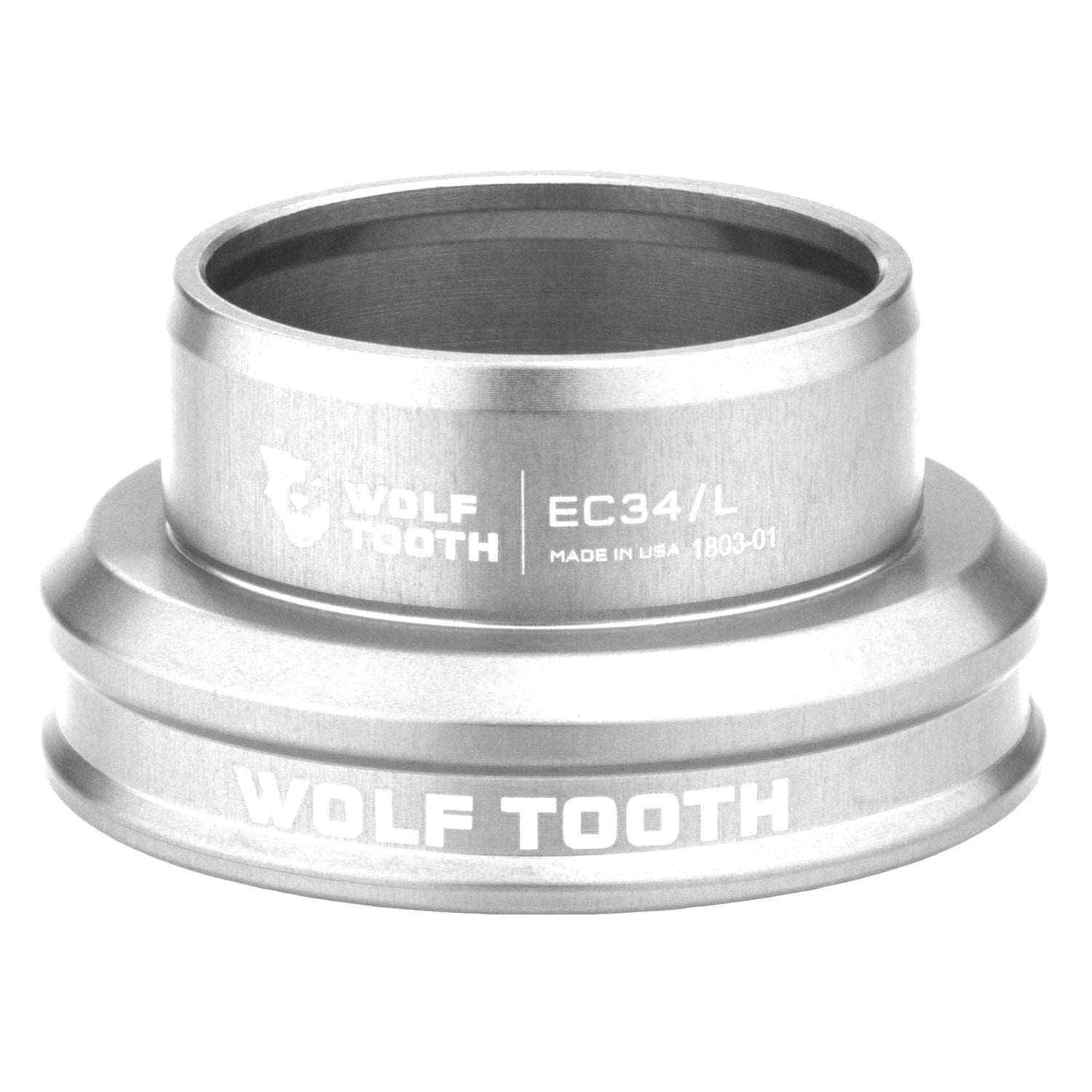

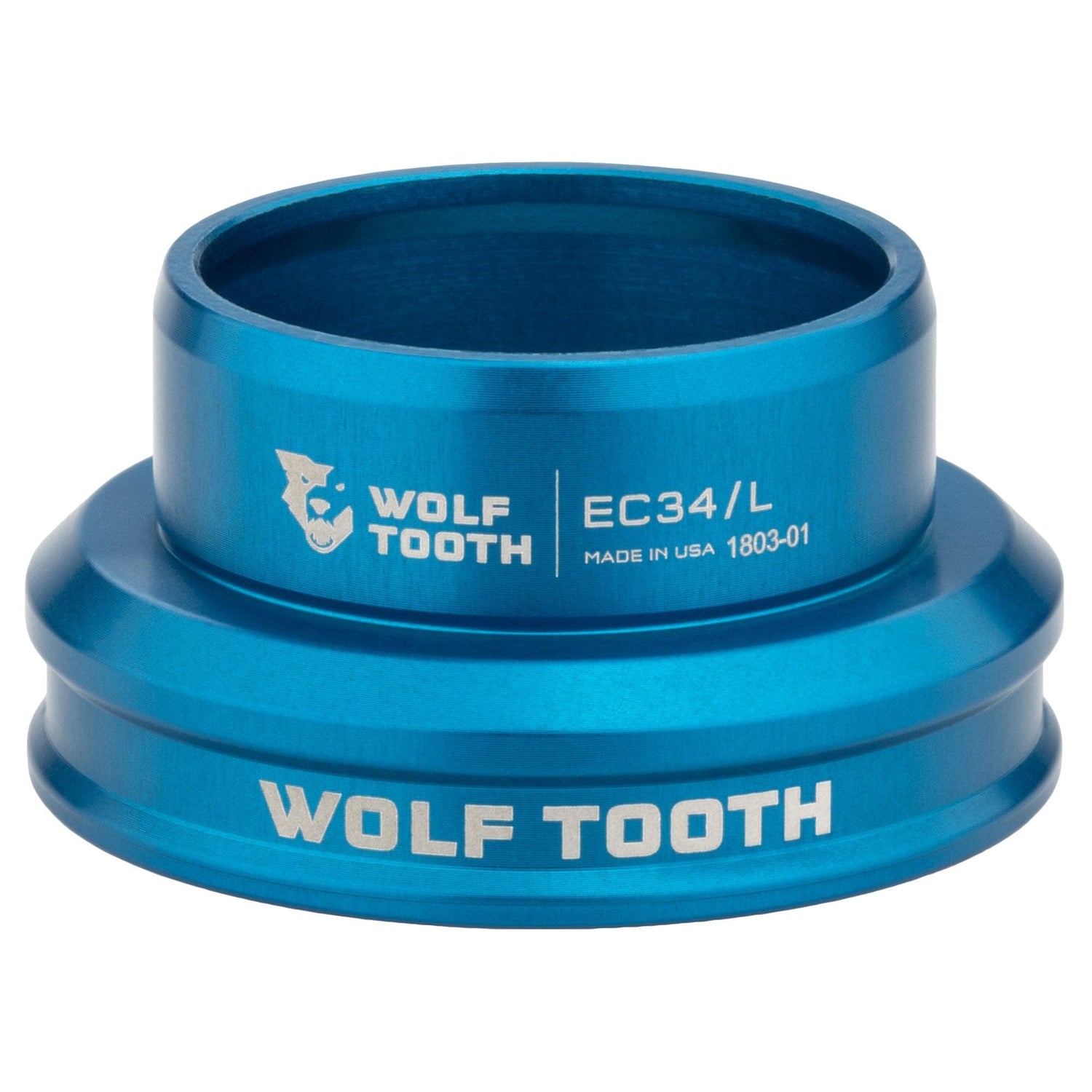

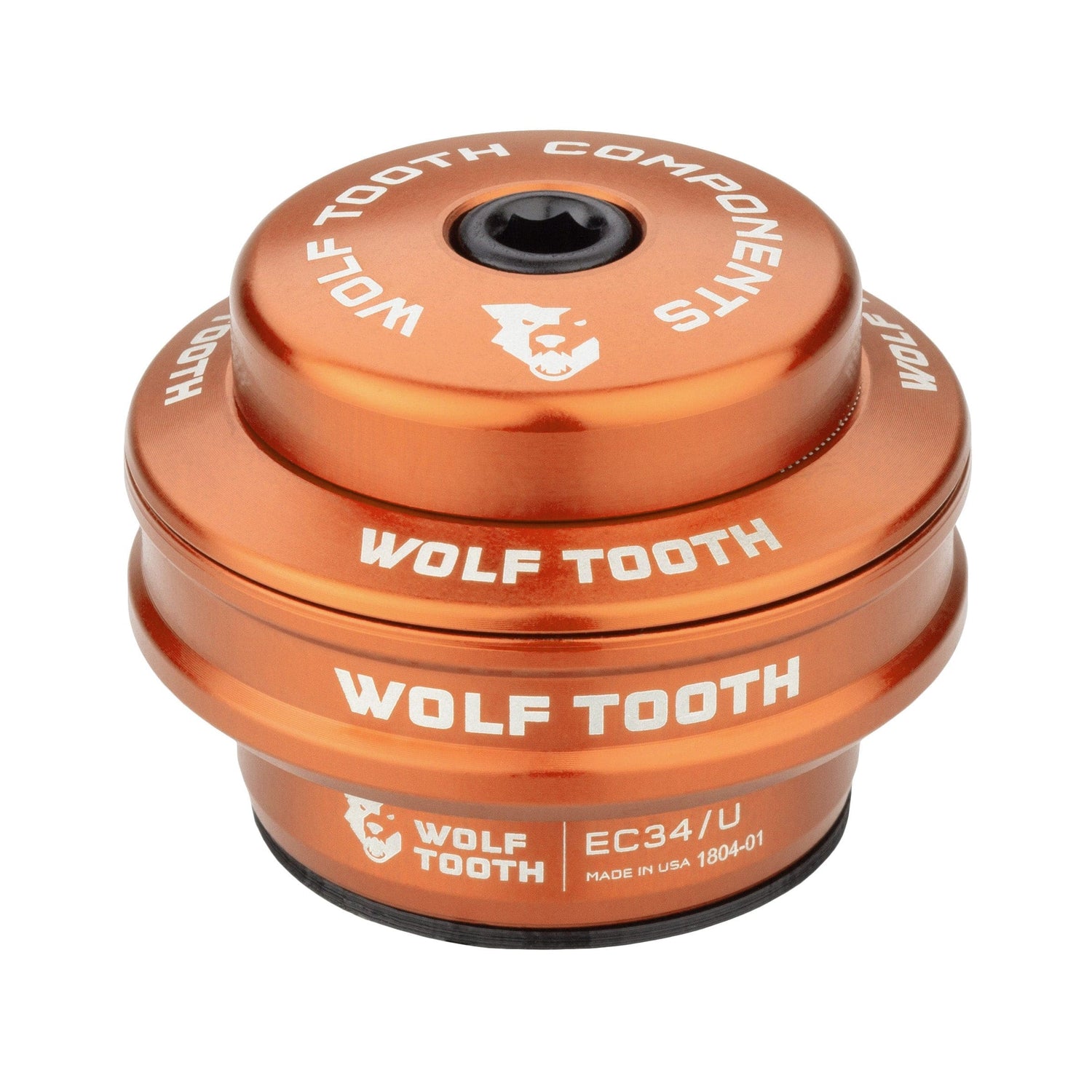

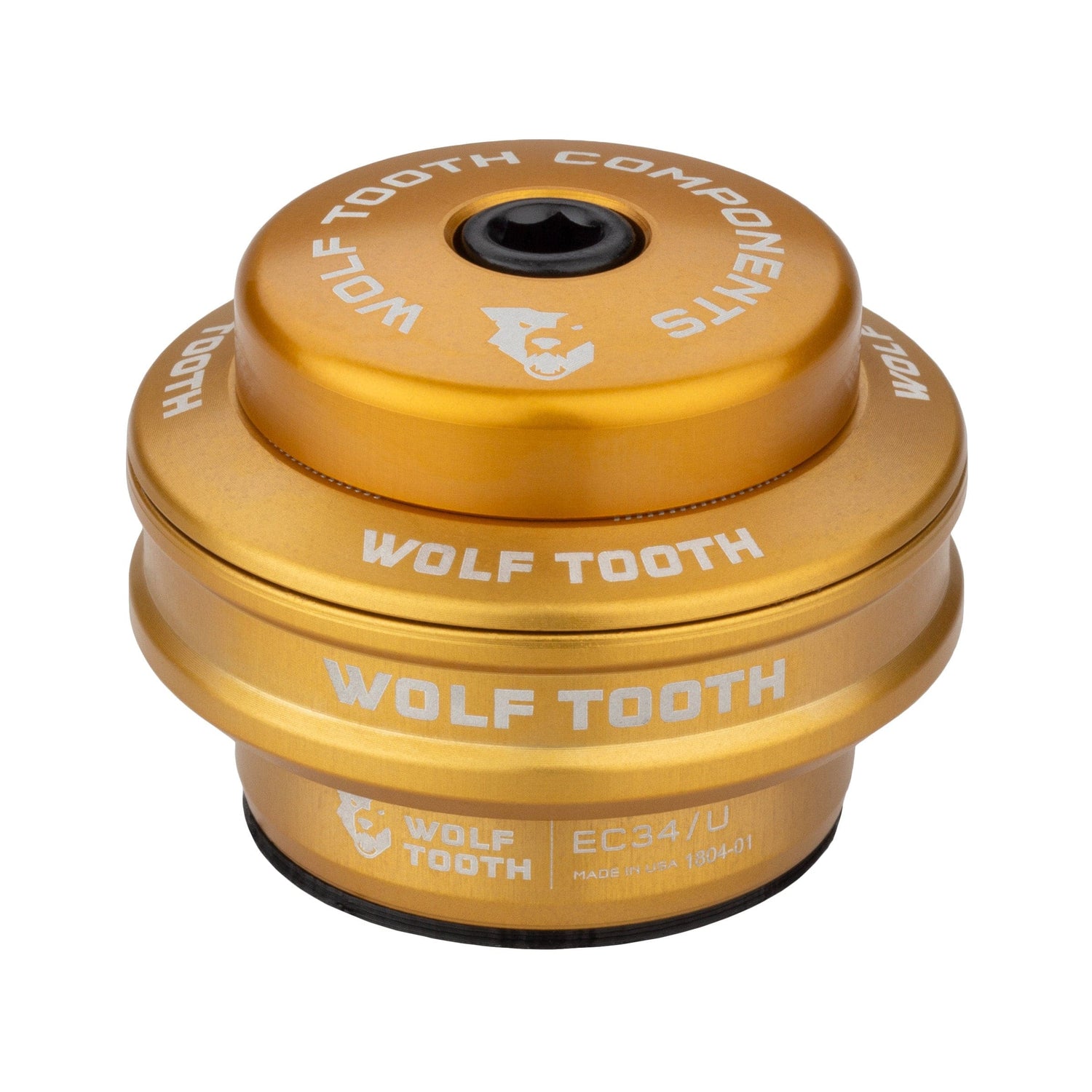

Designed for frames that use external bearing cups, these EC headsets position the bearings outside the frame for compatibility with a wide range of modern and classic head tube standards. Available in multiple colors, the Performance EC Headset also allows riders to add a subtle color accent without sacrificing performance.

Wolf Tooth Performance EC Headsets Specs at a Glance

• Headset Type: External Cup (EC).
• Material: CNC-machined 6061 aluminum.
• Bearings: Enduro black oxide–coated sealed bearings (upper and lower).
• Sealing: Three-level custom sealing system.

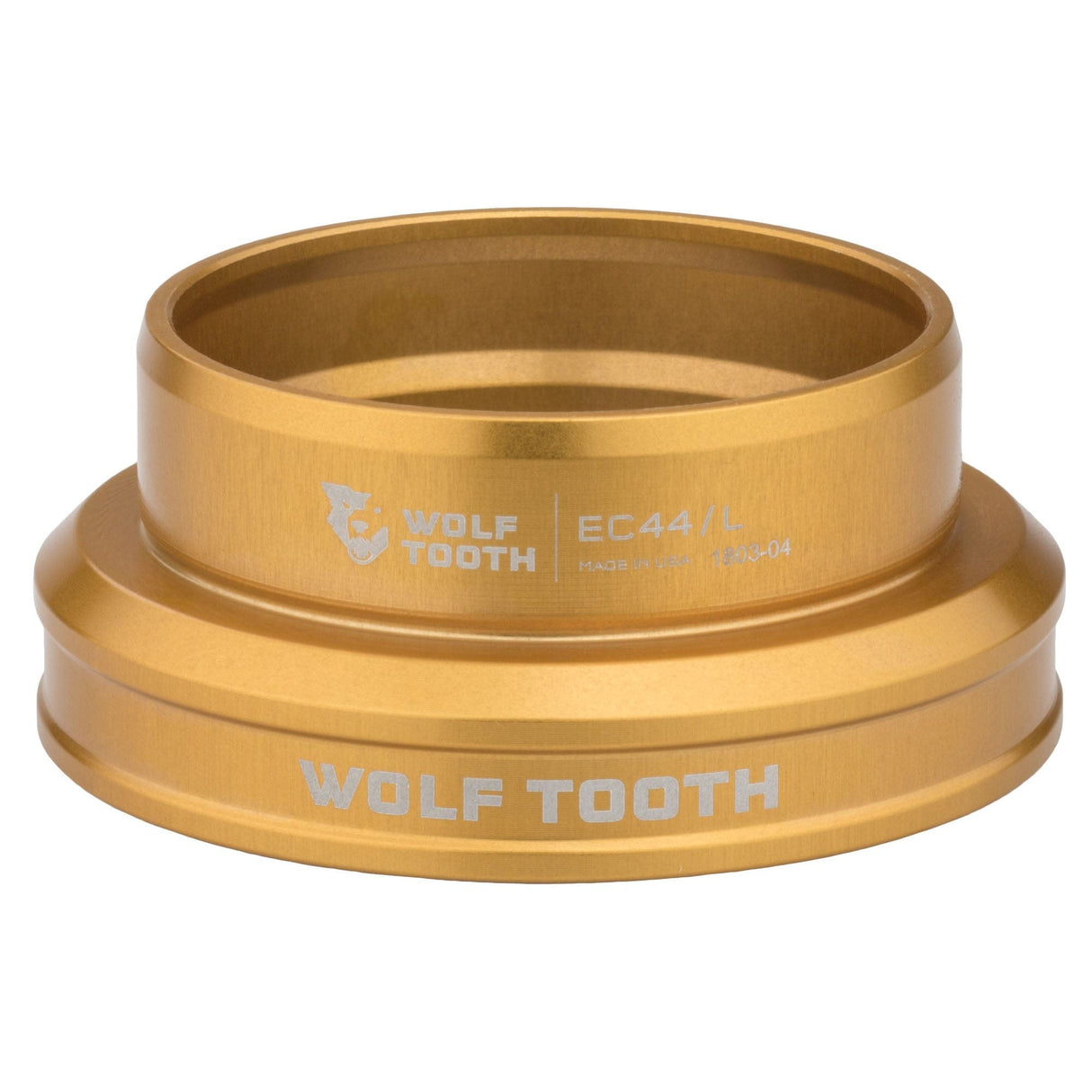

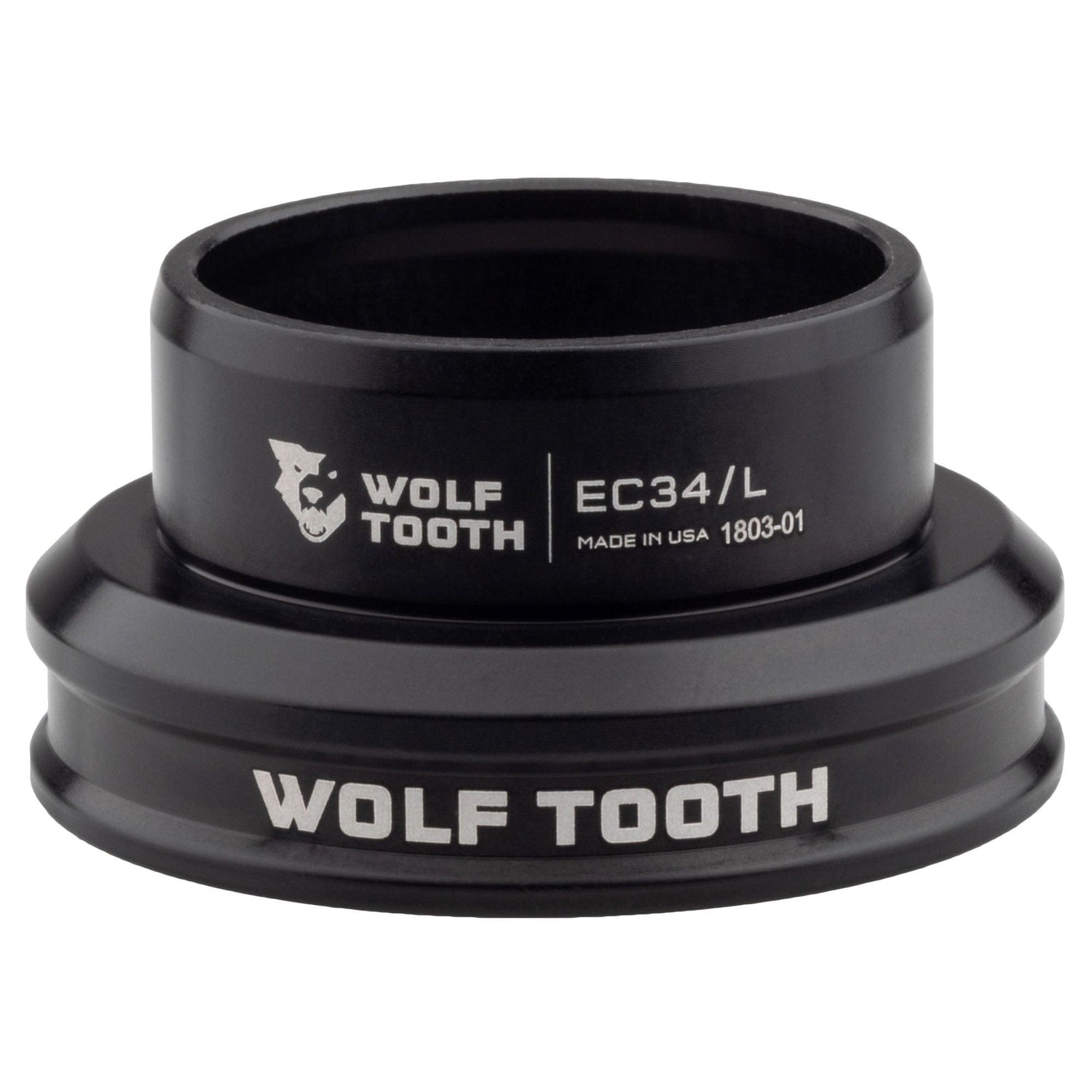

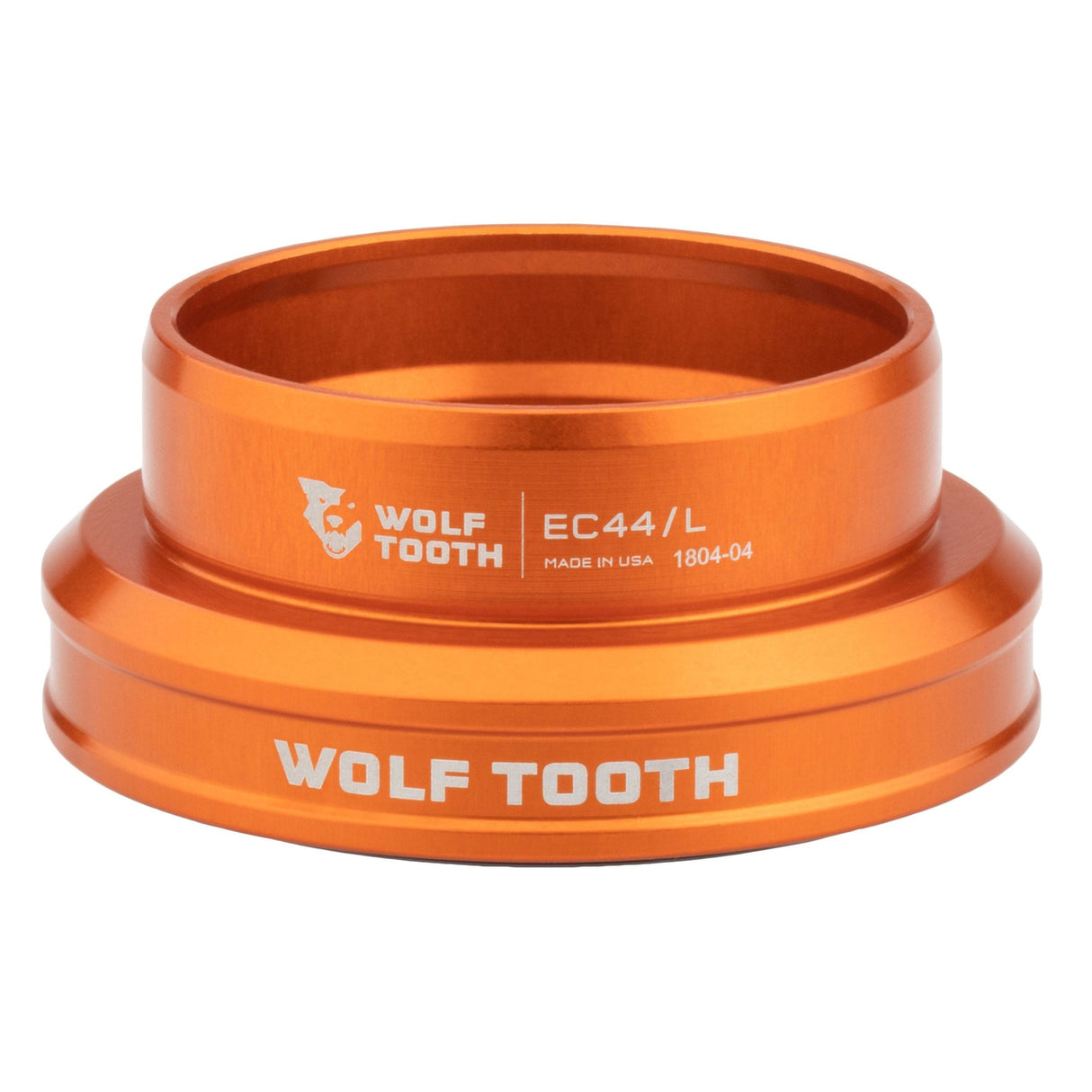

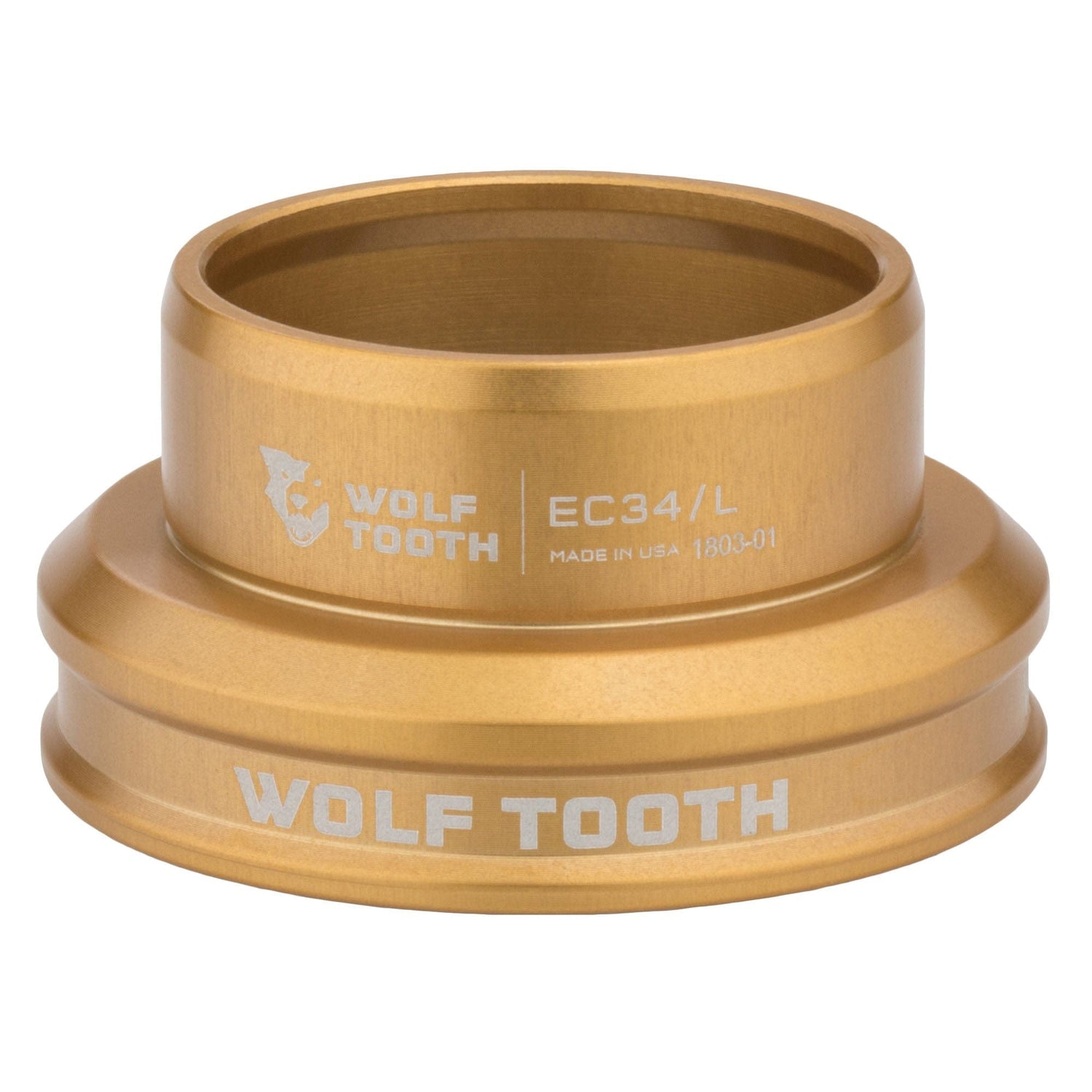

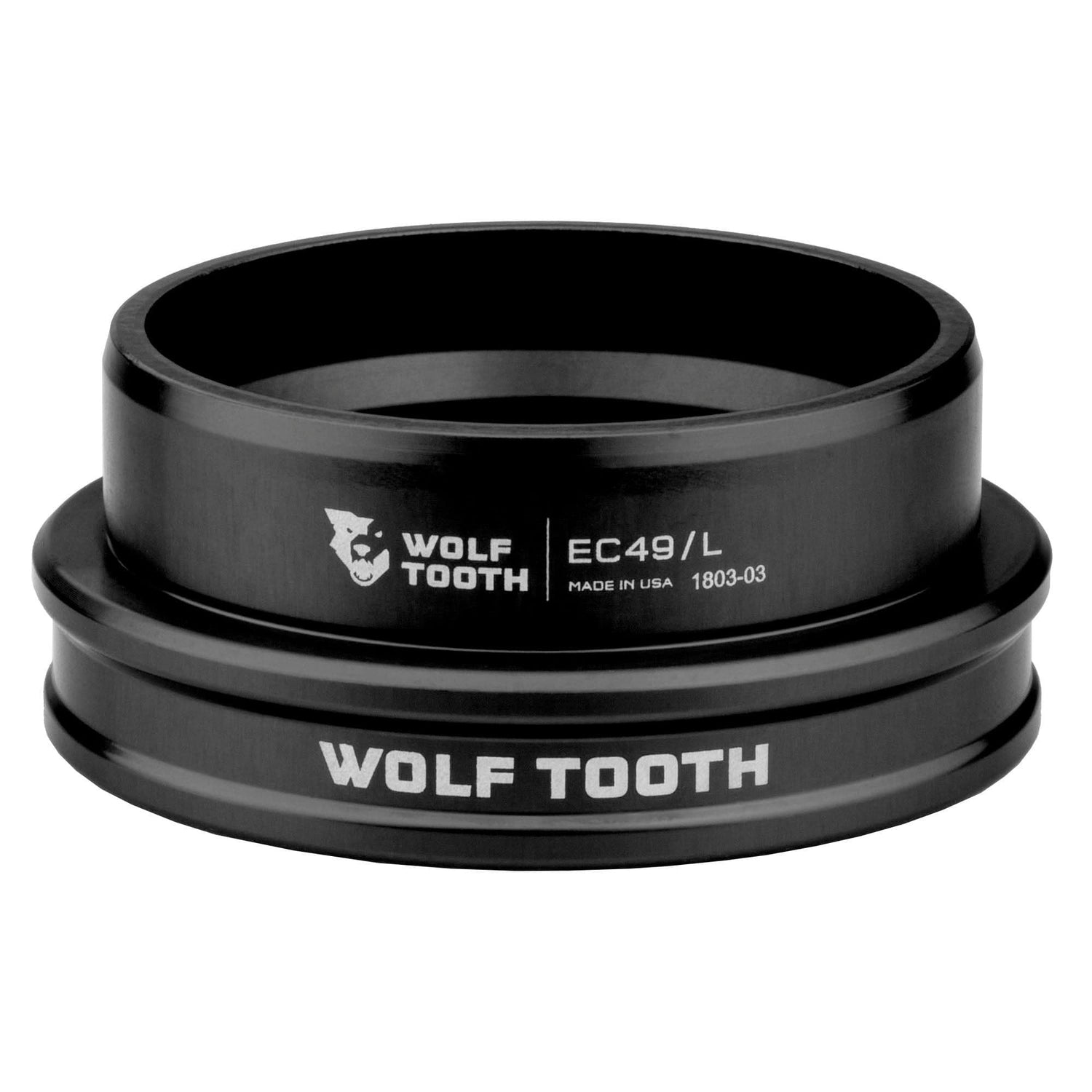

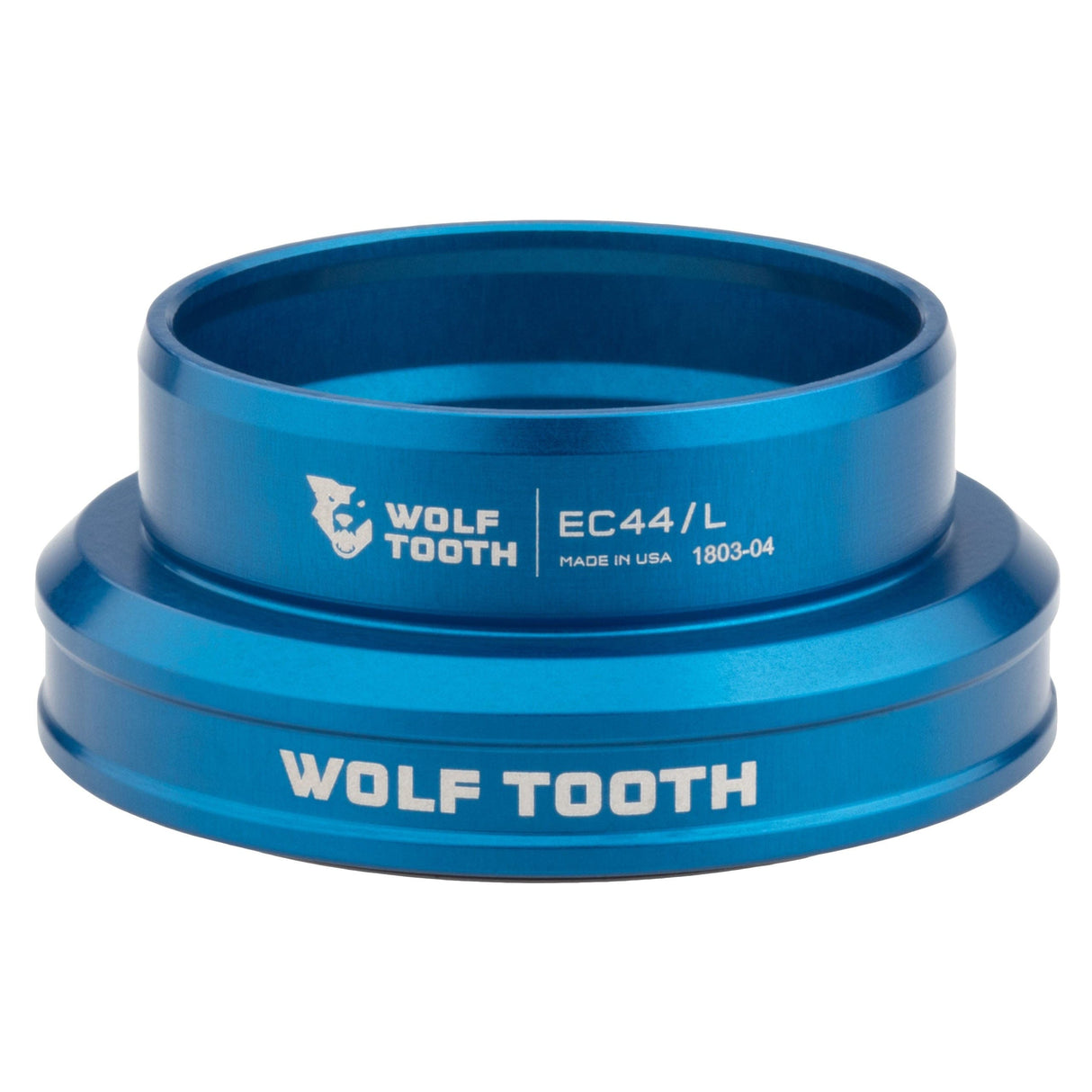

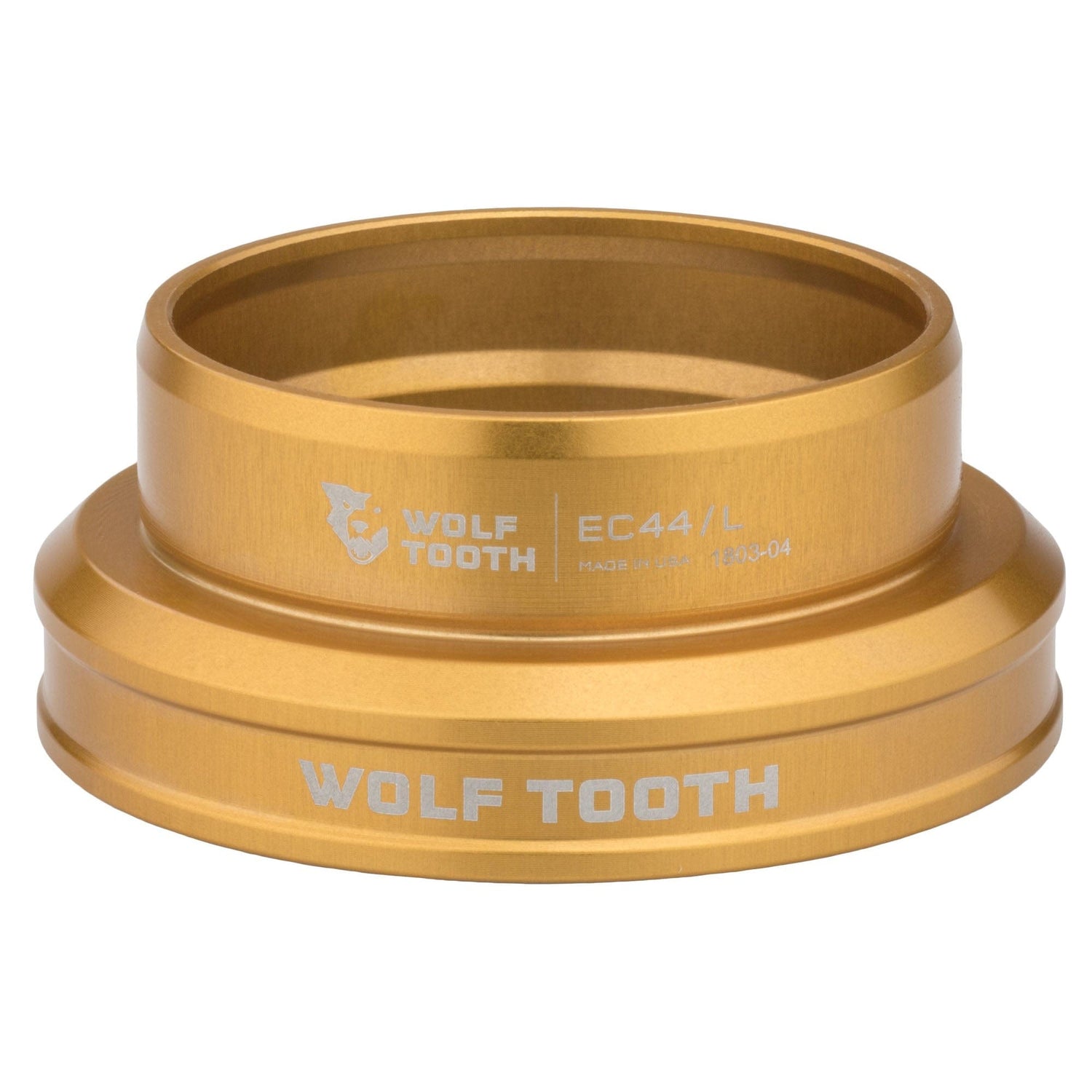

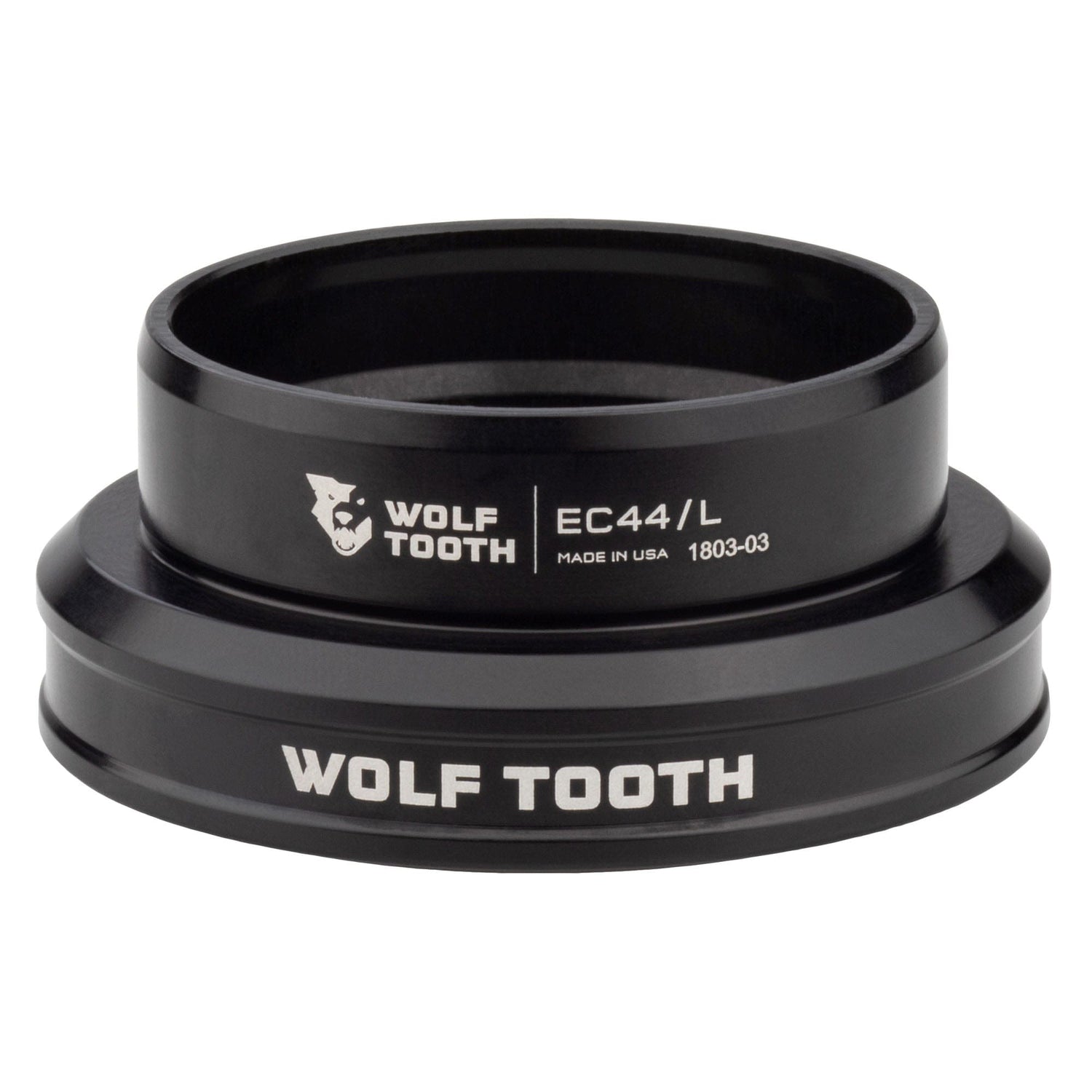

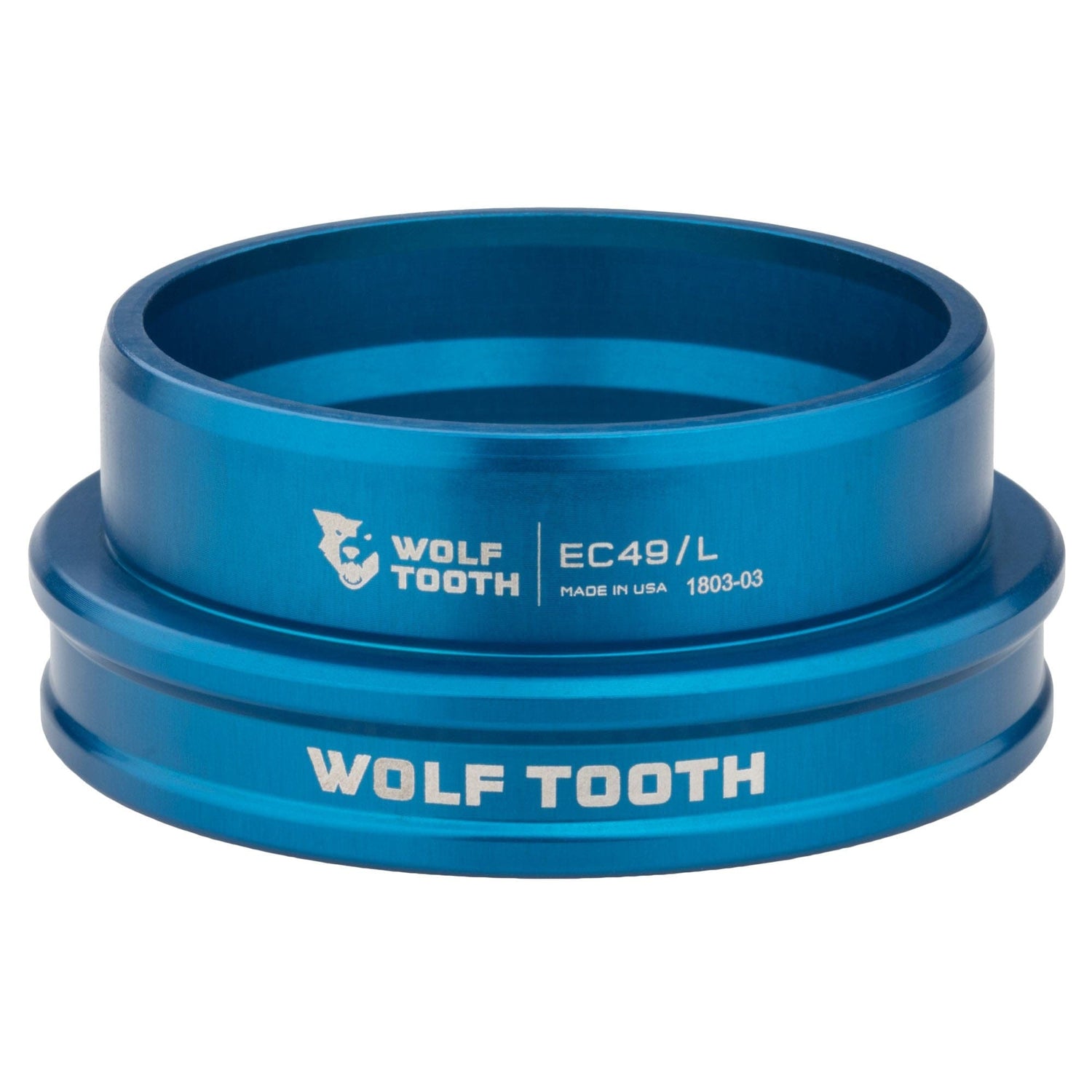

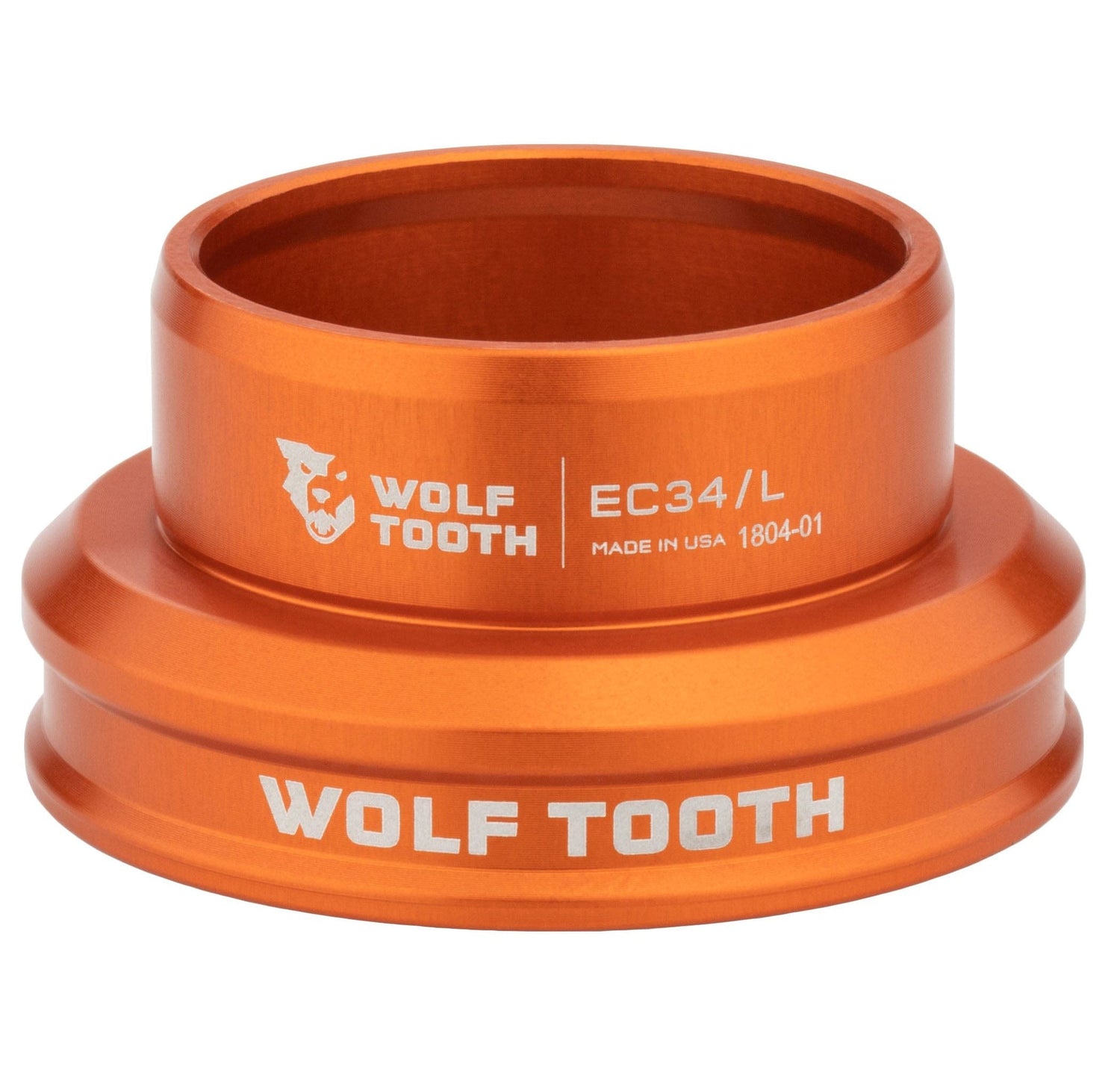

• Compatibility: Frames with 34mm upper head tube ID and 34mm, 44mm, or 49mm lower head tube ID.
• Stack Height: EC cups include a 10mm cup; upper and lower stacks vary by configuration.
• Warranty: One-year warranty.
• Made In: USA.

Design Benefits

1. Superior Bearing Protection: Multi-layer seals defend against contamination in harsh riding conditions.
2. External Cup Compatibility: Ideal for frames designed around EC headset standards.
3. Precision Steering: Tight tolerances and quality bearings deliver smooth, consistent handling.

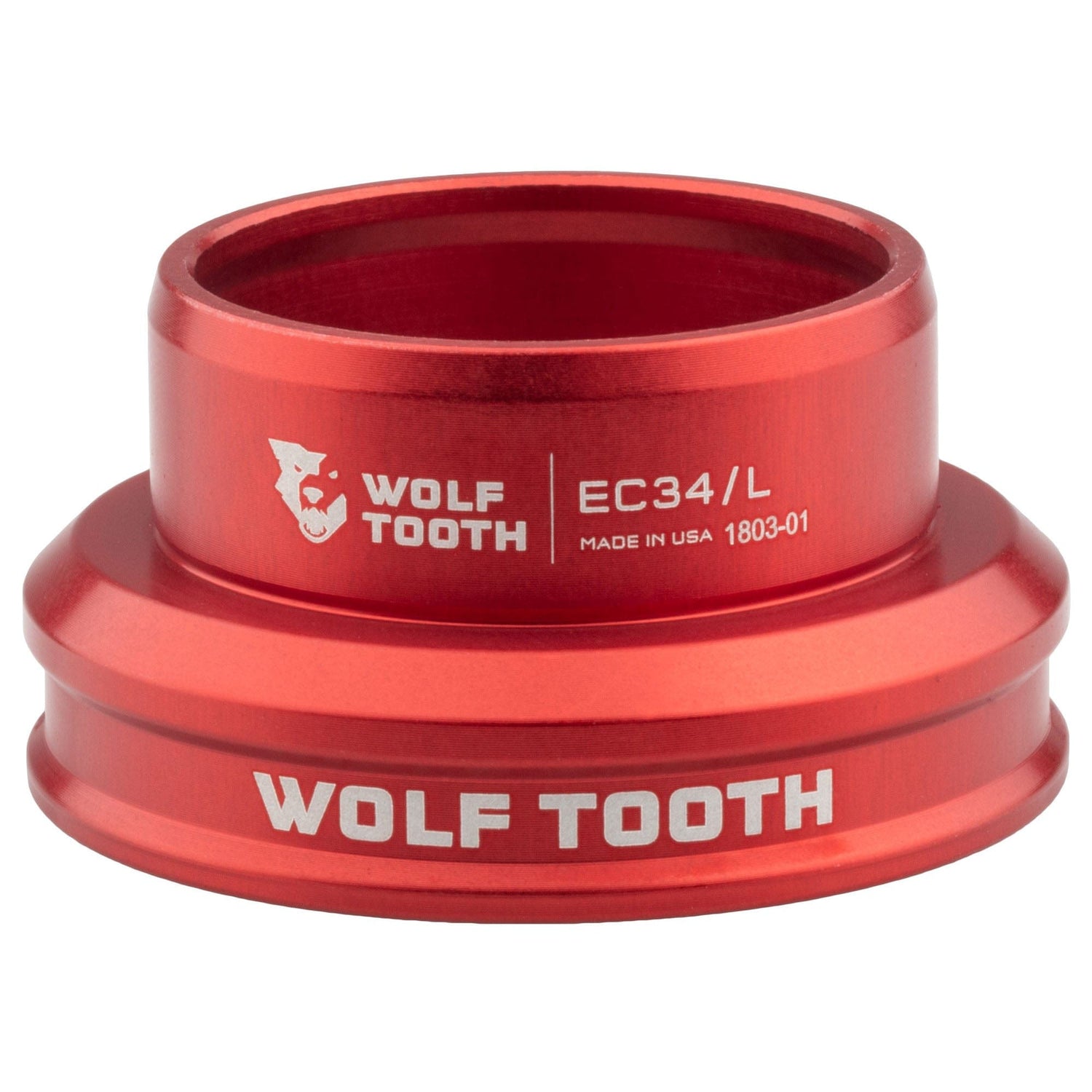

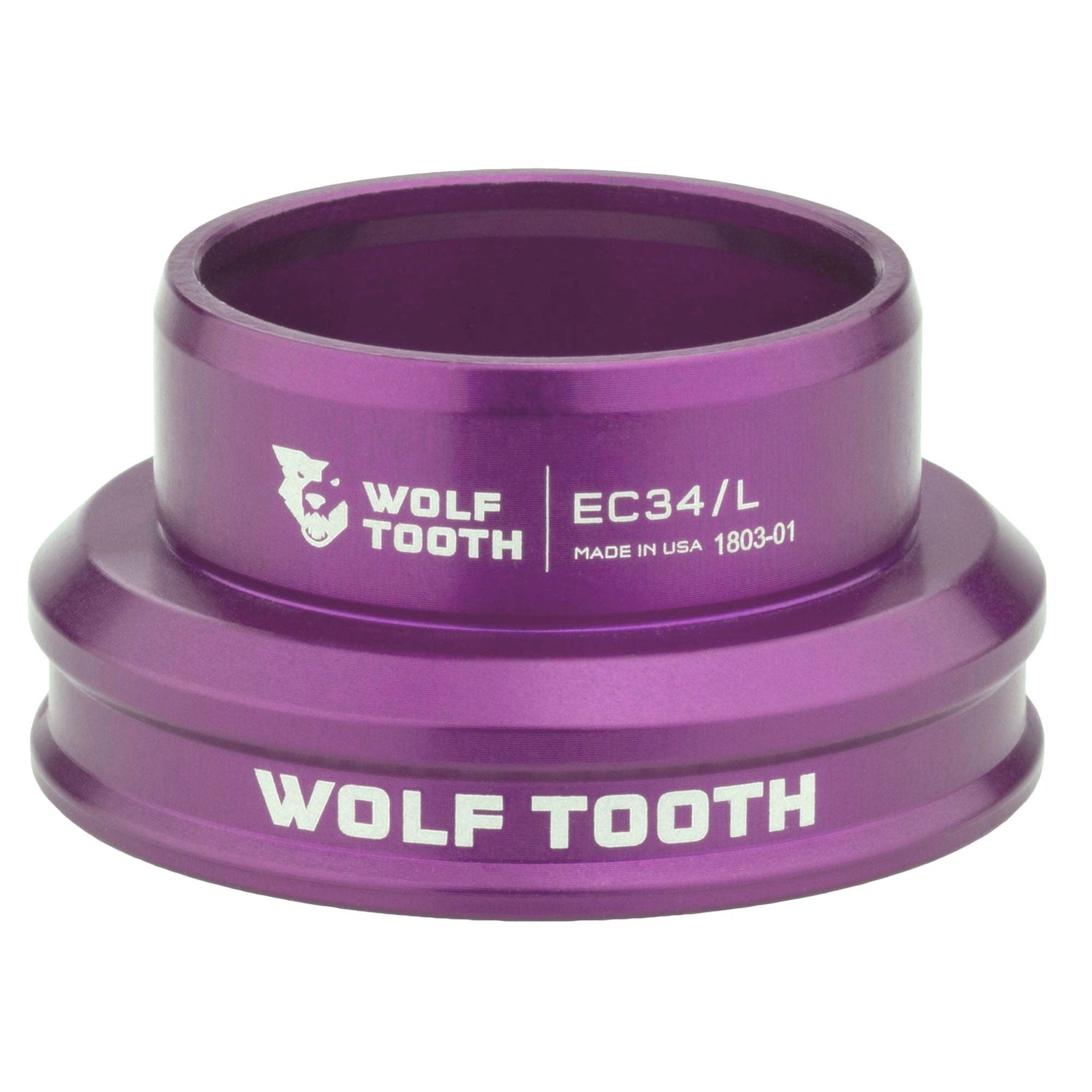

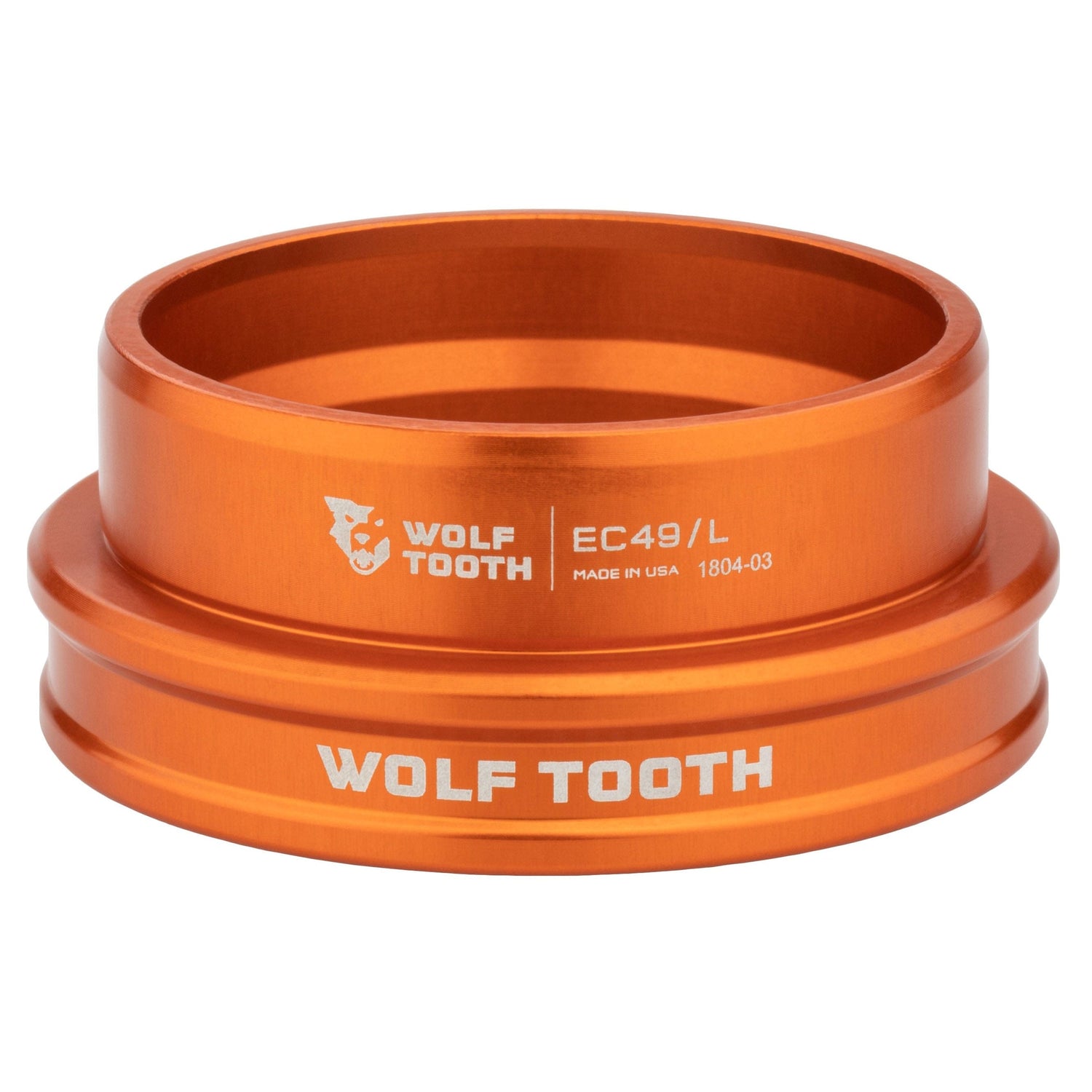

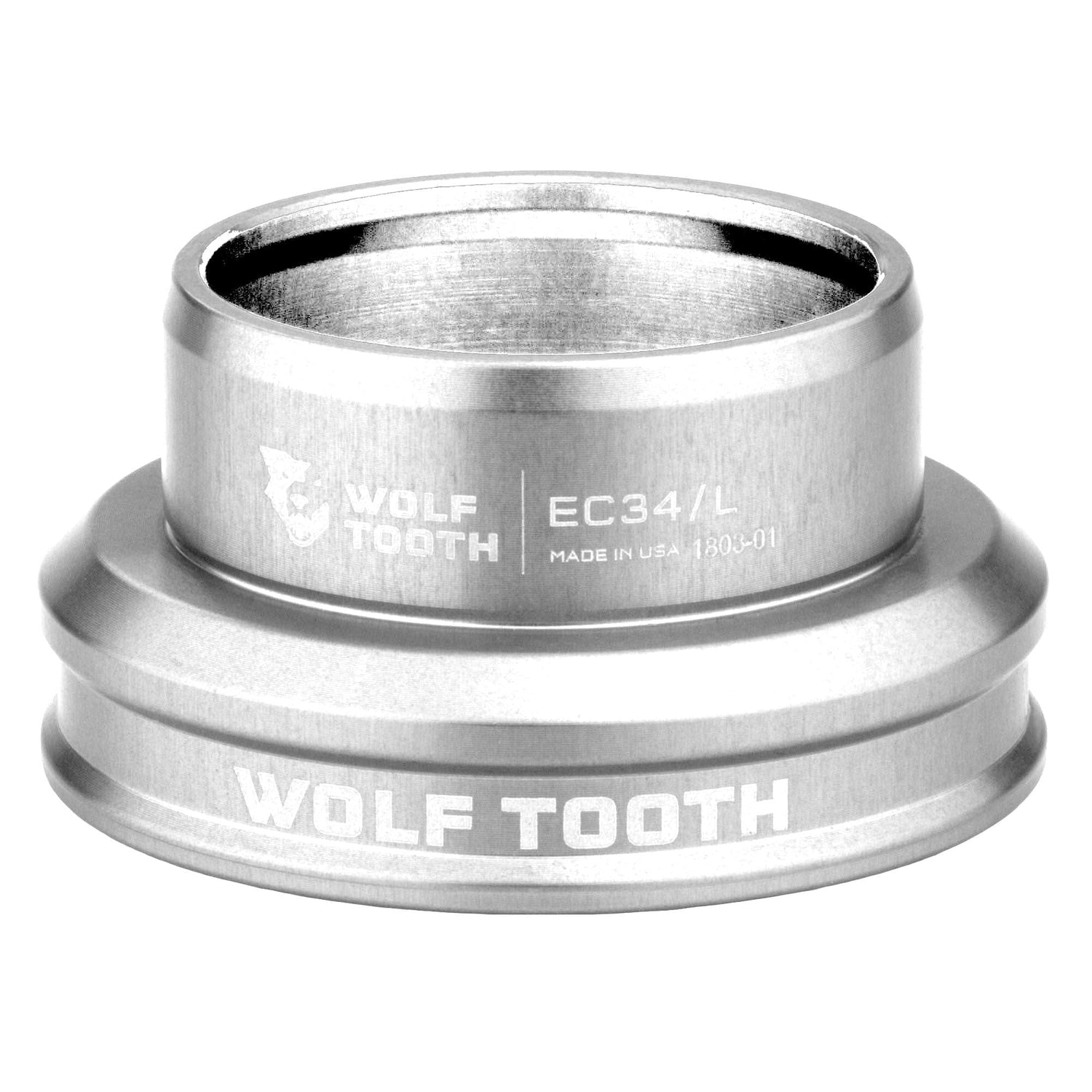

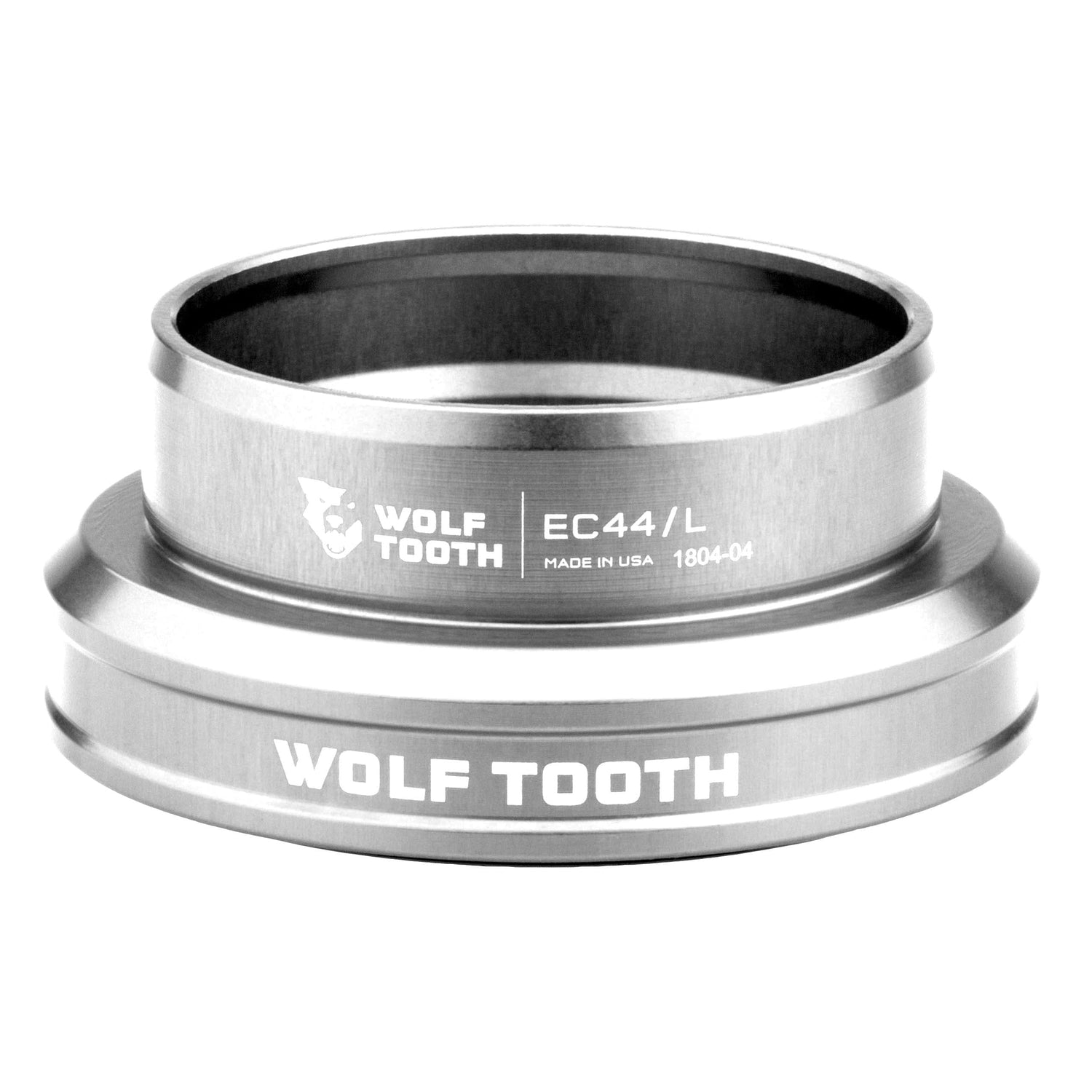

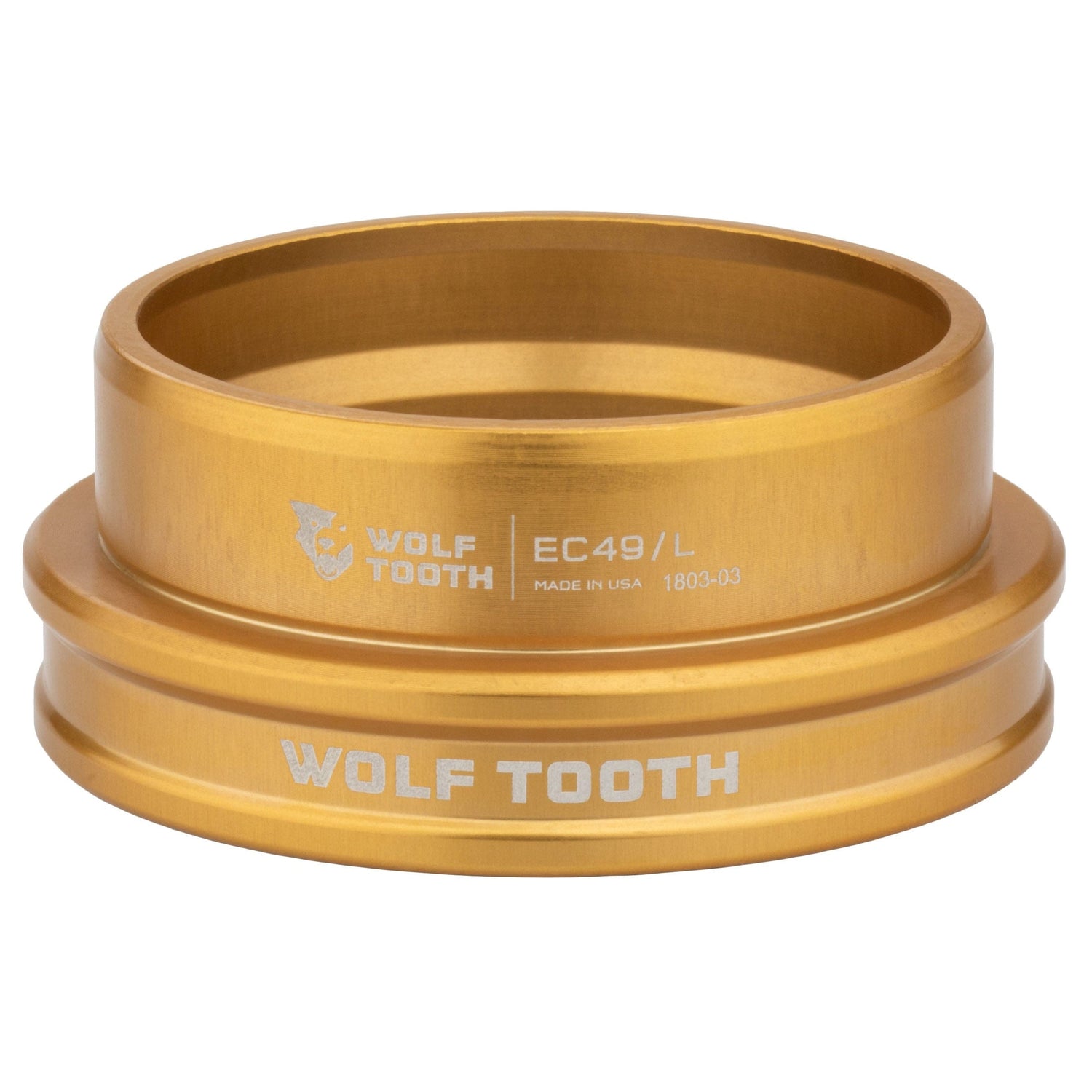

4. Clean Aesthetic: Available in multiple colors to complement modern builds.

Additional Details & Compatibility Notes

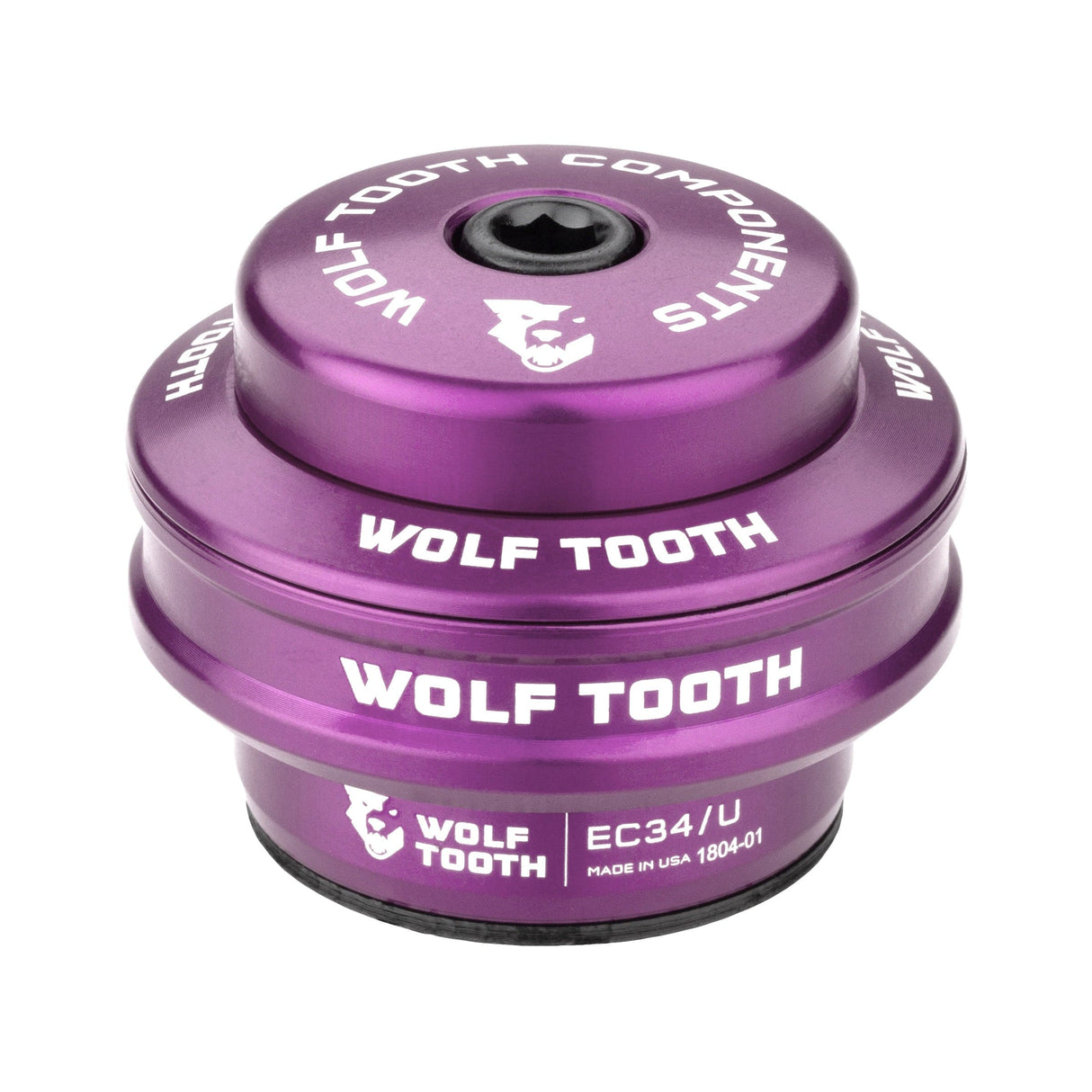

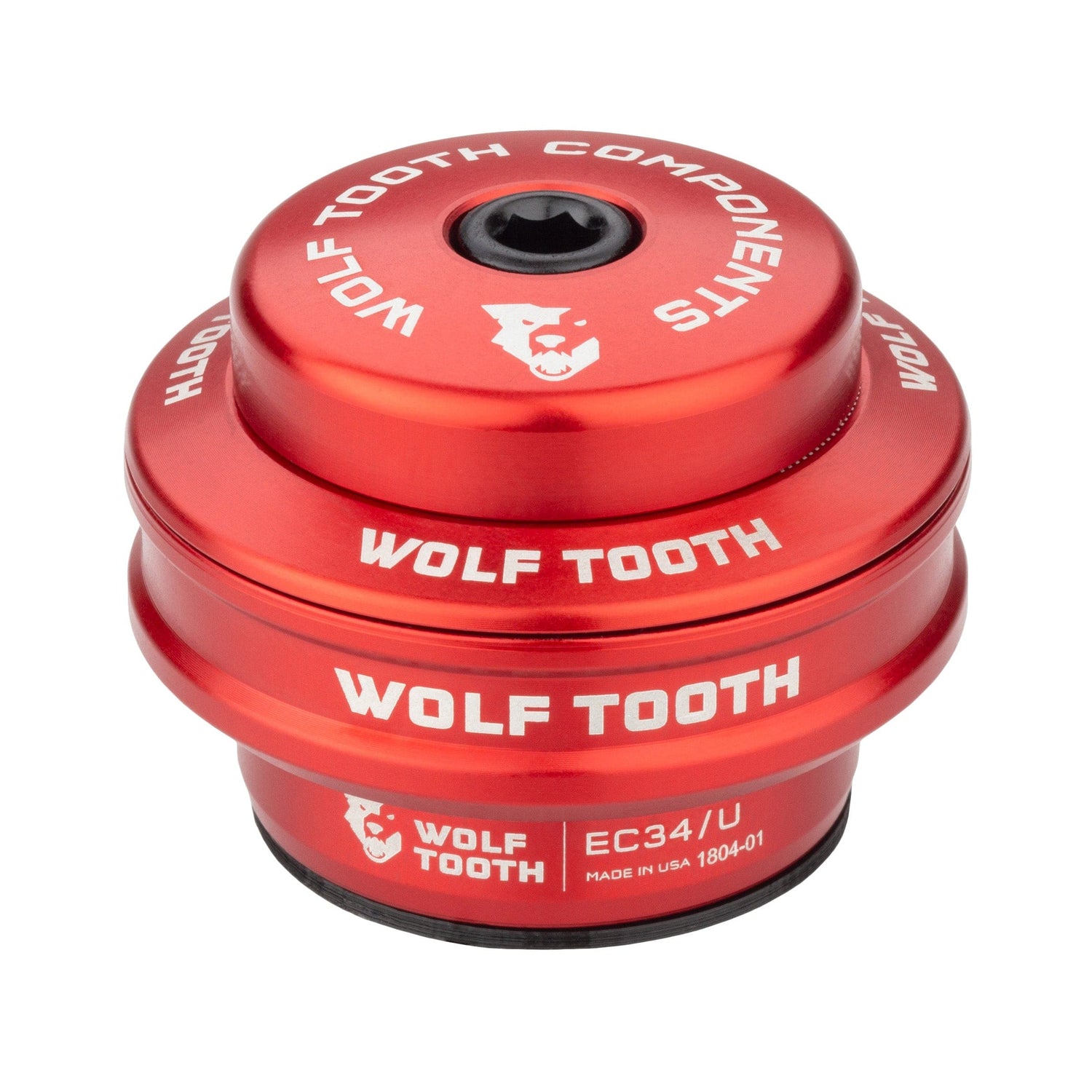

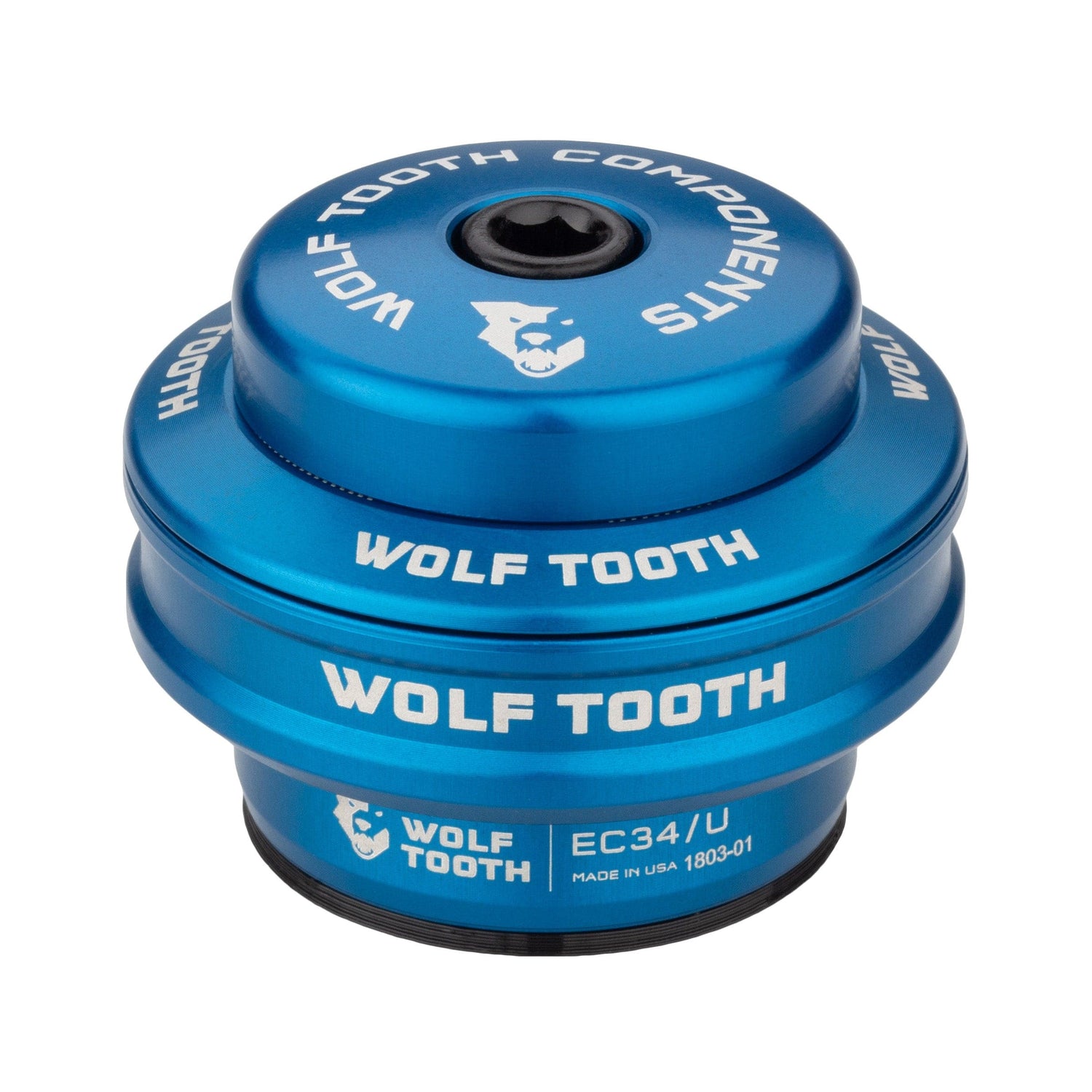

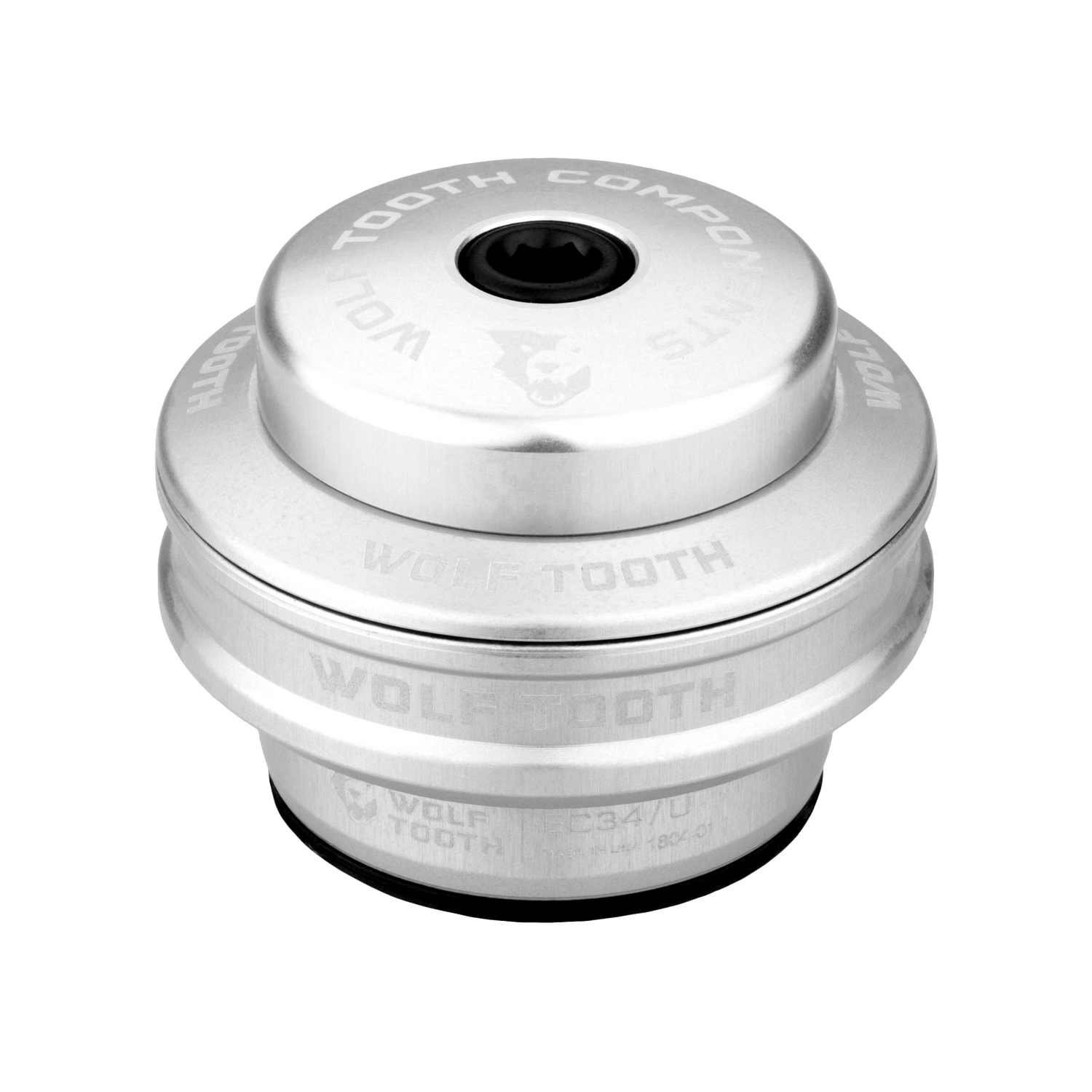

Upper and lower assemblies are sold separately. Upper headsets include a star nut for use with steel or aluminum steerer tubes only. Carbon steerer forks require a compression plug, sold separately—never use a star nut with a carbon steerer. A crown race adapter is also available to allow compatibility with smaller steerer tubes when using a larger lower EC cup. Service parts and replacement components are readily available.

Final Take

The Wolf Tooth Performance EC Headsets are a dependable choice for riders seeking a durable, smooth-running external cup headset with premium sealing and USA-made quality. Whether you’re refreshing an existing frame or completing a new build, this headset offers long service life, precise control, and understated visual flair.
