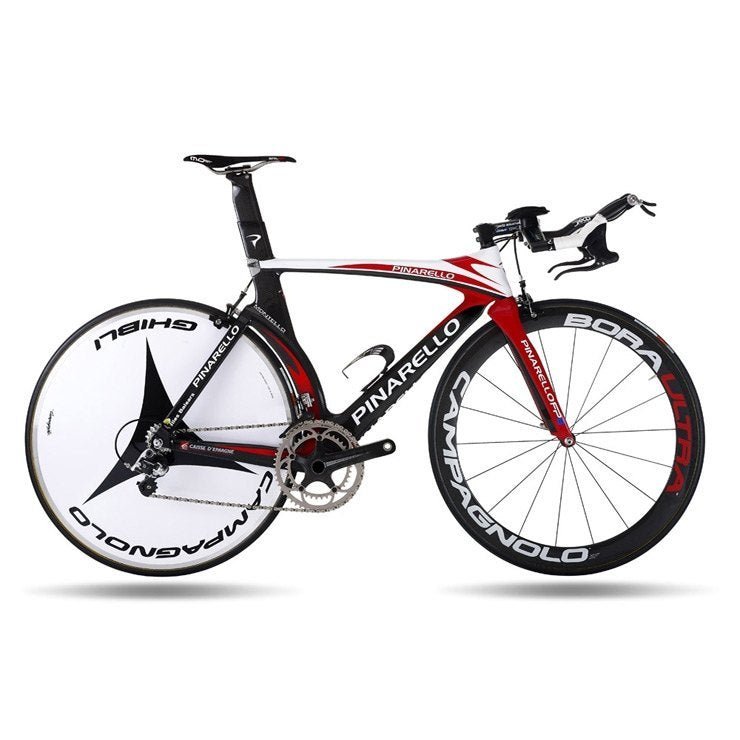

Pinarello Montello FP8 Frameset

The Pinarello Montello FP8 Frameset is a dedicated triathlon and time-trial platform from one of road cycling's most recognized builders. Pinarello has been making performance bikes in Treviso, Italy since 1952, and the brand's involvement at the highest levels of professional cycling has always included the time-trial discipline. The Montello takes its name from the hill that rises above Treviso — a local landmark long associated with Pinarello's development and testing. The frameset is built on TORAYCA 50HM3K carbon fiber, a high-modulus material chosen for its stiffness-to-weight profile in a TT application. Every element of the geometry, the tube profiles, and the seatpost options points toward getting you into an aerodynamic position and keeping you there.

TORAYCA is the carbon fiber brand of Toray Industries, and the 50HM3K designation indicates a high-modulus fiber — stiff enough to translate power from the pedals to the rear wheel without flex losses — processed in a 3K weave that balances surface quality and structural integrity. The frame pairs with a Pinarello Carbon FP8 fork, maintaining material and performance consistency across the front and rear of the bike. An integrated carbon headset is included, keeping the front-end assembly clean and reducing the number of components needed at the build stage. The tube profiles throughout are shaped for aerodynamic performance in the TT position — where a rider is low, producing sustained power, and the frame shape itself is working to minimize drag.

The geometry is built around a race TT and triathlon position from the ground up. The seat tube angle sits at 76.5 degrees — the forward-rotated position that reduces hip angle, allows the legs to turn more efficiently, and is the standard for athletes trained in sustained aerodynamic output. The head tube angle is 73 degrees, and the chainstay measures 385mm, compact enough to maintain appropriate weight distribution in the aero position. The dual-position aero carbon seatpost is the frameset's most practical feature for real-world fit: it ships with two post options offering 74.5mm and 76.5mm saddle extensions, giving meaningful variation in effective seat height and reach without requiring custom fitting hardware. For triathletes who've found it difficult to dial in position on a standard TT frame, this flexibility matters. The frame is sized at 49cm, with a 515mm effective top tube, 90mm head tube, and 700c wheels.

The bottom bracket shell is 70mm Italian-threaded — a standard that accepts a wide range of threaded BB options without conversion hardware, compatible with any crankset you'd reasonably consider at this level. The front derailleur mount is braze-on, supporting both 2x and 1x drivetrain configurations. The integrated carbon headset is included with the frameset, as is the dual-position aero seatpost. Drivetrain, brakes, wheels, cockpit, and pedals are not included and should be sourced separately to suit your target build spec.

The Montello FP8 is the right frameset for a triathlete or time-trialist who wants access to Pinarello's TT platform and Italian carbon construction without the cost of the brand's top-tier offerings. At $2,499.99, it leaves budget for a considered component build — whether that means a quality mechanical groupset to start or an investment in aerodynamic wheels and a purpose-built cockpit from day one. The dual-position seatpost means fit flexibility is built into the frameset rather than requiring additional investment. Available in Black / White / Red in 49cm.
