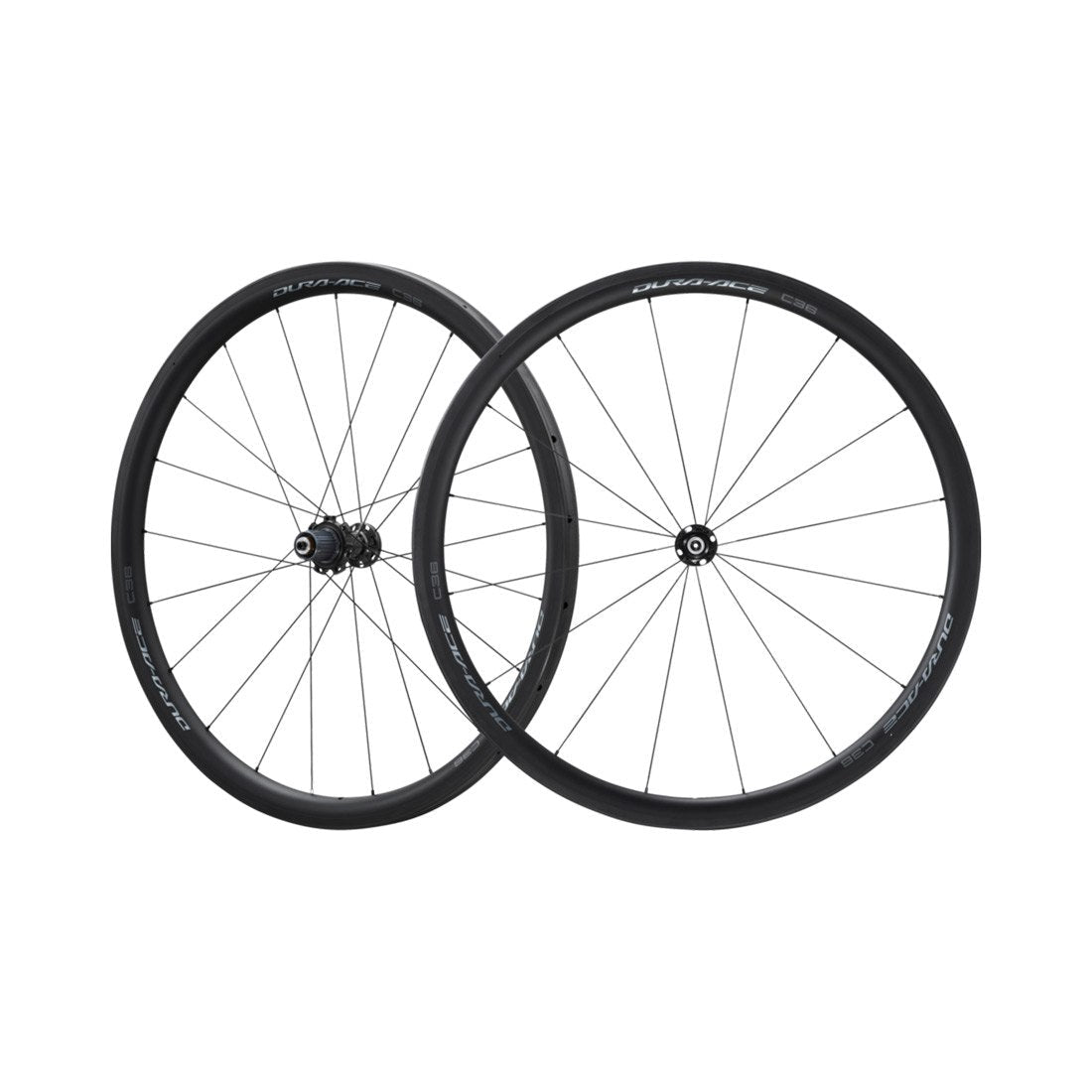

Shimano Dura-Ace 9270 C36 Disc Wheelset

The Shimano Dura-Ace 9270 C36 Disc Wheelset is the lightest disc-brake option in Shimano's R9200 Dura-Ace lineup — a wheelset built on the premise that reducing rotational weight at the rim delivers more tangible gains than adding aerodynamic depth. At 1,350 grams for the pair (620g front, 730g rear), the C36 is the shallowest entry in the Dura-Ace carbon range, built for riders who prioritize climbing performance and responsive acceleration over pure aerodynamic efficiency. This is the wheel you put on a bike when the terrain is varied, the climbs are what matter, and you want a wheelset that doesn't hold you back when the road goes up.

The engineering priority is clear from the numbers. Shimano's data puts outer-circumference mass at roughly 60% of the energy required to change wheel speed, which explains why the rim is where the development team focused its weight reduction work. The C36 rim is 55 grams lighter than the outgoing generation's shallow Dura-Ace carbon rim, and the full carbon construction maintains structural integrity throughout — the mass reduction doesn't come at the expense of torsional stiffness or durability under hard cornering loads. The practical effect is a wheel that responds to changes in effort with an immediacy that sets it apart from heavier alternatives, particularly on the repeated accelerations that define climbing and circuit racing.

The 36mm rim depth doesn't tell the whole aerodynamic story. Shimano developed the D2 rim profile with a 28mm external width to manage airflow efficiently across yaw angles from 0 to 15 degrees — the range most road riders encounter in typical conditions. Pairing that 28mm external width with tires in the 26-30mm range creates a smooth casing-to-rim transition that reduces turbulence despite the shallow profile. The C36 won't match a C50 or C60 in a flat, high-speed tailwind, but it holds more aerodynamic advantage than its depth suggests, and it handles crosswinds with considerably more confidence than deeper options. Internal rim width is 21mm, supporting tire widths from 25mm to 32mm.

The 9270 hub is where the most significant mechanical advancement over the previous Dura-Ace generation shows up. Shimano's Direct Engagement freehub replaces the traditional pawl-and-ratchet mechanism with a system that maintains 360-degree contact between the hub ratchet and the freehub body at all times. There is no engagement delay — power translates to wheel acceleration without the brief dead band that pawl-based designs carry. The aluminum freehub body sheds 45 grams from the previous design and delivers a 63% increase in drive rigidity over its predecessor. On sustained climbs where you're modulating effort repeatedly, or in hard accelerations out of corners, the responsiveness of the Direct Engagement system is something you feel rather than measure. The Dura-Ace hubs run CBN-coated cup-and-cone bearings — fully adjustable and serviceable, and a consistent design feature in Shimano's flagship wheel lineup for their durability and precision.

Shimano laced the C36 with 24 bladed stainless steel straight-pull spokes on both wheels. The front wheel uses a 1:1 lacing pattern with equal spoke count on each flange. The rear uses Shimano's OPTBAL 2:1 pattern on the non-drive side, equalizing tension across the asymmetric flanges to reduce spoke fatigue under repeated load. A more evenly tensioned wheel stays true longer and requires less maintenance — a practical consideration for a wheelset built for regular hard use.

The C36 is tubeless-ready from the factory, with tape and valves pre-installed. The hooked bead design supports both tubeless and standard clincher setups, giving riders flexibility in tire selection. The aerodynamic sweet spot is the 26-30mm range, which aligns with where road tire sizing has broadly settled. Hub spacing is 12x100mm front and 12x142mm rear, with Center Lock disc brake mounts. The cassette interface is Shimano's HG12-L2 spline, designed for 12-speed Dura-Ace road cassettes only. The C36 is a system-specific wheel — not compatible with 11-speed setups, SRAM, or Campagnolo. Riders building around the full Dura-Ace R9200 system will find it integrates without compromise. Anyone else should verify compatibility before ordering.
