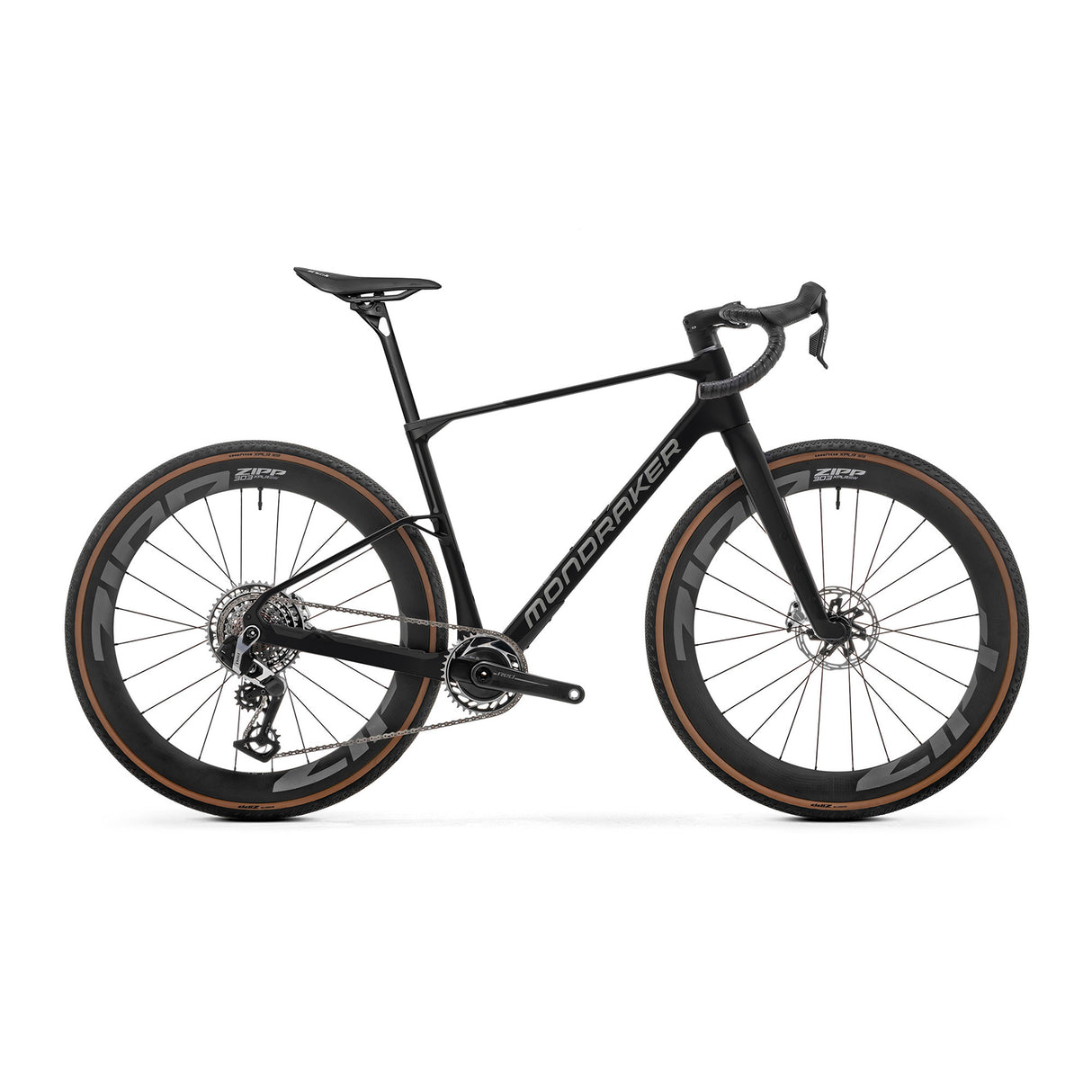

Mondraker Arid Carbon RR SL Bike


$10,99900

Color
Size

Coming soon! Backorder this item and one of our sales associates will contact you within 24 hours confirming its shipping date.

Mondraker   |   SKU: 010.26US146MG   |   Option: Mirage Silver, S

Questions about this product?

What size do I need?

Get a digital fit assessment

Schedule a Bike Fit in Walnut Creek, CA.

Schedule a Bike Fit in Brooklyn, NY. Please call 718-636-5242


* Product image may vary. Refer to the description for accurate details.

Mondraker Arid Carbon RR SL Bike Info

Mondraker Arid Carbon RR SL Bike is the most performance-driven expression of Mondraker’s Arid gravel platform, built for riders who approach gravel riding with a race-first mindset. Designed to deliver maximum efficiency, speed, and precision, the RR SL is tuned for high-intensity gravel racing and fast-paced riding where responsiveness and control are critical.

The carbon frame features an advanced layup that prioritizes stiffness and low weight while maintaining enough compliance to manage rough gravel surfaces. Mondraker’s gravel geometry strikes a careful balance between aggressive efficiency and high-speed stability, allowing riders to stay planted and confident when pushing hard over loose terrain and technical sections.

Handling is sharp and direct, with a front end that encourages precise line choice and confident cornering at speed. The RR SL’s refined ride feel rewards strong efforts, making it well suited for competitive events, fast training rides, and riders who demand immediate feedback from their bike.

Visually, the Arid Carbon RR SL reflects its top-tier positioning with clean integration and purposeful detailing. It’s a gravel bike designed to go fast first, while still offering the control and composure needed to handle long races and challenging course conditions.

Mondraker Arid Carbon RR SL Bike at a Glance

  • Frame Material: Advanced carbon construction optimized for lightweight performance.
  • Bike Category: Race-focused gravel bike.
  • Design Focus: Maximum efficiency, speed, and precise handling.
  • Ride Intent: Gravel racing, fast gravel training, and competitive mixed-terrain riding.

Design Benefits

  1. Race-Ready Efficiency: Lightweight carbon frame supports rapid acceleration and sustained speed.
  2. Precise Handling: Geometry delivers confident control at high speeds on loose terrain.
  3. Responsive Ride Feel: Stiffness tuning provides immediate feedback under power.
  4. Elite-Level Integration: Clean lines and refined detailing reinforce its top-tier performance focus.

Final Take

The Mondraker Arid Carbon RR SL Bike is built for riders who want no compromises in gravel performance. With its lightweight carbon frame, sharp handling, and race-focused design, it delivers the speed and control needed to compete at the highest levels of gravel riding.

Mondraker Arid Carbon RR SL Bike - Specifications

Frame Material:
Carbon / T47 bottom bracket / UDH / 12x142mm
Fork:
Stealth Air Carbon
Headset:
Onoff IS52/IS52 / Sealed bearings / Internal cable routing
Seatpost:
Onoff S9 Carbon 15-R / 27.2mm / S: 400mm, M: 400mm, ML: 400mm, L: 450m, XL: 450mm
Rear Derailleur:
SRAM Red AXS XPLR E1
Crankset:
SRAM Red XPLR E1 w/Power Meter
Chainrings:
SRAM 40T Thread Mount / Alloy / Narrow-Wide
Bottom Bracket:
SRAM DUB T47 BSA
Brake Calipers:
SRAM Red AXS E1 Hydraulic Disc
Rotors:
SRAM Paceline 160mm
Shifters / Levers:
SRAM Red AXS E1
Cassette:
SRAM XG-1391 13-speed 10-46
Chain:
SRAM Red E1 13-speed
Wheel - Front:
Zipp 303 XPLR SW / 32mm Internal Width / Hookless / Tubeless ready
Wheel - Rear:
Zipp 303 XPLR SW / 32mm Internal Width / Hookless / Tubeless ready
Stem:
Onoff Semi-Integrated / 31.8mm / -7 degree rise
Handlebar:
Onoff S9 GR Carbon / 16-degree flare
Saddle:
Fizik Vento Argo 00 140mm
Tires:
Goodyear XPLR Inter 700x45
Bar Tape:
OnOff HEX
Pedals:
Not Included
Max Tire Width:
700x50

*Specifications are subject to change.

Mondraker Arid Carbon RR SL Bike Geometry

Mondraker Arid Carbon RR SL Bike Geometry
Size:
S
M
ML
L
XL
B. Seat Tube (c-t)
410
450
480
510
540
C. Top Tube Length
520
550
580
600
630
D. Head Tube Length
100
125
145
175
200
E. Chain Stay Length
425
425
425
425
425
F. BB Drop
75
75
75
75
75
G. Seat Tube Angle
73
73
73
73
73
H. Head Tube Angle
70
70
70
70
70
J. Wheel Size
700c
700c
700c
700c
700c
K. Stack
548
572
591
619
642
L. Reach
363
386
411
423
446
Stem Length
60mm
70mm
70mm
80mm
90mm
Bar Width
42cm
42cm
44cm
46cm
46cm
M. Crank Length
165mm
167.5mm
170mm
172.5mm
172.5mm
