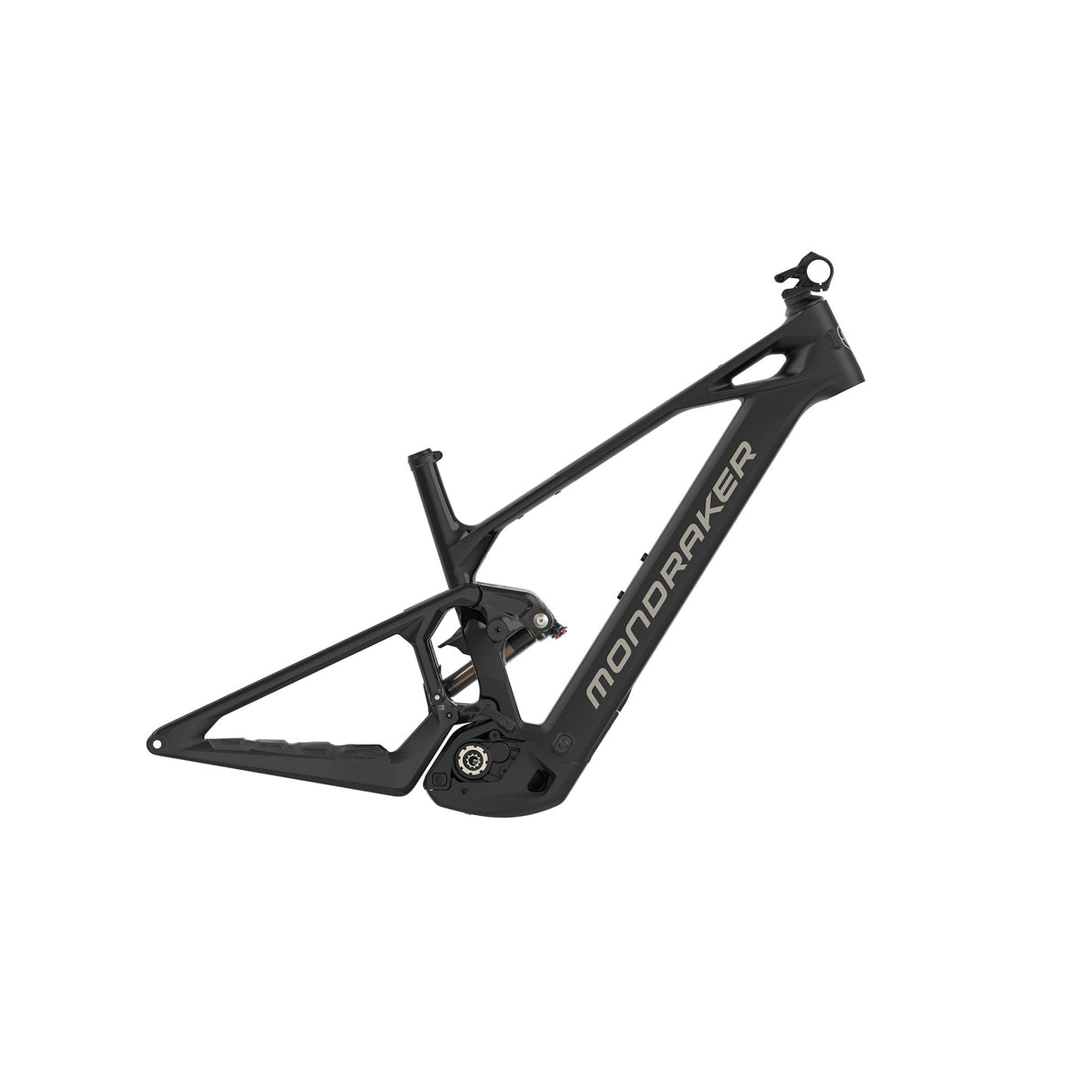

Mondraker Crafty Carbon RR SL Frame
$7,19900
Unit price
/
Unavailable
-
RA price match promise
-
Pay later with
,and
RA Cycles
| SKU: 010.26US334 | Option:
Couldn't load pickup availability
Questions about this product?
Questions about this product?
What size do I need?
What size do I need?
Schedule a Bike Fit in Walnut Creek, CA.
Schedule a Bike Fit in Brooklyn, NY. Please call 718-636-5242
Mondraker Crafty Carbon RR SL Frame
$7,19900
Unit price
/
Unavailable
* Product image may vary. Refer to the description for accurate details.
Mondraker Crafty Carbon RR SL Frame - Specifications
Frame Material:
Carbon / 150mm Travel / UDH / 12x148mm
Rear Suspension:
Fox Float X Factory Kashima EVOL 185x55mm / Settings: 2-position compression (Open/Firm), rebound, air preload / Trunnion top mount
Headset:
Acros custom ZS56/ZS56, 1-1/8" / 1.5" head tube / Internal cable routing / Sealing plugs with blocklock
Seatpost:
31.6mm Required
Battery:
Bosch Powertube 800Wh
Motor:
Bosch Performance Line CX RACE (25Km/h) SMART SYSTEM (BDU386Y)
Display:
Kiox 400C / Bosch Mini Remote
Stem:
Onoff S9 30mm 0-degree / Full CNC / 31.8mm
Travel:
150mm
*Specifications are subject to change.
Mondraker Crafty Carbon RR SL Frame Geometry
Size:
S
M
ML
L
XL
B. Seat Tube (c-t)
380
410
435
460
490
C. Top Tube Length
581/582
596/597
618/619
640/641
662/663
D. Head Tube Length
120
120
130
140
150
E. Chain Stay Length
455/456
455/456
455/456
465/466
465/466
F. BB Drop
25/30
25/30
25/30
25/30
25/30
G. Seat Tube Angle
73/72.65
73/72.65
73/72.65
73/72.65
73/72.65
H. Head Tube Angle
64.5/64.15
64.5/64.15
64.5/64.15
64.5/64.15
64.5/64.15
J. Wheel Size
29"
29"
29"
29"
29"
K. Stack
638/641
638/641
647/650
656/659
665/668
L. Reach
445/441
460/456
480/476
500/496
520/516
Stem Length
30mm
30mm
30mm
30mm
30mm
