Cipollini RB1K AD.ONE Disc Frameset Info

The Cipollini RB1K AD.ONE Disc Frameset starts from a specific design question: what would a road race frame look like if it borrowed the aerodynamic engineering principles of a time trial bike without sacrificing the handling that makes a road bike useful across different riding conditions? The NK1K, Cipollini's standard racing platform, prioritizes low weight and responsive geometry. The NKTT exists at the other end — optimized for sustained flat-out speed in a fixed position. The AD.ONE occupies the ground between them. The tube shaping and profile geometry pull directly from time trial design, while the head tube angle, chain stay length, and overall fit remain in road bike territory. What you get is a frame that's effective in a breakaway on a flat stage, capable on a climb, and that doesn't require a triathlon fit to ride.

The frame is built around Cipollini's TCM technology — True Carbon Monocoque construction. The term "monocoque" gets applied loosely in the cycling industry, where many frames that claim the designation are still built by bonding a separate rear triangle onto a monocoque front unit. Cipollini's TCM process produces a genuinely complete one-piece frame: no bonded junctions between the rear stays and the main triangle, no adhesive-dependent connection points that can degrade over time. The mechanical advantage is direct — a continuous carbon structure routes force without the compliance that creeps in at bonded transitions, particularly under the lateral loads of sprinting. The frame weight is 1,010g. The carbon fork — specific to the AD.ONE — weighs 390g and is shaped to match the aerodynamic intent of the frame. Both headset cups are conical 1.5-inch spec, giving the steering path more structural depth than a standard tapered setup, and the BB shell is press-fit at 46mm diameter and 86.5mm wide.

Most frames scale geometrically — tube lengths increase, angles shift slightly, and riders at the extremes of a size run sometimes end up with a noticeably different ride feel than those in the middle of the range. Cipollini's engineering approach on the AD.ONE addresses this directly. Each size uses independently designed tube wall sections and junction geometries, calibrated to maintain consistent stiffness and ride character across the full range. An XS and an XXL are designed to deliver the same power transfer characteristics and the same sense of how the frame responds under load — a meaningful commitment that requires separate development investment per size rather than a single set of scaled mold tools. Titanium thru-axles at both ends reinforce that stiffness: 12×100mm at the front, 12×142mm at the rear. Compared to quick-release axles, the thru-axle interface significantly reduces flex at the fork and rear dropout under hard cornering and sprinting, where lateral forces are highest.

The AD.ONE is built disc-only from the ground up, using flat mount calipers — a design decision that affects the entire rear triangle geometry, not just the caliper mounting tab. Tire clearance runs to 29mm, which is enough for heavier training rubber, tubeless setup, or wet-weather tires without compromising the race geometry. Full internal cable and hydraulic hose routing channels both brake lines and shift cables inside the frame, keeping the exterior profile clean and giving the build a finished look regardless of component choice. The frame is 1X ready by design — the chainstay and front triangle are shaped to work cleanly with a single-chainring drivetrain, which is the direction most race-oriented riders are moving anyway. A front derailleur braze-on mount is present for riders who prefer the range of double chainrings, but the default design intent favors the single-ring setup. Cipollini also enlarged the bottom bracket buttress opening on this generation, making it practical to service and bleed hydraulic brake lines without pulling the entire cockpit apart — a detail that anyone who has worked on fully internal-routed builds will appreciate.

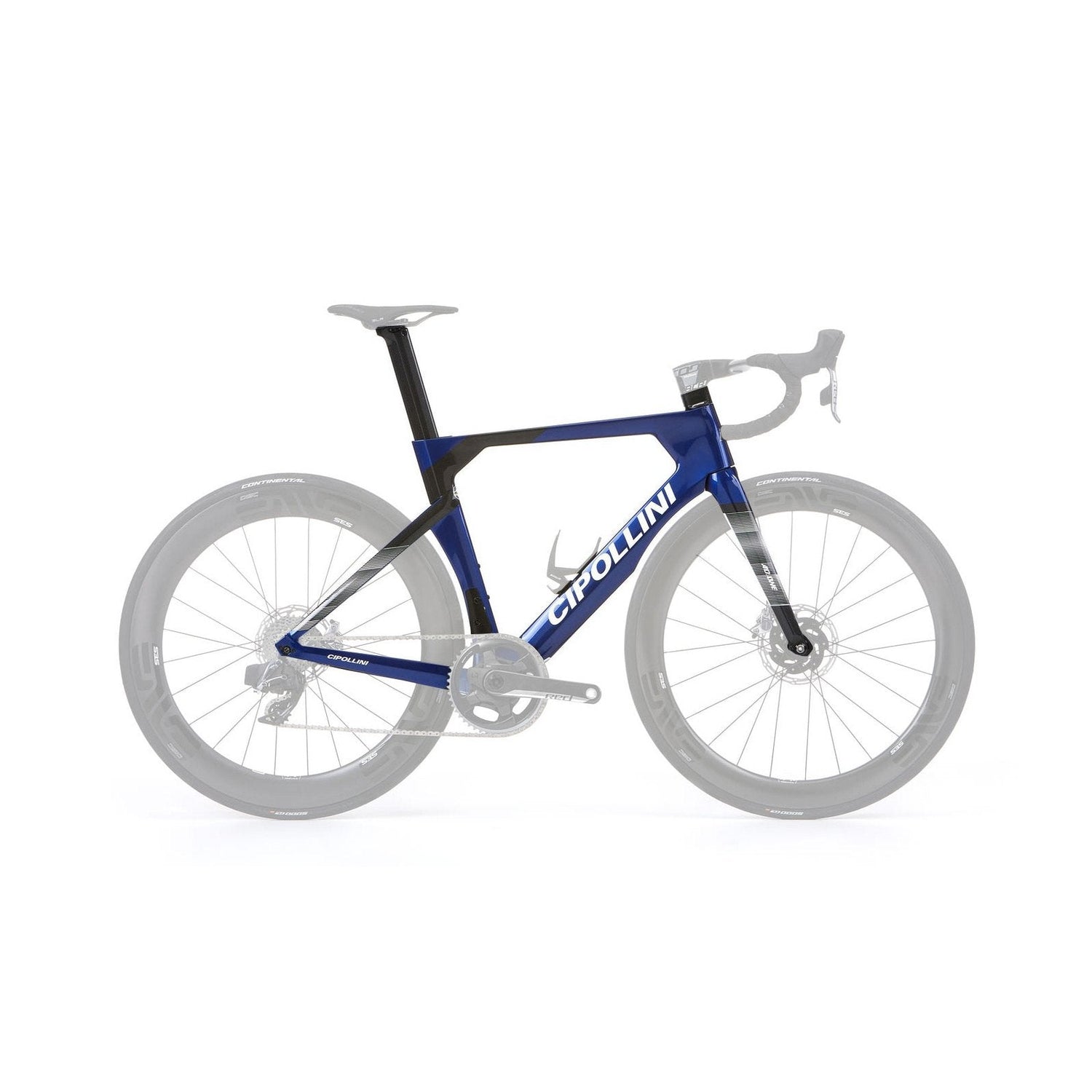

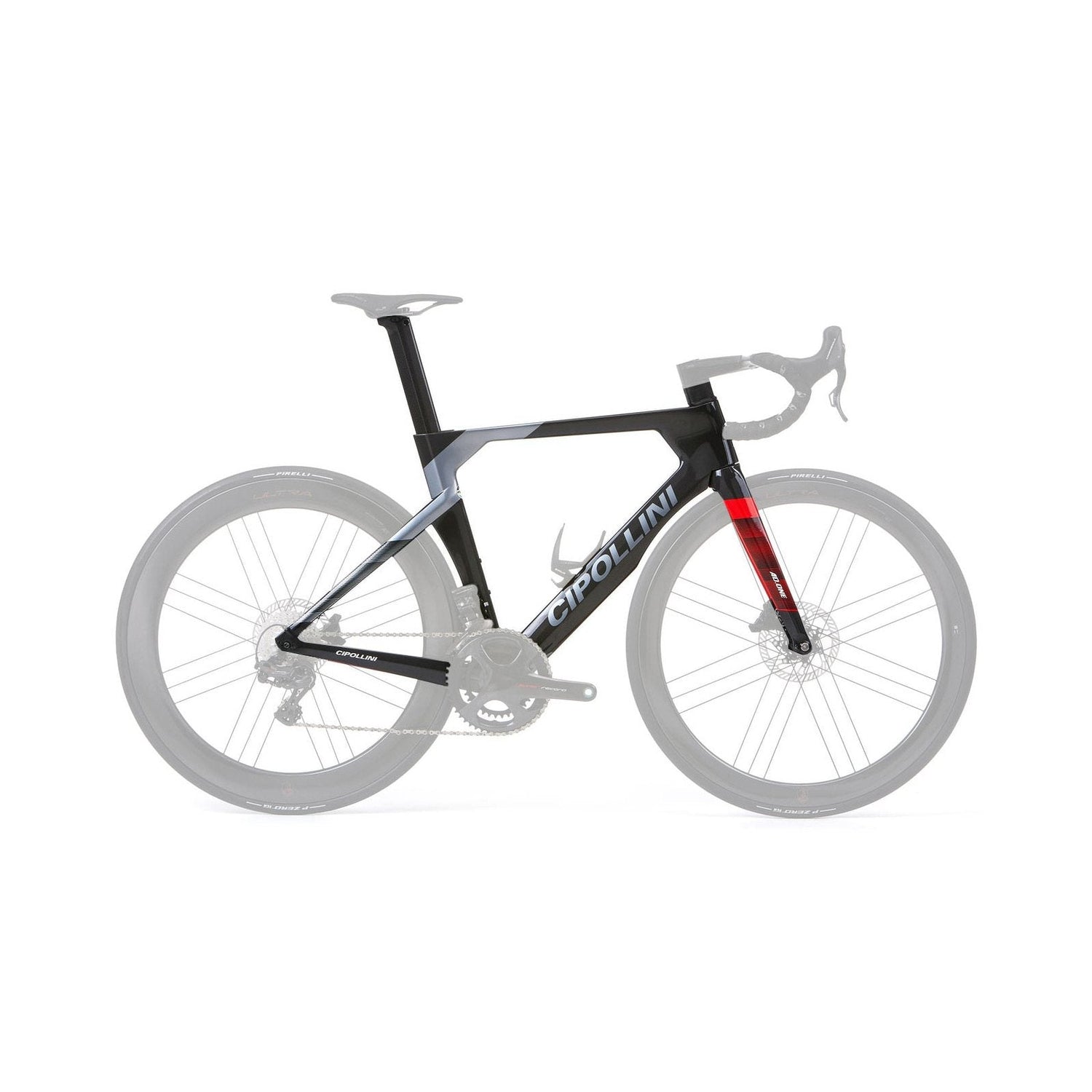

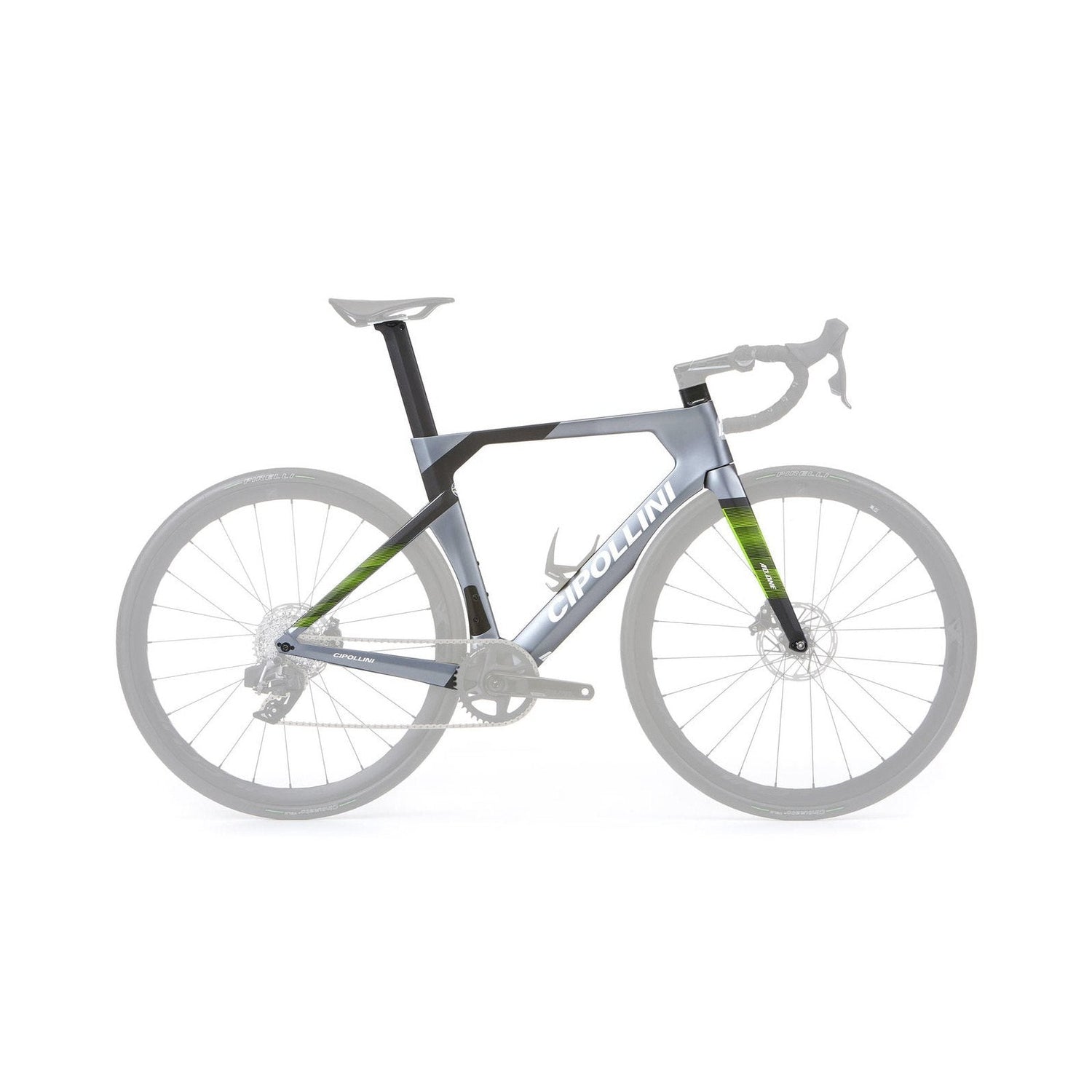

Cipollini was founded in 2009 by Mario Cipollini — the Italian sprinter who accumulated more than 190 career victories, including the 2002 UCI Road World Championship, and spent nearly two decades defining what aggressive, aerodynamic road racing looked like. That orientation toward speed as a technical problem carries directly into how the brand builds its frames in Verona, Italy, with a production supply chain running across Padua, Florence, and Pisa. The RB1K AD.ONE Disc Frameset is available in three colorways — Carbon/Anthracite/Red (gloss), Anthracite/Carbon/Lime (matte), and Cobalt Blue/Carbon/White (gloss) — and seven sizes from XXS through XXL.

Cipollini RB1K AD.ONE Disc Frameset - Specifications

Frame Material:

TCM Monocoque Carbon

Fork:

Cipollini AD.ONE Carbon

Headset:

Conical 1 1/2”-1 1/2”

Seatpost:

Cipollini AD.ONE Carbon

Front Derailleur Type:

Braze-On Required

Bottom Bracket Type:

BB86 Required, 86.5x41

*Specifications are subject to change.

Cipollini RB1K AD.ONE Disc Frameset Geometry

Size:

XS

S

M

L

XL

XXL

B. Seat Tube (c-t)

454

473

494

512

528

545

C. Top Tube Length

510

527

545

560

575

590

D. Head Tube Length

105

116

126

141

159

179

E. Chain Stay Length

410

G. Seat Tube Angle

74.6

74.2

73.8

73.5

73.3

72.8

H. Head Tube Angle

71.1

72

72.5

72.8

73.4

73.7

J. Wheel Size

700c

K. Stack

508

522

533

546

564

583

L. Reach

370

379

390

398

406

410

The RA Perspective

The RB1K AD.ONE is one of those framesets that rewards a closer look. On first pass it reads as a premium Italian carbon road frame with disc brakes — and that's accurate enough. But the TCM construction tells a more specific story. When you hold a true monocoque frame against a bonded-triangle frame of similar weight, you can feel the difference in how it handles lateral force. There's no give at the rear triangle junction because there is no junction. That's the theoretical advantage, and in our experience building these up, it holds.

The per-size tube engineering is the other thing we point to when customers ask what distinguishes Cipollini at this price point. Most manufacturers design one optimal tube profile and scale it. Cipollini reengineers the wall sections for each size, which means the frame you're buying in a medium and the frame a much taller rider buys in an XXL are genuinely different structures with the same intended performance. For a frameset at $6,390, that level of commitment in the tooling budget matters.

The disc-only, flat-mount setup and the 29mm tire clearance make this a practical race platform, not just a showpiece. You can put training rubber on it without second thoughts, and the full internal routing keeps the build clean regardless of component choice.

This is a frame for a rider who has built up a few bikes before, knows what they want from a race fit, and is ready to invest in construction quality. It's not a first frameset, but for the right rider it's worth every dollar.
