BMC Teammachine R 01 Four Bike
$8,89900
Unit price
/
Unavailable
* Product image may vary. Refer to the description for accurate details.

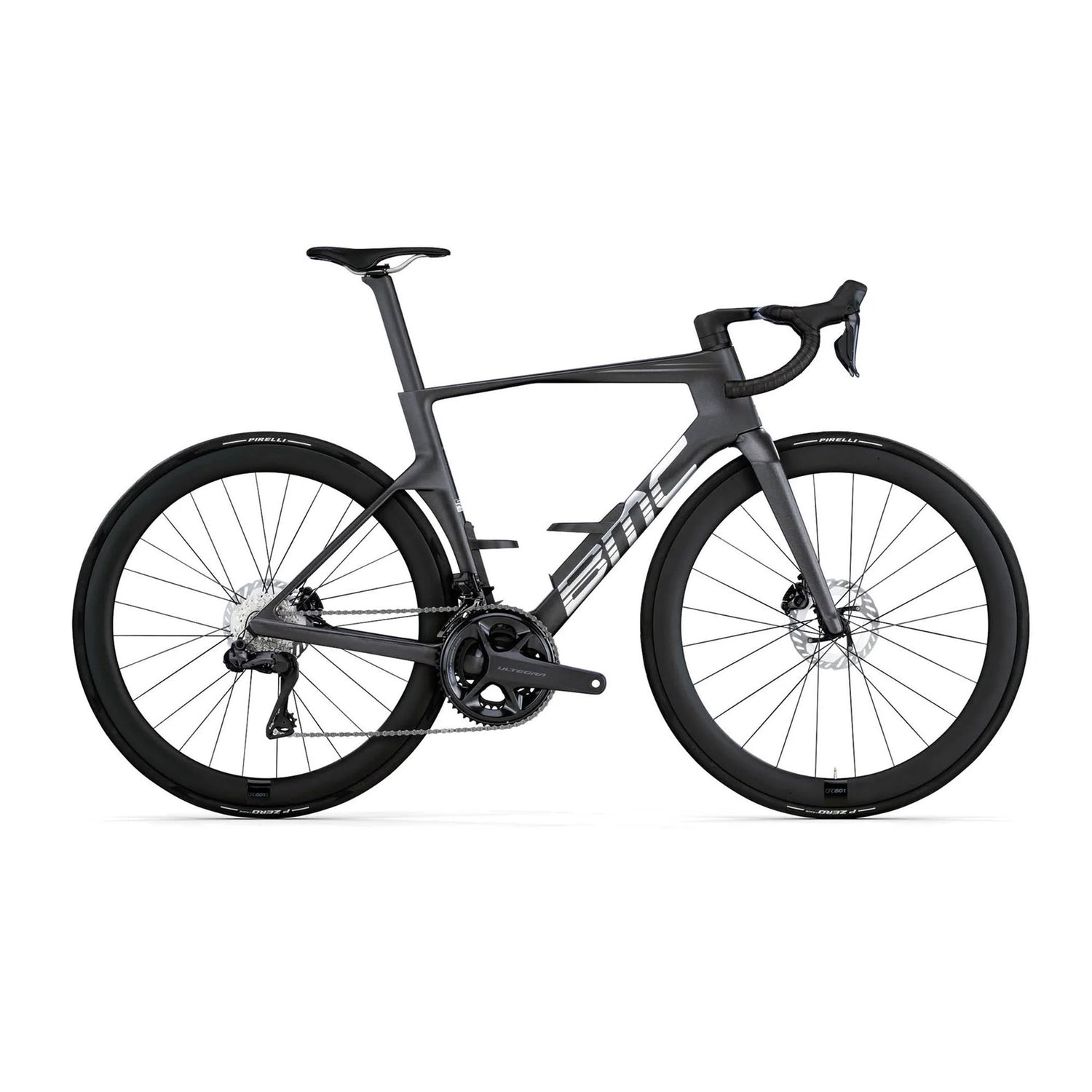

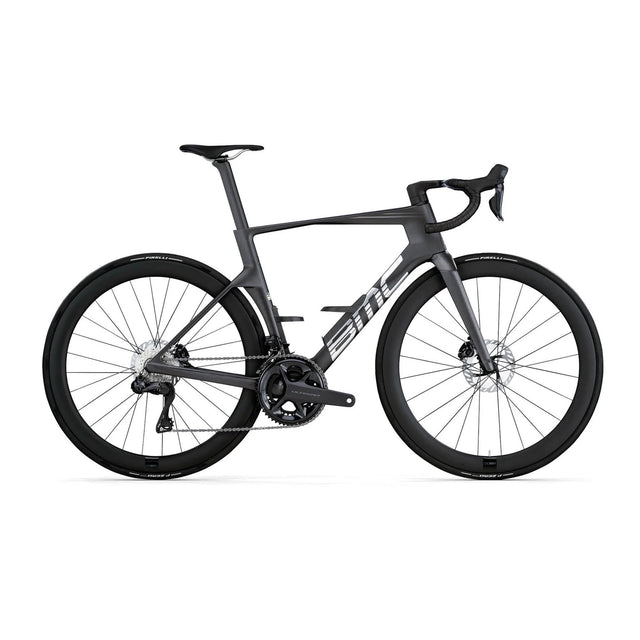

BMC Teammachine R 01 Four Bike Info
The BMC Teammachine R 01 Four embodies Swiss precision and Formula 1–inspired aerodynamics. Developed alongside Red Bull Advanced Technologies, this full-carbon road racer features an Ultegra Di2 drivetrain, integrated power meter, and state-of-the-art ICS2 cockpit system for pro-level speed and fit.
BMC Teammachine R 01 Four—Specs at a Glance
- Frame & Fork: 01 Premium Carbon with Aerocore shaping, stealth cable routing, Stealth Dropouts, and flat-mount disc compatibility :contentReference[oaicite:2]{index=2}
- Drivetrain: Shimano Ultegra Di2 with 4iiii precision power meter included :contentReference[oaicite:3]{index=3}
- Cockpit: ICS2 Integrated Cockpit—lightweight, stiff, and clean with device mounts :contentReference[oaicite:4]{index=4}
- Wheels & Tires: CRD‑501 carbon tubeless-ready wheels, 50 mm rim depth, equipped with Pirelli P Zero Race TLR 26 mm tires :contentReference[oaicite:5]{index=5}
- Fork & BB Design: Distinctive 'Halo' wide-stance fork and aerodynamically sculpted 'Mariana' bottom bracket optimize airflow :contentReference[oaicite:6]{index=6}
- Weight & Size Range: Approximately 7.5 kg (without pedals); available in sizes from 47 to 61 cm :contentReference[oaicite:7]{index=7}
Design Benefits
- Race-Ready Aero Performance: The Halo fork and Mariana BB reduce drag via CFD-tuned shaping :contentReference[oaicite:8]{index=8}
- Integrated Power: Comes with a precision power meter built-in—no add-ons needed :contentReference[oaicite:9]{index=9}
- Clean, Adaptive Cockpit: ICS2 system combines stiffness, mount versatility, and clean integration :contentReference[oaicite:10]{index=10}
- Pro-Level Build, Mid-Tier Price: High-end features like integrated cockpit and Di2 performance, available for under $10,000 :contentReference[oaicite:11]{index=11}
Final Take
The BMC Teammachine R 01 Four streamlines elite engineering into a race-focused, performance-driven package. With aerodynamic innovations, electronic precision, and integrated cockpit technology wrapped in Swiss craftsmanship, it’s built to win—with a power meter included and price set under $10K.
BMC Teammachine R 01 Four Bike - Specifications
Frame Material:
Teammachine R 01 Premium Carbon with Aerocore Design
Fork:
Teammachine R 01 Premium Carbon
Headset:
Integrated
Seatpost:
Teammachine R 01 Premium Carbon / 10mm Offset
Front Derailleur:
Shimano Ultegra Di2 R8150
Rear Derailleur:
Shimano Ultegra Di2 R8150
Crankset:
Shimano Ultegra R8100
Chainrings:
52/36
Bottom Bracket:
Shimano Press Fit SM-BB72
Brake Calipers:
Shimano Ultegra R8170 Hydraulic Disc
Rotors:
Shimano CL800 160mm
Shifters / Levers:
Shimano Ultegra Di2 R8170
Cassette:
Shimano Ultegra R8101 12-speed 11-30
Chain:
Shimano M8100 12-speed
Wheel - Front:
CR 50 SL Carbon / 50mm / Tubeless Compatible / 12x100mm
Wheel - Rear:
CR 50 SL Carbon / 50mm / Tubeless Compatible / 12x142mm
Stem:
ICS Carbon Aero / One-Piece Full Carbon Cockpit / 135mm drop / 77mm reach / 12.5-deg flare
Handlebar:
ICS Carbon Aero / One-Piece Full Carbon Cockpit / 135mm drop / 77mm reach / 12.5-deg flare
Saddle:
Selle Italia SLR Boost Superflow / TI316 Rail / 145mm
Tires:
Pirelli P-Zero Race TLR 700x26
Pedals:
Not Included
*Specifications are subject to change.
BMC Teammachine R 01 Four Bike Geometry
Size:
47
51
54
56
58
61
B. Seat Tube (c-t)
418
463
499
519
541
570
C. Top Tube Length
515
532
552
562
582
598
D. Head Tube Length
108
133
149
165
184
211
E. Chain Stay Length
410
410
410
410
410
410
F. BB Drop
69
69
69
69
69
69
G. Seat Tube Angle
74
74
73.5
73.5
73
73
H. Head Tube Angle
71.5
71.5
72.3
72.3
72.3
72.3
I. Stand Over Height
721
755
781
799
813
836
J. Wheel Size
700c
700c
700c
700c
700c
700c
K. Stack
504
528
548
563
582
608
L. Reach
368
378
387
393
402
409
Stem Length
90mm
100mm
100mm
110mm
110mm
120mm
Bar Width
36cm/42cm
36cm/42cm
36cm/42cm
36cm/42cm
36cm/42cm
36cm/42cm
M. Crank Length
170mm
170mm
172.5mm
172.5mm
175mm
175mm
