3T Ultra 2 Italia Frameset
Regular price
$4,59900
Unit price
-
RA price match promise
-
Pay later with
,
and
3T | SKU: 95FR11DAZ125S | Option:
Pickup available at RA Cycles - Brooklyn
Normalmente pronto em 24 horas
Questions about this product?
Questions about this product?
What size do I need?
What size do I need?
Schedule a Bike Fit in Walnut Creek, CA.
Schedule a Bike Fit in Brooklyn, NY. Please call 718-636-5242

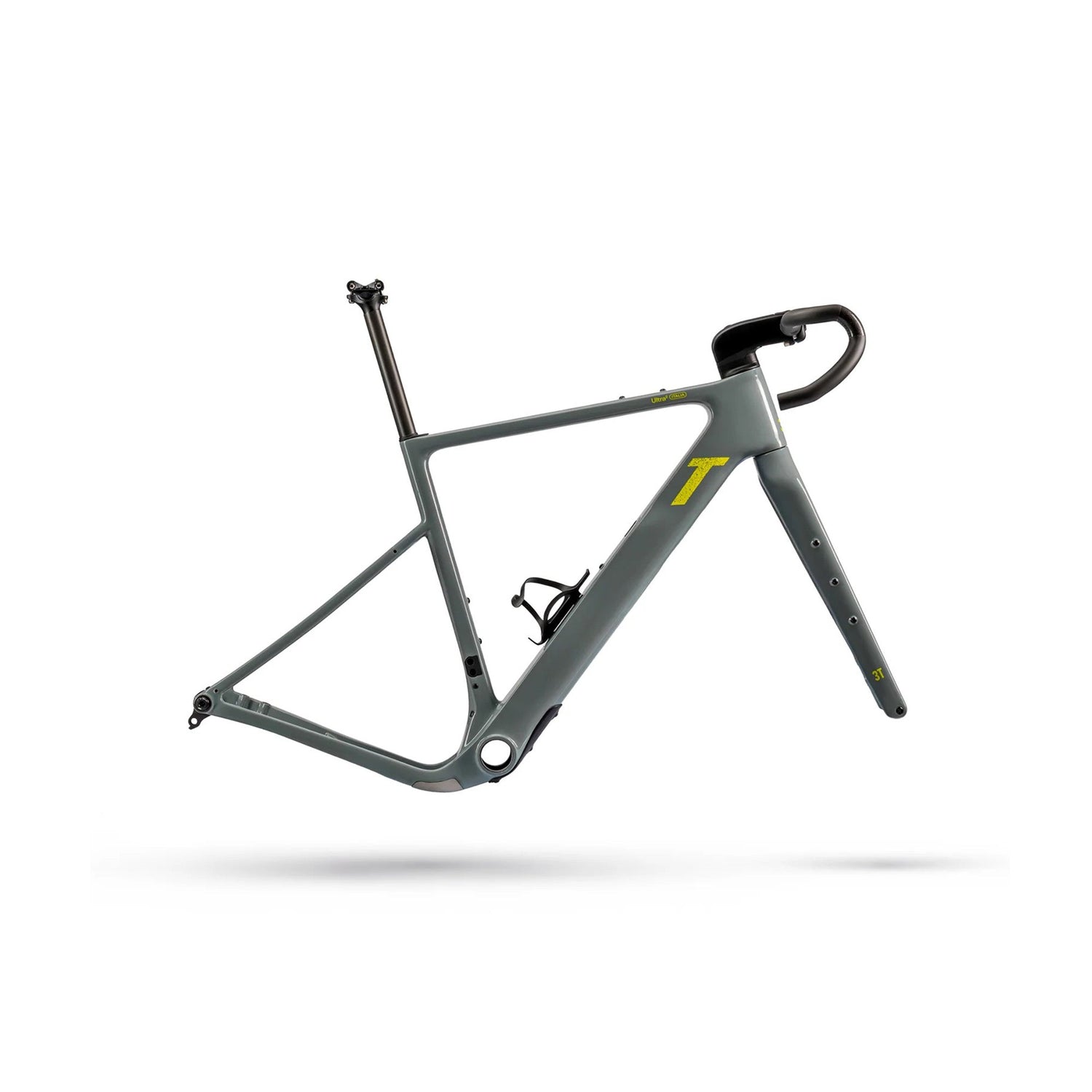

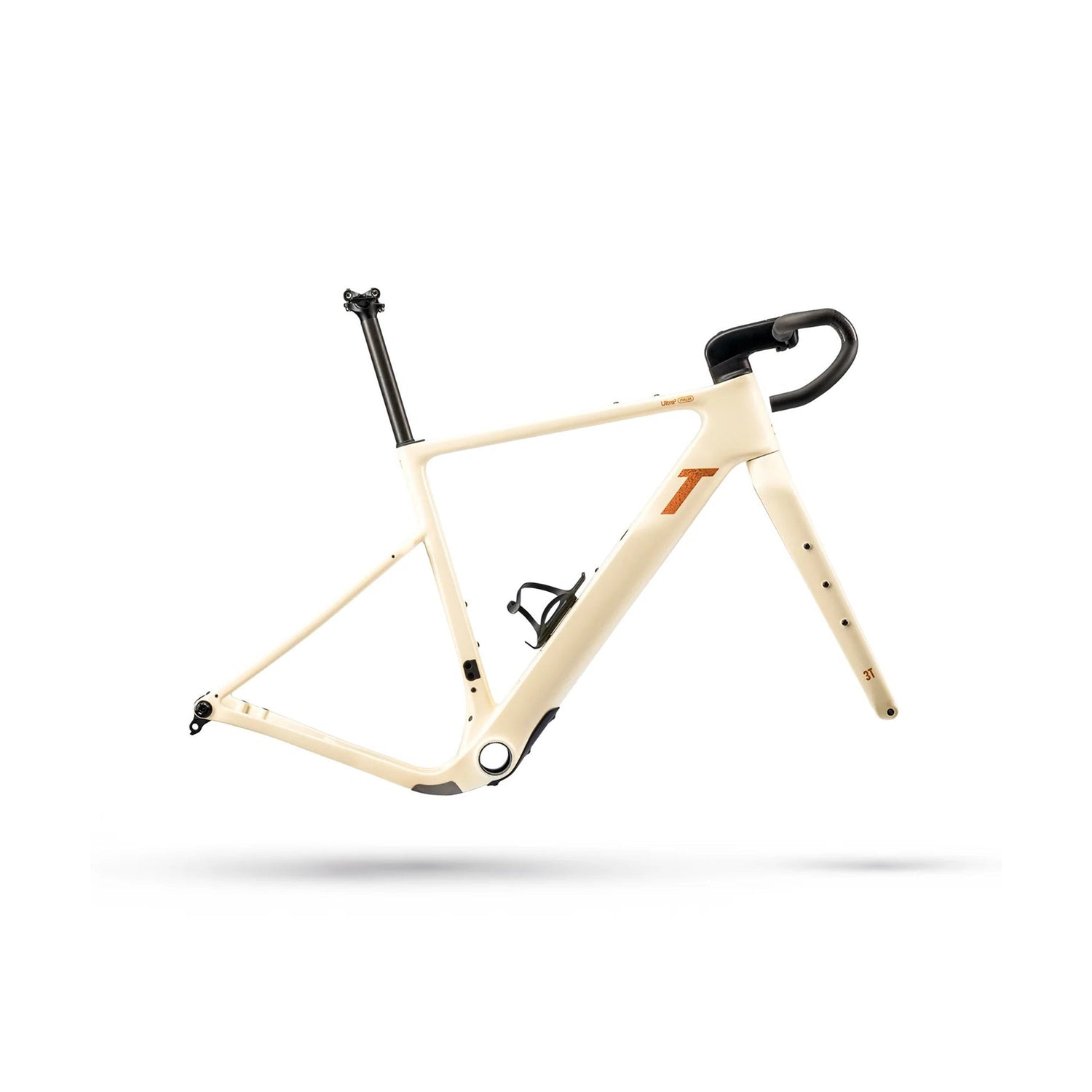

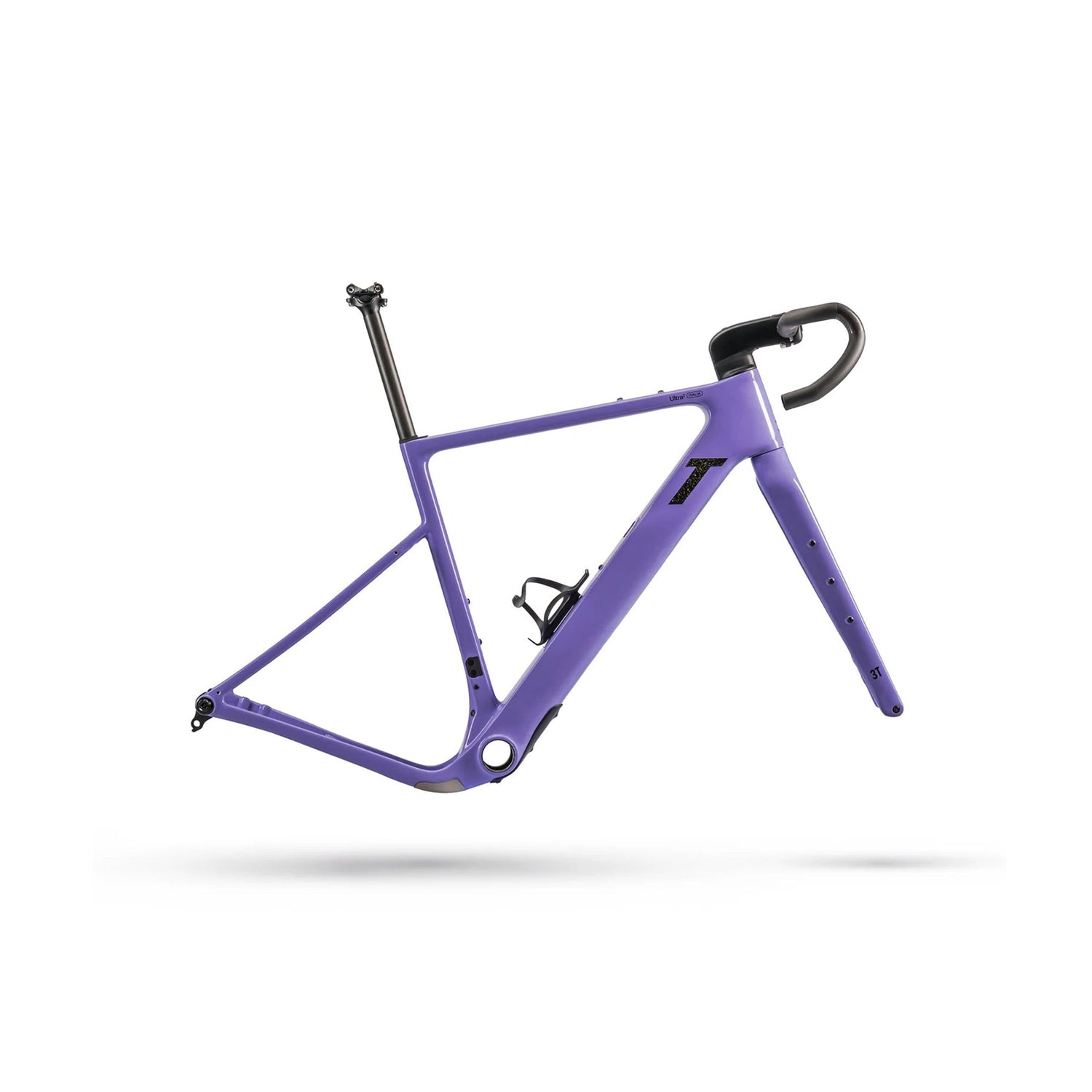

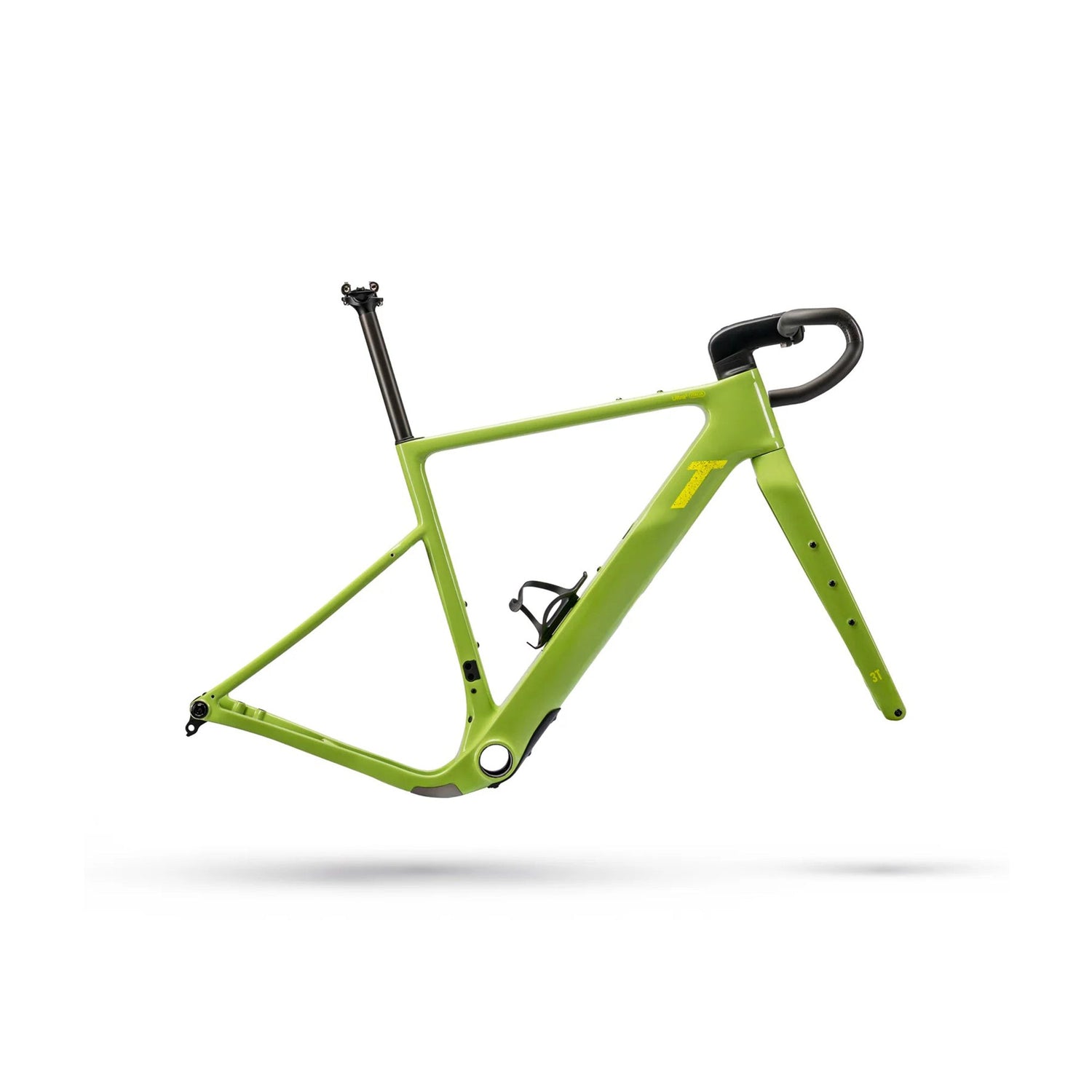

3T Ultra 2 Italia Frameset
Regular price
$4,59900
Unit price
* Product image may vary. Refer to the description for accurate details.
3T Ultra 2 Italia Frameset - Specifications
Frame Material:
FUSION CARBON: A hybrid construction combining 3T’s proprietary filament winding and Resin Transfer Moulding (RTM) technologies with selected elements of traditional carbon manufacturing
Fork:
3T Fango Ultra 2
Headset:
Sealed cartridge 52/40 45deg (OD52xID40xH7x45x45)
Seatpost:
3T Carbon 27.2mm round - Zero offset
Front Derailleur Type:
Braze-On Required
Bottom Bracket Type:
BB 386EVO Required
Rotors:
160mm only (not included)
Stem:
3T More 2
Handlebar:
3T Superghiaia Integrale LTD
Bar Tape:
3T Prendo Tough
Bottle Cages:
3T Carbon Side Load (right)
Brake Type:
Flat Mount Disc Required
Max Rider Weight:
242lbs (Rider and Equipment)
Axle Type:
12x100mm / 12x142mm Thru Axle
Bar Reach:
77mm
Bar Drop:
110mm
Max Tire Width:
57mm WAM (Width as Measured)
*Specifications are subject to change.
3T Ultra 2 Italia Frameset Geometry
Size:
S
M
L
XL
B. Seat Tube (c-t)
470
490
520
550
C. Top Tube Length
509
521
536
551
D. Head Tube Length
111
126
143
162
E. Chain Stay Length
437
437
437
437
F. BB Drop
76
76
76
76
G. Seat Tube Angle
73
73
73
73
H. Head Tube Angle
69
70.5
71.5
72
J. Wheel Size
700c
700c
700c
700c
K. Stack
560
580
600
620
L. Reach
360
368
376
384
Stem Length
80mm
90mm
100mm
110mm
Bar Width
40cm (hoods) / 47.8cm (drops)
40cm (hoods) / 47.8cm (drops)
42cm (hoods) / 49.9cm (drops)
42cm (hoods) / 49.9cm (drops)
