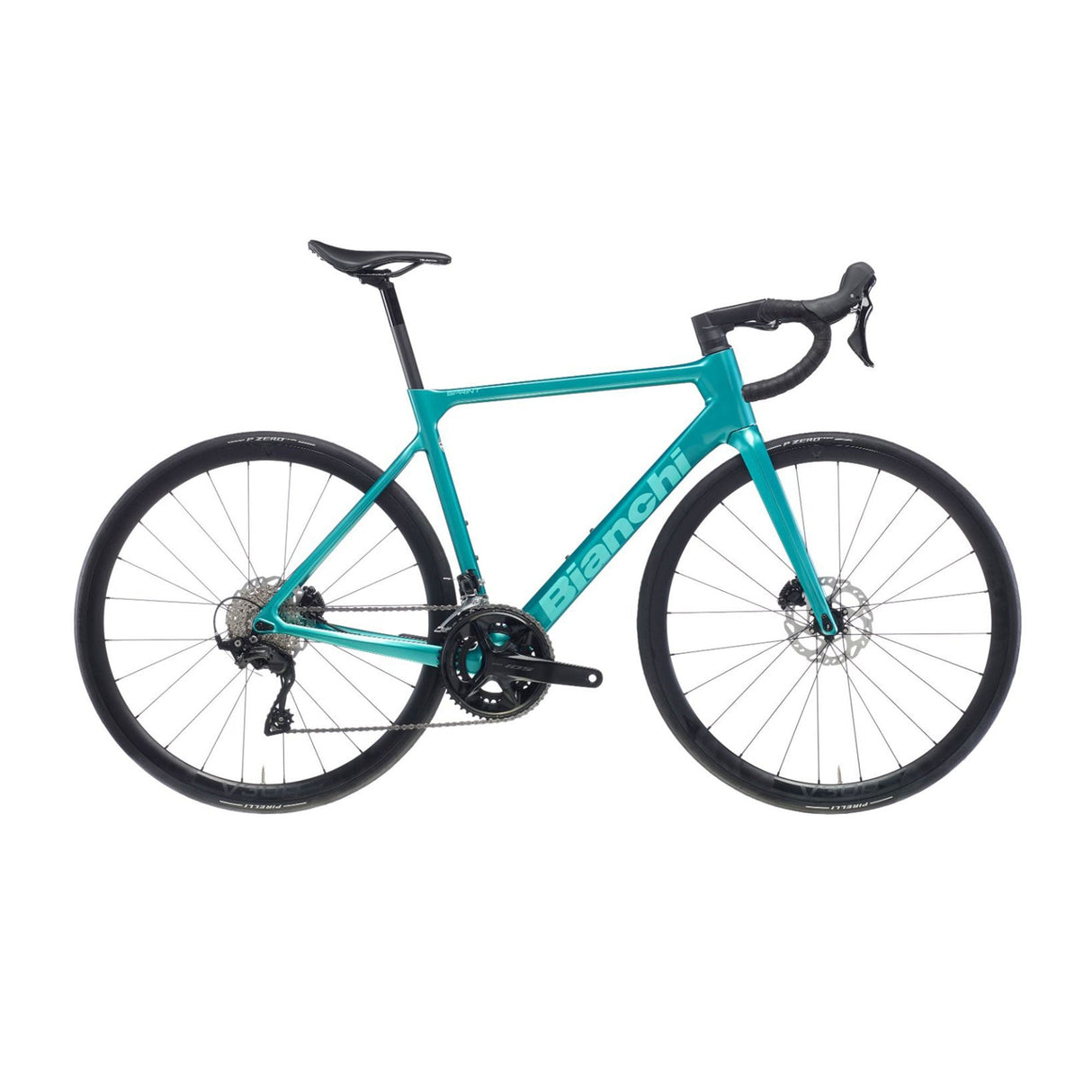

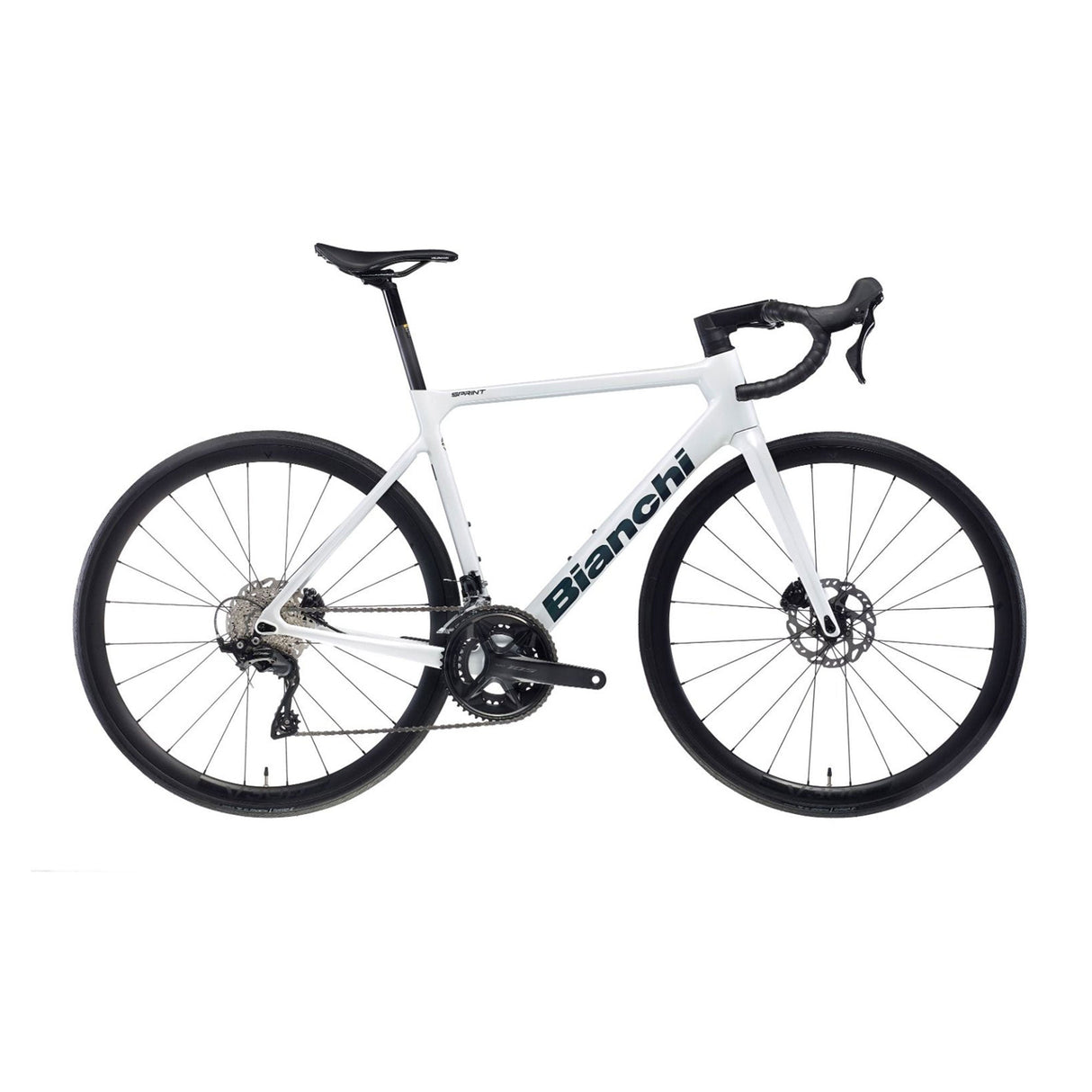

Bianchi Sprint 105 Bike


Regular price $3,00000

Color
Size

In Stock Ships in 1-2 weeks based on its location

Bianchi   |   SKU: YTBR5T59SX  |   Option: SX - CK16 / Graphite, 59cm

Pickup currently unavailable at RA Cycles - Brooklyn


Questions about this product?

What size do I need?

Get a digital fit assessment

Schedule a Bike Fit in Walnut Creek, CA.

Schedule a Bike Fit in Brooklyn, NY. Please call 718-636-5242


* Product image may vary. Refer to the description for accurate details.

Bianchi Sprint 105 Bike Info

The Bianchi Sprint 105 Bike occupies a specific and well-defined place in the road cycling world — a full carbon race machine that doesn't ask you to sacrifice comfort for speed, or weekday training for weekend ambition. Bianchi introduced the Sprint name more than half a century ago, and the current generation earns that lineage through a frame built to a higher standard than its price bracket typically demands. This is a road bike that makes you want to find a long climb and see what you're made of.

The frame is full monocoque carbon fiber — laid up and cured as a single continuous piece rather than bonded sections. That matters because joints are where frames compromise: they add weight, introduce micro-flex, and over time can become points of failure. A monocoque construction eliminates that entirely, transferring your effort directly into forward momentum with nothing lost in translation. The geometry leans race-oriented without being punishing — a reach and stack that puts you in an aggressive, aerodynamically efficient position, but with enough compliance in the carbon layup to keep your back intact after four hours in the saddle. The full carbon fork reinforces that balance, adding stiffness at the front end where you need it most while contributing to the Sprint's aerodynamic profile.

Internal cable routing runs throughout the frame, keeping the cockpit clean and protecting housing from rain, road debris, and the general abuse of year-round riding. Tire clearance reaches 700x32c — a genuinely wide window for a road bike with race intentions. That range gives you real flexibility: 25mm tires for criterium work, 28s for your standard club ride, 32s when the roads deteriorate. The Sprint doesn't commit you to a single riding identity, which is a meaningful distinction at this level. Paired with Shimano 105 Di2 12-speed electronic shifting, every gear change is precise, consistent, and effortless — the kind of drivetrain that stops being something you think about and just becomes part of how the bike moves.

Bianchi Sprint 105 Bike Specs at a Glance

  • Frame: Full monocoque carbon fiber
  • Fork: Full carbon, aerodynamic profile
  • Groupset: Shimano 105 12-speed mechanical
  • Brakes: Hydraulic disc
  • Tire Clearance: Up to 700x32c
  • Cable Routing: Internal
  • Axle Standard: Thru-axle (disc brake equipped)
  • Category: Performance road bike

Design Benefits

  1. Monocoque Carbon Construction: A single-piece carbon frame removes the bonded joints that compromise stiffness and add weight in lesser builds. The result is a direct, lively connection between your legs and the road — power goes where it's supposed to go, without the energy loss that undermines lesser frames on long climbs or hard accelerations.
  2. Hydraulic Disc Brakes: Disc brakes on a carbon road bike change how you approach descents and wet conditions. Modulation improves, stopping power stays consistent regardless of rim temperature or rain, and the thru-axle standard that accompanies disc setups adds torsional stiffness to the front and rear ends of the frame — a structural benefit that goes beyond braking performance alone.
  3. Generous Tire Clearance: 700x32c clearance is wide for a race-oriented road bike, and it extends the Sprint's usefulness across a broader range of riding. Wider tires run at lower pressures, which reduces road vibration and improves grip — a comfort and control benefit that compounds over longer distances and rougher surfaces.
  4. Internal Cable Routing: Clean routing isn't just an aesthetic choice. Housing that runs inside the frame is shielded from UV degradation, moisture, and grit — the conditions that cause cables to drag, shift inconsistently, and eventually fail. It's a detail that pays off quietly over the life of the bike.

Final Take

The Bianchi Sprint 105 is built for the rider who trains seriously, races occasionally, and wants a single bike capable of both — a carbon road bike with race geometry and the versatility to handle whatever the season demands. If you're ready to move beyond entry-level carbon and into a frame that rewards effort, the Sprint is a considered, well-executed choice.

Bianchi Sprint 105 Bike - Specifications

Frame Material:
Carbon Monocoque
Fork:
Full Carbon Aero
Headset:
ACROS & FSA for Internal Cable Routing
Seatpost:
Velomann Alloy / 15mm Offset
Front Derailleur:
Shimano 105 R7100
Rear Derailleur:
Shimano 105 R7100
Crankset:
Shimano 105 R7100
Bottom Bracket:
Shimano SM-BB72-41B
Brake Calipers:
Shimano 105 R7170 Hydraulic Disc
Rotors:
Shimano RT70 160mm
Shifters / Levers:
Shimano 105 R7120
Cassette:
Shimano 105 R7100 12-speed 11-34
Chain:
Shimano M7100 12-speed
Wheel - Front:
Velomann V30 Alloy Disc Brake / 12x100mm
Wheel - Rear:
Velomann V30 Alloy Disc Brake / 12x142mm
Stem:
Velomann Alloy
Handlebar:
Velomann Compact Alloy / 31.8mm
Saddle:
Velomann Seta
Tires:
Vittoria Rubino IV G2.0 700x25
Bar Tape:
Bianchi Cork
Pedals:
Not Included
Bar Reach:
80mm
Bar Drop:
130mm

*Specifications are subject to change.

Bianchi Sprint 105 Bike Geometry

Bianchi Sprint 105 Bike Geometry
Size:
47
50
53
55
57
59
61
B. Seat Tube (c-t)
420
450
480
500
520
540
560
C. Top Tube Length
515
525
535
550
560
575
585
D. Head Tube Length
105
110
125
140
155
175
195
E. Chain Stay Length
410
410
410
413
413
413
413
F. BB Drop
60
60
68
68
68
68
68
G. Seat Tube Angle
74.5
74.5
74
73.5
73.5
73
72.5
H. Head Tube Angle
70.5
71.5
72
73
73
73
73
J. Wheel Size
700c
700c
700c
700c
700c
700c
700c
K. Stack
497
505
529
545
561
580
599
L. Reach
377
383
384
388
393
396
397
Stem Length
90mm
90mm
100mm
110mm
110mm
120mm
120mm
Bar Width
40cm
40cm
40cm
42cm
42cm
42cm
44cm
M. Crank Length
170mm
170mm
170mm
172.5mm
172.5mm
172.5mm
175mm
